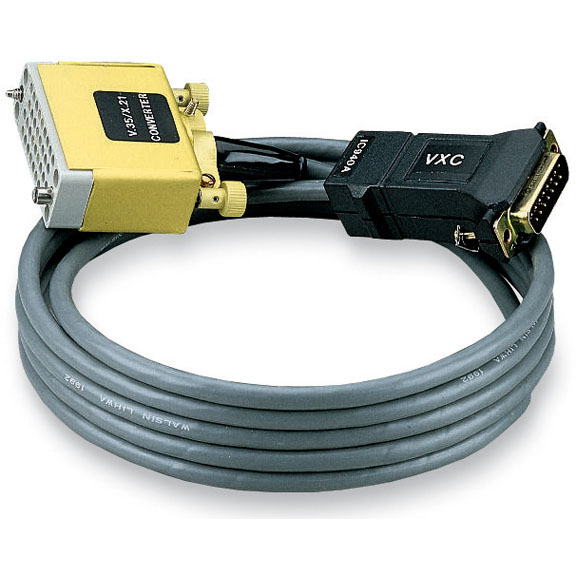

V.35 DTE to X.21 DCE Converter, V.35 Female/X.21 Male

Convert high-speed V.35 to X.21 or X.21 to V.35.

IC940A-F

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Select connectors in the appropriate combination of DTE/DCE and genders.
  • This converter is transparent to baud rate and protocols—no adjustments are required.

  • Description

    V.35 DTE to X.21 DCE Converter, V.35 Female/X.21 Male


    Quick Facts

  • Select connectors in the appropriate combination of DTE/DCE and genders.
  • This converter is transparent to baud rate and protocols—no adjustments are required.

  • Further Details

  • Connect directly to your DTE and DCE equipment.
  • Complete with connectors and a 2-meter (6.5-ft.) cable for easy installation.
  • Fast setup. No jumpers. No switches. No configuration necessary.
  • Just plug the converter into your V.35 and X.21 devices. You can do it in minutes!
  • Convert both the physical and electrical specifications of a V.35 device to those of an X.21 device.

  • Make the most of your existing V.35 and X.21 equipment and networks with this miniature interface converter.

    NOTE: The use of extra cables is not recommended.


    Technical Specifications for V.35 DTE to X.21 DCE Converter, V.35 Female/X.21 Male:

    Speed (Maximum) 2.048 Mbps
    Transmission Format Synchronous, transparent to protocol
    Transmission Mode Full- or half-duplex
    CE Approval Yes
    Connectors (1) M/34 (F), (1) DB15 M
    Power From the interface
    Size 0.9"H x 2.2"W x 3.5"D (2.3 x 5.6 x 8.9 cm), plus 2-m (6.5-ft.) cable
    Weight 0.9 lb. (0.4 kg)
    NOTE: The use of extra cables is not recommended.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for V.35 DTE to X.21 DCE Converter, V.35 Female/X.21 Male:
