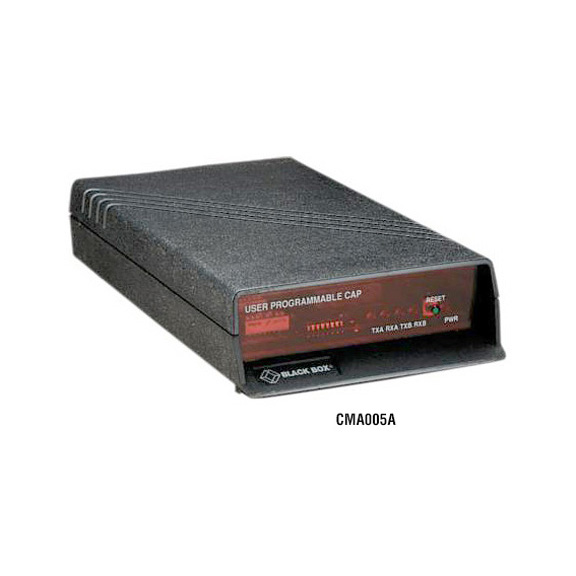

click photo to enlarge

CMA005A

Photo may show similar product

Other views

User-Programmable CAP

Program your own character/character-string conversions.

CMA005A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Store and modify your custom translation table on the User-Programmable CAP or on your PC.
  • Download the same translation table to any number of User-Programmable CAPs for programming.


  • Description

    User-Programmable CAP, Standalone


    Quick Facts

  • Store and modify your custom translation table on the User-Programmable CAP or on your PC.
  • Download the same translation table to any number of User-Programmable CAPs for programming.

  • Further Details

    With the BLACK BOX® User-Programmable CAP, you can use just one User-Programmable CAP for any number of single- or multiple-character conversions. Store your programs in the 8 KB nonvolatile RAM, or upload or download them to or from your PC for storage, editing, or further downloading to as many User-Programmable CAPs as you need.

    It's perfect for any application in which you need to change a character or string. Convert the control sequence between your PC and printer when you need to change fonts. Program it to remove control-character sequences inserted into wire-service feeds, such as from API—and more!


    Technical Specifications for User-Programmable CAP:

    Controls Reset
    Memory 32 KB RAM
    Protocol Async only
    Speed 45.5 bps to 38.4 kbps
    Translations Maximum memory available for translations: 8 KB;
    Match strings or substitution strings: Up to 256 bytes each
    CE Approval CMA005A
    Connectors (2) DB9 F DTE
    Power 115 VAC, 60 Hz, 95 mA, 11 watts
    Size 1.8"H x 5.5"W x 8.5"D (4.6 x 14 x 21.6 cm)
    Weight 1 lb. (0.5 kg)
    These products work with:
  • 12-Card Rack for CAP (RM010-CAP)
  • 9-Pin to DTE Cable (EHN023-0010)
  • 9-Pin to AT Cable (EHM025-0010)
  • 9-Pin to Modem Cable (EHM024-0010)
  • DB9 Extension Cable (with EMI/RFI Hoods) (EDH12H)
  • AT Adapter (Serial) DB9 Male to DB25 Female (FA521A-R3)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
