Networking > Switches

click photo to enlarge

LPB1308A

Photo may show similar product

Other views

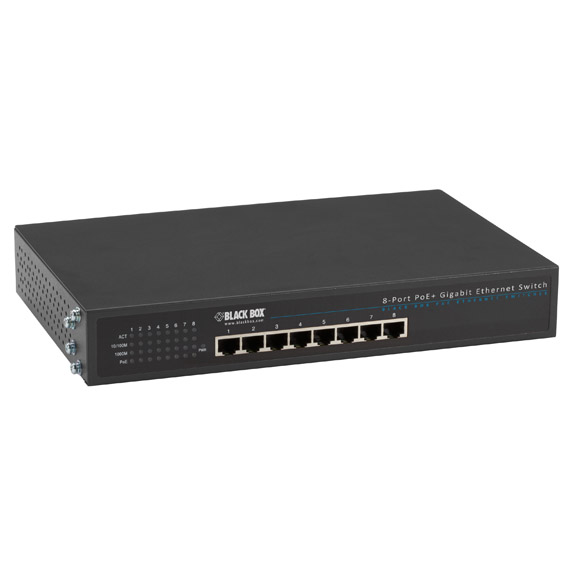

Unmanaged 802.3at PoE Gigabit Ethernet Switch, 8-Port

Add eight high-powered PoE devices to your Gigabit LAN.

LPB1308A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Add up to eight high-powered VoIP phones, wireless access points, security cameras, terminals, and other PoE devices to your existing 10/100/1000 Ethernet network.
  • Features eight shielded PoE ports.
  • IEEE 802.3at compliant.
  • Backwards compatible with 802.3af PoE.

  • Description

    Unmanaged 802.3at PoE Gigabit Ethernet Switch, 8-Port


    Quick Facts

  • Add up to eight high-powered VoIP phones, wireless access points, security cameras, terminals, and other PoE devices to your existing 10/100/1000 Ethernet network.
  • Features eight shielded PoE ports.
  • IEEE 802.3at compliant.
  • Backwards compatible with 802.3af PoE.

  • Further Details

  • Powers devices directly through your UTP Ethernet cable.
  • Provides 30 watts of power per port or a total of 200 watts.
  • Automatically detects and protects PoE devices.
  • Supports 10/100/1000 auto-detection and half-/full-duplex operation.
  • Includes a rackmount kit.


  • Technical Specifications for Unmanaged 802.3at PoE Gigabit Ethernet Switch, 8-Port :

    Cable Requirements — CAT5e/6/7 UTP and STP cable.
    Environmental — Temperature: +14 to +113° F (-10 to +45° C)
    Indicators — LEDs: Power, 10/100/1000, Link/Act, PoE
    Standards —IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-T; IEEE 802.3ab 1000BASE-T; IEEE 802.3at, IEEE 802.3af Power over Ethernet
    CE Approval —Yes
    RoHS—Yes
    Connectors —Shielded RJ-45
    Power — 100–240 VAC, 50/60 Hz; 802.3at 30 watts per port;
    Total available power: 200 watts;
    Size — 1.7"H x 11.1"W x 7.3"D (4.4 x 18.5 x 28 cm)
    Weight — 5.1 lb. (2.3 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
