Networking > Switches

click photo to enlarge

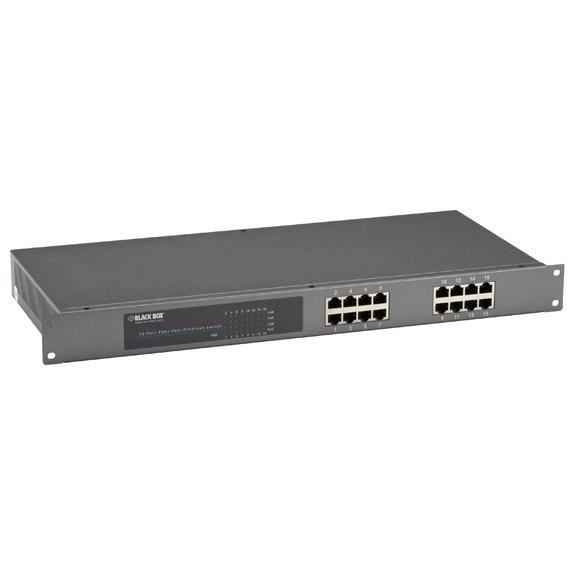

LPB316A

Photo may show similar product

Other views

Unmanaged 802.3at PoE Ethernet Switch, 16-Port

Add up to 16 PoE devices to your existing LAN.

LPB316A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Add up to 16 VoIP phones, wireless access points, security cameras, and other PoE devices to your existing 10/100 Ethernet network.
  • IEEE 802.3at compliant with 25.5 watts of power per port for a total of 408 watts.

  • Description

    Unmanaged 802.3at PoE Ethernet Switch, 16-Port


    Quick Facts

  • Add up to 16 VoIP phones, wireless access points, security cameras, and other PoE devices to your existing 10/100 Ethernet network.
  • IEEE 802.3at compliant with 25.5 watts of power per port for a total of 408 watts.

  • Further Details

  • Powers devices directly through your LAN cables.
  • Eliminate the need to install power outlets.
  • Automatically detects PoE devices.
  • Provides 10/100 auto-detection and half-/full-duplex operation.
  • Also supports Auto MDI/MDI-X on all ports.
  • LEDs provide status information.
  • Every port supports simultaneious 200-Mbps rates in full-duplex mode for smooth operations.
  • Transmit over CAT5e/6/7 UTP and STP cable.


  • Technical Specifications for Unmanaged 802.3at PoE Ethernet Switch, 16-Port :

    Buffer Memory —1.625 MB
    Environmental — Temperature: Operating: +32 to +140° F (0 to +60° C);
    Storage: -4° to +194° F (-20 to +90° C);
    Humidity: 10 to 90% noncondensing
    Filtering/Forwarding Rates — 10-Mbps port: 14,880 pps;
    100-Mbps port: 148,800 pps
    Indicators — Power; Per Port: Link/Act, PoE Act/Status
    MAC Address —4K
    Standards —IEEE 802.3 10BASE-T; IEEE-802.3u 100BASE-T; IEEE-802.3af Power over Ethernet; IEEE 802/.3x Flow Control
    Transmission Method —Store and forward
    CE Approval —Yes
    RoHS—Yes
    Connectors — (16) RJ-45
    Power — 100–240 VAC, 50/60 Hz; 802.3at 25.5 watts per port; 16 ports at full 25.5 W output supported to 408 W maximum
    Size — 1.7"H x 17.3"W x 8.6"D (4.4 x 44 x 22 cm)
    Weight — 8.4 lb. (3.8 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Unmanaged 802.3at PoE Ethernet Switch, 16-Port :

    Manuals

    • Unmanaged 802.3at PoE Ethernet Switch, 16-Port User Manual
      User Manual for Unmanaged 802.3at PoE Ethernet Switch, 16-Port (1)

    Black Box Explains


    Connect your Unmanaged 802.3at PoE Ethernet Switch, 16-Port with:

    Accessory: LPB201A

    PoE L2 Managed 10/100 Switch with (2) Dual-Media SFP Ports, (24) 10BASE-T/100BASE-TX Ports

    PoE L2 Managed 10/100 Switch with (2) Dual-Media SFP Ports, (24) 10BASE-T/100BASE-TX Ports and (24) 10BASE-T/100BASE-TX Ports

    Accessory: LPB4008A

    PoE L2 Managed Gigabit Switch with (6) 1000BASE-TX Ports, (2) Dual-Media RJ-45/SFP Ports

    PoE L2 Managed Gigabit Switch with (6) 1000BASE-TX Ports, (2) Dual-Media RJ-45/SFP Ports

    Accessory: LPBG716A

    Gigabit PSE Web Smart Switch, 16-Port

    Gigabit PSE Web Smart Switch, 16-Port

    Accessory: LPB708A

    10/100 PSE Web Smart Switch, 8-Port

    10/100 PSE Web Smart Switch, 8-Port

    Accessory: LPD100A

    PoE PD Switch, (5) 10/100BASE-T

    PoE PD Switch, (5) 10/100BASE-T
