Networking > PoE

click photo to enlarge

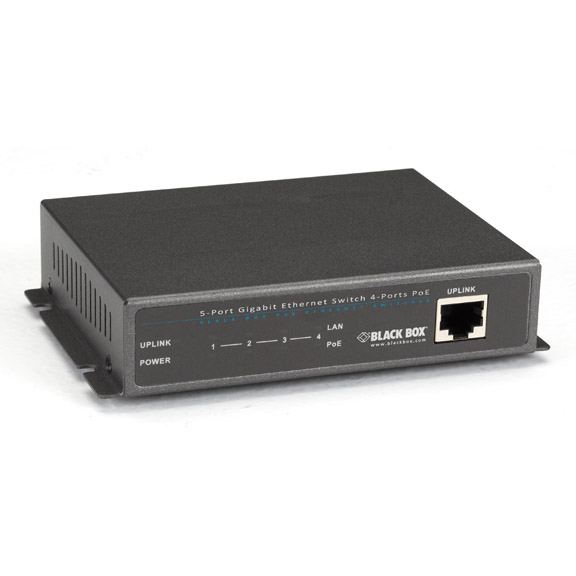

LPB1205A

Photo may show similar product

Other views

Unmanaged 802.3af PoE Gigabit Ethernet Switch, 5-Port

The easy way to add four PoE devices to your existing 10/100/1000 LAN.

LPB1205A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Add up to four VoIP phones, wireless access points, security cameras, and other PoE devices to network.
  • Features four PoE ports and one uplink port.
  • IEEE 802.3af compliant providing up to 15.4 watts of power per PoE port.

  • Description

    Unmanaged 802.3af PoE Gigabit Ethernet Switch, 5-Port


    Quick Facts

  • Add up to four VoIP phones, wireless access points, security cameras, and other PoE devices to network.
  • Features four PoE ports and one uplink port.
  • IEEE 802.3af compliant providing up to 15.4 watts of power per PoE port.

  • Further Details

  • Powers PoE devices directly through your Ethernet cable.
  • Automatically detects PoE devices.
  • All ports support 10-/100-/1000-Mbps Ethernet with auto-detection for speed and duplex.
  • LEDs provide instant status updates.


  • Technical Specifications for Unmanaged 802.3af PoE Gigabit Ethernet Switch, 5-Port:

    Buffer —104 KB
    Cable Requirements — CAT5e/6/7 UTP and STP cable
    Environmental — Temperature: 32 to 122° F (0 to 50° C);
    Humidity: 10 to 90% noncondensing
    Filtering/Forwarding Rates — 10-Mbps port: 14,880 pps;
    100-Mbps port: 148,800 pps;
    1000-Mbps port: 1,488,000 pps
    MAC Addresses —1K
    PoE Spec — 802.3af; PD classification identity; PoE overcurrent protection; PoE circuit-sorting protection
    Standards —IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-T; IEEE 802.3ab 1000BASE-T; IEEE 802.3af Power over Ethernet
    Transmission Method —Store and forward
    CE Approval —Yes
    RoHS—Yes
    Connectors — (5) RJ-45
    Indicators — LEDs: Power, Uplink, LAN and PoE: Ports 1–4
    Power — 100–240 VAC, 50/60 Hz, external adapter; 802.3af 15.4 watts per port;
    Total available power: 61.4 watts
    Size — 1.1"H x 4.7"W x 3.5"D (2.8 x 9 x 12 cm)
    Weight — 2.6 lb. (1.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Unmanaged 802.3af PoE Gigabit Ethernet Switch, 5-Port:

    Manuals

    • Unmanaged 802.3af PoE Gigabit Ethernet Switch, 5-Port User Manual
      User Manual for Unmanaged 802.3af PoE Gigabit Ethernet Switch, 5-Port (1)
