Video & Multimedia > Extenders

click photo to enlarge

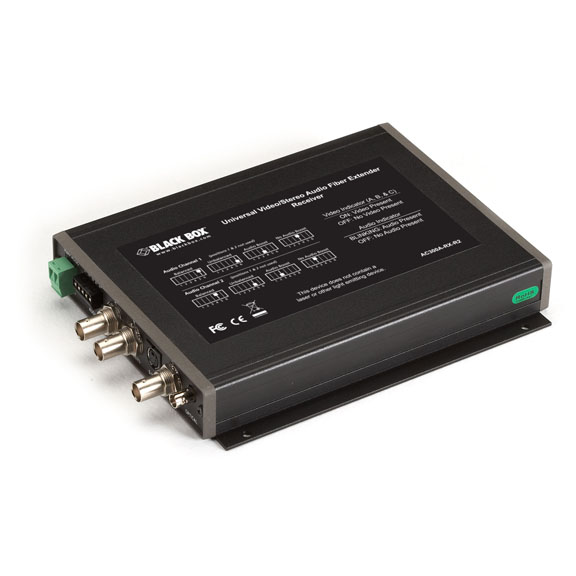

AC300A-RX-R2

Photo may show similar product

Other views

  • AC300A-RX-R2
  • AC300A-RX-R2
  • AC300A-RX-R2

Universal Video/Stereo Audio Fiber Extender Receiver

Use fiber to extend high-quality HD video and audio in interference-heavy areas!

AC300A-RX-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Ensure the quality of video and audio sent in noisy areas—use fiber!
  • Extends 1080i and 720p Component video and stereo audio.
  • Or transmit S-Video and Composite video/stereo audio, or three Composite video/stereo audio channels.


    • Description

    Universal Video/Stereo Audio Fiber Extender Receiver


    Quick Facts

  • Ensure the quality of video and audio sent in noisy areas—use fiber!
  • Extends 1080i and 720p Component video and stereo audio.
  • Or transmit S-Video and Composite video/stereo audio, or three Composite video/stereo audio channels.

    • Further Details

  • Uses just a single fiber for video and audio extensions.
  • All digital processing provides excellent image quality and sound, and noise-free transmission.
  • Supports both multimode and single-mode fiber—distances up to 40 kilometers (24.8 mi.)*.
  • Easy to install, DIP switch selector for operation mode.
  • Features 30-MHz Component video bandwidth, and 15-MHz Composite and S-Video bandwidth per channel.
  • Two stereo audio channels give you crystal-clear fidelity.
  • Ideal for professional audio/video applications, POS displays, kiosks, and more.
  • Works with all analog and digital video equipment.
  • Power supply enables operation from both AC and DC sources.

    This updated digital fiber extender system provides optimum images and crystal-clear sound.

    Just pair this Universal Video/Stereo Audio Fiber Extender Receiver nd its compatible transmitter (AC300A-TX-R2) and begin transmitting high-quality HD or SD Component video along with stereo audio over a single fiber.

    It’s ideal for:
    • Security video applications, where you can't run the risk of the wiring being tapped.
    • Extensions in process control, utility, engineering, and factory settings with EMI/RFI interference.
    • Professional audio/video broadcast applications.
    • Digital signage communications in corporate, factory, and retail areas.
    • Education distance learning, training, and large campus applications.
    • Critical government and military command center deployments.
    • Videoconferencing applications.

    No matter what type of video equipment you have, this extender works for you. It supports three video formats: Component video, S-Video, and Composite video. The receiver automatically detects the video type sent and makes the correct baseband outputs active.

    A convenient switch selector enables you to set the mode of operation. For Component video, the extender supports both SD (720p) and HD (1080i) transmissions along with stereo audio.

    Or you can extend S-Video and Composite Video along with stereo audio, or three channels of Composite Video along with stereo audio—all over a single fiber.

    Use it with standard equipment, such as TVs, monitors, PCs, VCRs, and more, as well as with advanced equipment, such as DVD players with progressive scan, HDTVs, and more.

    Superior images
    You’ll be assured of pristine images because of the digital transmission. Traditional analog transmission technology often results in poor image quality. But the all-digital processing technology in this system provides superior images—with no equalization or deskewing required!

    The Universal Video/Stereo Audio Fiber Extender supports 30-MHz Component video bandwidth, and 15-MHz Composite video and S-Video bandwidth per channel.

    In addition, the extender’s video channel is compatible with NTSC, PAL, or SECAM standards.

    Superior sound
    Plus, you get two stereo audio channels, which provide crystal-clear fidelity for the Universal Video/Stereo Audio Fiber Extender’s transmissions. It’s all because of the system’s all-digital processing technology.

    The two user-configurable audio channels can be set for balanced or unbalanced inputs and outputs. Also, it has a switch-selectable audio output gain boost of +0 dB or +6 dB.

    Fiber flexibility
    The Universal Video/Stereo Audio Fiber Extender works with both multimode and single-mode fiber (with an operating wavelength of 1310 nm), making it easy to integrate into your existing fiber wiring system.

    For distances up to 1.3 kilometers (0.8 mi.), use multimode fiber; for transmissions as far as 40 kilometers (24.8 mi.), use single-mode fiber*.

    What’s more, by using a single fiber core for your extensions, you can reduce the amount of cabling in your installation. There’s no need to run separate runs for the different video signals and audio. .

    What’s included:
  • Receiver unit
  • 12-ft. (3.6-m) Composite video cable, BNC/BNC
  • 6-ft. (1.8-m) S-Video cable, 4-pin mini DIN male to (2) BNC
  • 10-ft. (3.0-m) Component video cable, (3) BNC to (3) RCA plugs
  • 10-ft. (3.0-m) stereo audio cable, (4) tin-lead-shielded twisted pairs to (2) RCA plugs
  • BNC female to RCA male adapter
  • Universal power supply

    NOTE: A transmitter and receiver are both required for operation.

    This product works with:
  • Universal Video/Stereo Audio Fiber Extender Transmitter (AC300A-TX-R2)
  • Premium Ceramic Multimode Fiber Optic Cable, ST–ST (EFN110-STST)
  • Single-Mode Duplex Fiber Optic Cable, ST–ST (EFN5009)
    Questions? Contact our FREE Tech Support.


    • Technical Specifications for Universal Video/Stereo Audio Fiber Extender Receiver:

    Audio Bandwidth — 20 Hz to 20 kHz
    Audio Bits Per Sample/Sampling Rate — 24 bits, 64 kHz
    Audio to Video Differential Delay (Skew) — < 300 µsec
    Video Differential Gain — 0.7%
    Video Differential Phase — 0.5º
    Video Impedance — Input/output: 75 ohms, nominal
    Video Signal-to-Noise Ratio — 60 dB (CCIR weighted)
    Video Y/C Gain — < 5 ns
    Distance (Maximum)* — 1310-nm multimode: 1.3 km (0.8 mi.);
    1310-nm single-mode: 40 km (24.8 mi.)
    Video Frequency Response — Composite video, S-Video: 15 MHz (-3 dB);
    Component video: Y: 30 MHz (-3 dB);
    PrPb: 15 MHz (-3 dB)
    CE Approval — Yes
    RoHS — Yes
    Connectors — Component/Composite video: (3) BNC;
    S-Video: (1) 4-pin mini DIN F;
    Audio: (1) screw terminal block;
    Fiber: (1) ST®;
    Power: (1) terminal block
    Indicators — LEDs: Power, Video, Audio
    Power — Input: 100–250 VAC, 50–60 Hz, autosensing, external;
    Output: 9–24 V AC or DC, 4.5 W
    Size — 1.2"H x 6.5"W x 8"D (3 x 16.5 x 20.3 cm)
    Weight — 1 lb. (0.5 kg)

    * Distance specifications are approximate and are not guaranteed.
    This product works with:
  • Universal Video/Stereo Audio Fiber Extender Transmitter (AC300A-TX-R2)
  • Premium Ceramic Multimode Fiber Optic Cable, ST–ST (EFN110-STST)
  • Single-Mode Duplex Fiber Optic Cable, ST–ST (EFN5009)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    • Resources for Universal Video/Stereo Audio Fiber Extender Receiver:

    Manuals

    • Universal Video/Stereo Audio Fiber Extender Manual
      Manual for the AC300A-RX-R2 and AC300A-TX-R2.
      httpftp

    Application Diagrams


    Connect your Universal Video/Stereo Audio Fiber Extender Receiver with:

    Accessory: EFN110-001M-STST

    ST–ST, Duplex, Riser, 1-m (3.2-ft.)

    Premium Ceramic, Multimode, 62-5-Micron Fiber Optic Patch Cables, ST–ST, Duplex, Riser, 1-m (3.2-ft.)

    » more info

    Accessory: AC300A-TX-R2

    Universal Video/Stereo Audio Fiber Extender Transmitter

    Universal Video/Stereo Audio Fiber Extender Transmitter

    » more info

    Accessory: EFN5009

    ST–ST, PVC, Custom Lengths

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, ST–ST, PVC, Custom Lengths

    » more info
