Cabinets & Racks > Full Size IT Cabinets

click photo to enlarge

RM8048A-R2

Photo may show similar product

Other views

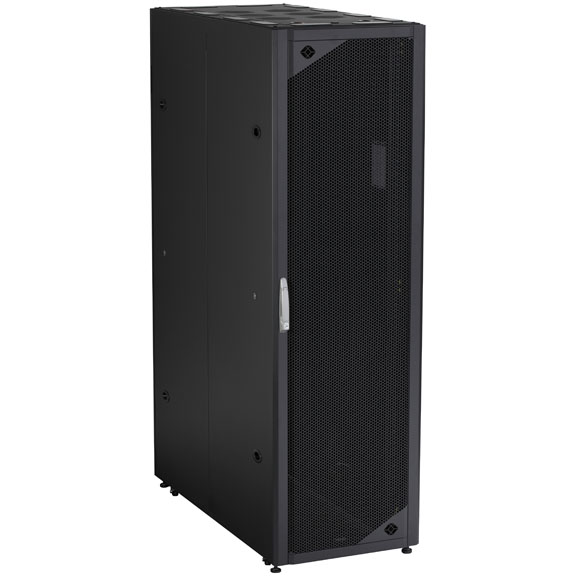

Universal Server Cabinet, 42U, 48"D

The tough, easy-access server cabinet designed to maximize airflow.

RM8048A-R2

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Weight capacity of 2640 pounds.
  • Constructed of welded steel.
  • Generous 48" depth accommodates your deepest servers plus cabling and power.
  • Ideal for high-density blade server installations.
  • Perforated front and rear doors plus a vented top panel provide optimum ventilation.
  • Guaranteed for life!

  • Description

    Universal Server Cabinet, 42U, 48"D


    Quick Facts

  • Weight capacity of 2640 pounds.
  • Constructed of welded steel.
  • Generous 48" depth accommodates your deepest servers plus cabling and power.
  • Ideal for high-density blade server installations.
  • Perforated front and rear doors plus a vented top panel provide optimum ventilation.
  • Guaranteed for life!

  • Further Details

  • The door and side panel hinges have been redesigned for easy installation and removal.
  • Rear vertical PDU mount is wider to provide more space for PDU mounting.
  • Add an optional fan tray to increase ventilation.
  • Rear door is split for easy access.
  • Quick-release solid side panels provide instant access to components.
  • Heavy-duty casters and leveling feet are included.
  • Front door features a key-locked, double-handle lock.
  • Rear door, side panels, and top panel are also key locked.
  • Protective grounding provisions.
  • Also available in a 42" deep model.


  • So cool.
    The cabinet is specifically designed to dissipate the heat generated by high-density installations. The mesh front and rear doors feature a unique hexagonal pattern that provides the maximum ventilation per square inch with up to 80% perforated area. The top panel is vented for still more airflow.

    Add the optional rackmount fan tray for additional ventilation within the cabinet.

    Elbow room.
    The Universal Server Cabinet is extra-deep at 48 inches—so there's plenty of space for even the largest servers plus room for cables, power, and airflow.

    Vertical and multidirectional cable channels make routing cable easy. Because the cabling is top to bottom and front to rear, you don't waste valuable rackmounting or access space.

    Heavy lifter.
    The Universal Server Cabinet stands up to the heavy loads imposed by very-high-density installations. Its exceptionally stable welded steel construction provides a load rating of up to 2640 pounds. Use the included extension plinth to fasten the cabinet to the floor for extra stability.

    Locked up tight.
    The Universal Server Cabinet is secure, too. The front door, rear door, side panels, and top panel are all lockable. Keeping your equipment secured and limiting access to it is as important as making sure the enclosure environment is the right one.

    Universal storage.
    The standard 19" rails with M6 holes are ideal for mounting regular servers and blade servers from leading vendors such as Apple®, Dell®, HP®, IBM®, and Sun®. For convenience, rails are marked to indicate rack units. A grounding kit is included.

    Split Side Panels.
    The innovative split side panel design dramatically reduces the space required to open the side panels to enable either equipment installation or maintenance. The design also makes handling of the side panels easier on these deep cabinets.


    What's included:
  • (1) cabinet
  • (4) heavy-duty casters
  • (4) leveling feet
  • (1) grounding kit
  • (1) extension plinth
  • (50) M6 screws
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Universal Server Cabinet, 42U, 48"D:

    Exterior Height 80" (203 cm)
    Exterior Width 24" (61 cm)
    Exterior Depth 48" (122 cm)
    Rack Units 42U
    Interior Width 19" rackmount
    Interior Depth 48" (122 cm)
    Weight 310 lb. (140.6 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Universal Server Cabinet, 42U, 48"D:


    Connect your Universal Server Cabinet, 42U, 48"D with:

    Accessory: PS186A-R2

    19" Rackmount Power Strip, 6 Rear Outlets, Switchable

    19" Rackmount Power Strip, 6 Rear Outlets, Switchable

    Accessory: RM8000

    Universal Server Cabinet Heavy-Duty Fixed Shelves, 27.6"D

    Universal Server Cabinet, Heavy-Duty Fixed Shelves, 220-lb. Capacity, 27.6"D

    Accessory: RM8002-R2

    Universal Server Cabinet Rackmount Fan Tray, 1U

    Universal Server Cabinet, Rackmount Fan Tray, 1U

    Accessory: RM8003

    Universal Server Cabinet Baying Kit

    Universal Server Cabinet, Baying Kit

    Accessory: RM8001

    Universal Server Cabinet Heavy-Duty Fixed Shelf, 220-lb. Capacity, 31.5"D

    Universal Server Cabinet Heavy-Duty Fixed Shelf, 220-lb. Capacity, 31.5"D

    Accessory: RM802

    Enclosure Blower Filter Assembly

    Enclosure Blower Filter Assembly

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $1,349.95

    Quantity Available: 5

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 415 lbs.
    HxWxD: 84.25 x 35.5 x 52 in.
