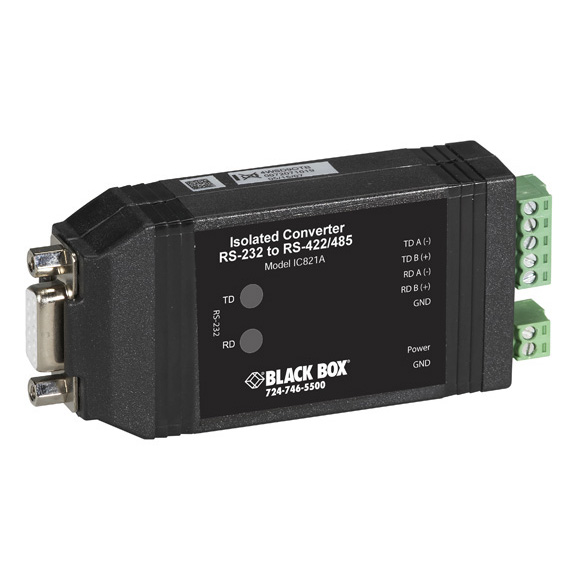

Universal RS-232 to RS-422/485 Converter with Opto-Isolation

Don't be shocked. You can safely perform multiple serial conversions.

IC821A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Convert RS-232 to 4-wire RS-422 or to 2- or 4-wire RS-485.
  • Features 2000-VAC isolation.
  • RoHS compliant.
  • Selectable RS-422 operation.
  • Select RS-485 for 2-wire half-duplex or 4-wire full-duplex.
  • Auto RS-485 driver control.

  • Description

    RS-232 to RS-422/RS-485 interface converter with optical isolation.


    Quick Facts

  • Convert RS-232 to 4-wire RS-422 or to 2- or 4-wire RS-485.
  • Features 2000-VAC isolation.
  • RoHS compliant.
  • Selectable RS-422 operation.
  • Select RS-485 for 2-wire half-duplex or 4-wire full-duplex.
  • Auto RS-485 driver control.

  • Further Details

    The BLACK BOX® Universal RS-232↔RS-422/485 Converter with Opto-Isolation isolates and converts RS-232 signals into RS-422/RS-485 signals and vice versa. Unlike other converters, external software is not required to control data flow. The RS-232 input is wired for DCE through a DB9 female connector, and RS-422/RS-485 signals are interfaced through a removable terminal block. To supply external power to the terminal block, you need our 120-VAC/12-VDC Wallmount Power Supply (PS1003).

    For RS-232, the connection requires RD, TD, and Signal Ground.

    In RS-422 mode, the driver is always enabled for full-duplex communications. A twisted pair is required for transmit, and a twisted pair is also required for receive. A ground reference wire is also needed. Switch settings are Switch 1: RS-422; Switch 2: Echo On; Switches 3 and 4: 4 Wire.

    In both RS-485 modes, the RS-485 driver is automatically enabled during each space state by the presence of an RS-232 signal. When the RS-232 data is in a mark or idle state, the RS-485 driver is disabled and the RS-485 data lines are held in a mark state by the bias provided by a 4.7-ohm resistor; the value of this resistor may need to be changed, depending on the termination you use.

    To connect to several RS-485 devices with minimal wire, select the unit's 2-wire, half-duplex RS-485 mode. When data is requested, the addressed device transmits and then reverts back to receive status. Switch settings for this mode are Switch 1: RS-485; Switch 2: Echo Off; Switches 3 and 4: 2 Wire.

    For 4-wire master/slave circuits, select the unit's 4-wire, full-duplex RS-485 mode. In this mode, addressed devices can receive data while transmitting data from a previous request. When used as a master in a single-master system, Switch 1 may be selected because the unit is the only transmitter in the system. When used as an RS-485 slave, the RS-232 device must provide addressability. Biasing in a master/slave system is provided by the end-of-line slave. Switch settings for this mode are Switch 1: RS-485; Switch 2: Echo On; Switches 3 and 4: 4 Wire.

    NOTE: Power Supply (PS1003) is not included, but is required.

    This product works with:
  • CAT3 Solid Bulk Cable
  • DB9 Serial Extension Cable
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Universal RS-232 to RS-422/485 Converter with Opto-Isolation:

    Data Rate (Maximum) 115.2 kbps
    Isolation 2000 VAC
    Operating Temperature 32 to 158° F (0 to 70° C)
    CE Approval Yes
    Connectors RS-232: (1) DB9 F;
    RS-422/RS-485: (1) removable terminal block
    Power Input: 10-48 VDC;
    Current Draw: 28 mA at 12 VDC (typical)
    Size 1.7"H x 0.9"W x 3.9"D (4.3 x 2.3 x 9.9 cm)
    NOTE: Power Supply (PS1003) is not included, but is required.

    This product works with:
  • CAT3 Solid Bulk Cable
  • DB9 Serial Extension Cable
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
