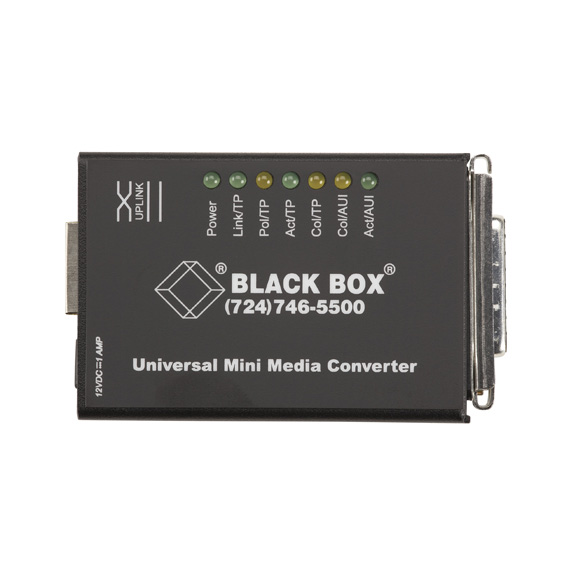

LE1510A-R2

Photo may show similar product

Other views

Universal Mini Media Converter

Convert 10BASE-T to AUI for connection to any transceiver.

LE1510A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Autosensing port configuration.


  • Description

    Universal Mini Media Converter


    Quick Facts

  • Autosensing port configuration.

  • Further Details

  • Use with a transceiver to connect 10BASE-T to any other Ethernet media type.
  • Works with any Ethernet transceiver—even fiber.
  • Slide latch ensures a secure connection.
  • External power supply.
  • High-strength metal case offers protection from electromagnetic interference (EMI).
  • Perfect for "on-the fly" media conversion while installing or repairing Ethernet LANs. You can use it on the road, at trade shows, or for demos.

    Have a spare transceiver and need to extend or convert to UTP? We have the perfect solution!

    Our converter connects a 10BASE-T segment to an AUI transceiver for half-duplex transmission. Extend twisted-pair runs or convert twisted-pair to single- and multimode fiber, even thick Ethernet via transceiver and drop cable.

    Use the converter to:
    • Convert 10BASE-T to 10BASE2 via the converter and a 10BASE2 transceiver.
    • Attach 10BASE-T cable to multimode or single-mode fiber via the converter and a fiber transceiver.

  • Technical Specifications for Universal Mini Media Converter:

    RJ-45 Uplink Manual
    Transmission Method Half-duplex
    Connectors (1) RJ-45, (1) 15-pin AUI
    Indicators LEDs: Power, Link/TP, Pol/TP, Act/TP, Col/TP, Col/AUI, Act/AUI
    Power 120 VAC, 60 Hz, 12 VDC, external
    Size 2.7"H x 1.7"W x 0.8"D (6.9 x 4.3 x 2 cm)
    Weight 0.3 lb. (0.1 kg)
    This product works with:
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    • CAT5 100-MHz Patch Cable, 4-Pair, Straight-Pinned (EVMSL05)
    • Ceramic Terminated Multimode Fiber Optic Cable, ST–ST (EFN062-CC)
    • ThinNet Cable (LCN300)
    Questions? Contact Tech Support.

    Also works with:
    • Mini Fiber Transceiver (LE2051A-ST-R4)
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Universal Mini Media Converter:

    Product Data Sheets


    Connect your Universal Mini Media Converter with:

    Accessory: EYN556MS-0010

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    Accessory: LCN300-0010

    ThinNet Cable, RG-58, 10BASE2, PVC (NEC CL2), 10-ft. (3.0-m)

    ThinNet Cable, RG-58, 10BASE2, PVC (NEC® CL2), 10-ft. (3.0-m)
