Datacom > Converters

click photo to enlarge

CL061A

Photo may show similar product

Other views

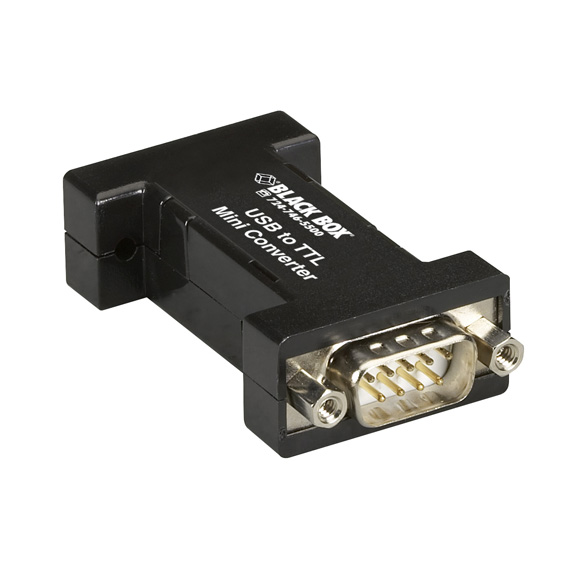

USB to 5-V TTL Mini Converter

Connect 5-V TTL devices to your USB port.

CL061A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Simply and reliably converts TTL devices to USB.
  • Perfect for field service applications.
  • USB port powered.

  • Description

    USB to 5-V TTL Mini Converter


    Quick Facts

  • Simply and reliably converts TTL devices to USB.
  • Perfect for field service applications.
  • USB port powered.

  • Further Details

    Many commercial and industrial machines still use the TTL interface, and to connect these deivces to modern PCs, you need a converter. The USB to 5-V TTL Mini Converter is small, reliable, simple, and affordable.

    Just plug the converter into a computer's USB port or USB hub and install the drivers supplied on the CD-ROM. The Mini Converter appears as an additional COM port in the Windows Device Manager, so it's compatible with Windows® applications. You're ready to go—at up to 460.8 kbps!

    For a USB to 3.3-V TTL Mini Converter (CL062A), see Similar Items below.


    What's included:
  • USB to 5V TTL Mini Converter
  • 3-ft. USB cable
  • CD-ROM


  • Technical Specifications for USB to 5-V TTL Mini Converter:

    Connectors — Serial: DB9 Male;
    USB: USB Type B Female
    Data Rate — Serial: Up to 460.8 kbps;
    USB: 12 Mbps
    Operating Temperature — 32 to 158° F (0 to 70° C)
    CE Approval — Yes
    Power — From the USB port
    Size — 1.3"H x 2.3"W x 0.6"D (3.2 x 5.8 x 1.6 cm)
    Weight — 0.2 lb. (.1 kg) with USB cable
    What's included:
  • USB to 5V TTL Mini Converter
  • 3-ft. USB cable
  • CD-ROM



  • NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for USB to 5-V TTL Mini Converter:


    Connect your USB to 5-V TTL Mini Converter with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Five year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $6.90

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $13.79
