Datacom > Extenders & Line Drivers

click photo to enlarge

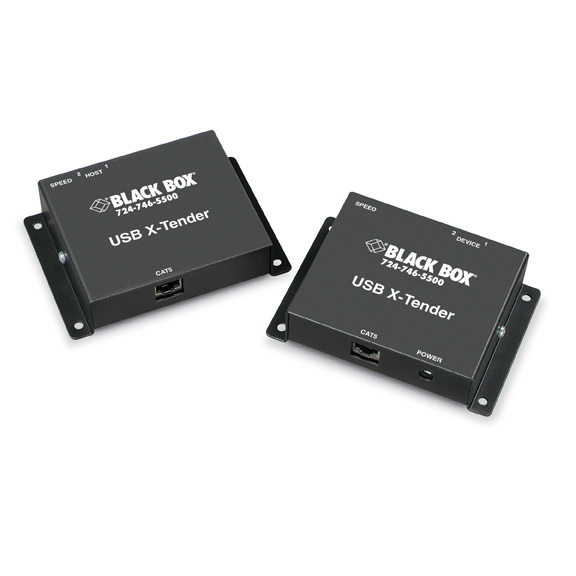

IC169A

Photo may show similar product

Other views

USB X-Tender, 115 VAC, 60 Hz

Break through the USB 15-foot barrier!

IC169A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Extend USB up to 1000 feet (304.8 m) over ordinary CAT5 UTP cable.
  • Support all USB devices, including cameras, hubs, keyboards, mice, scanners, and printers.
  • Support low-speed and full-speed USB.

  • Description

    USB X-Tender, 115 VAC, 60 Hz


    Quick Facts

  • Extend USB up to 1000 feet (304.8 m) over ordinary CAT5 UTP cable.
  • Support all USB devices, including cameras, hubs, keyboards, mice, scanners, and printers.
  • Support low-speed and full-speed USB.

  • Further Details

  • Extend two USB channels over one CAT5 cable.

    Universal Serial Bus (USB) is convenient and inexpensive, and it has become a very popular interface in newer PCs. But USB has a 15-foot (4.6-m) limit, which hampers its usefulness. Now there’s an answer—the USB X-Tender enables you to extend USB up to 1000 feet (304.8 m) over ordinary, inexpensive CAT5 cable.

    The USB X-Tender is compatible with all kinds of USB peripherals, including low-speed and full-speed devices, such as hubs and printers.

    The USB X-Tender comes with a local and a remote module. Connect the modules with a single CAT5 cable up to 1000 feet in length. Because each USB X-Tender module pair provides two USB connections over a single CAT5 cable, you can connect two USB devices (low- or full-speed) without using a hub.

    In fact, you can extend low-speed (1.5-Mbps) device connections up to 1000 feet (304.8 m). However, full-speed (12-Mbps) devices are restricted to 150 feet (45.7 m), which is still 10 times the normal USB limit.

    So break through that 15-meter barrier and use USB for long-distance applications!

    What's included:
  • (1) USB X-Tender, local module
  • (1) USB X-Tender, remote module
  • (1) 115-VAC, 60-Hz power supply with cords (for remote module) for the IC169A or (1) 230-VAC, 50-Hz power supply with cords (for remote module) for the IC169AE
  • (2) 6-ft. (1.8-m) USB output cables
  • User's manual

  • NOTE: Must be used in pairs.

    These products work with:
    • USB Version 1.1. Cables (USB01)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    Questions? Contact Tech Support.
    Also work with:
    • USB 2.0 (4-Port) Hub
    Questions? Contact Tech Support.


    Technical Specifications for USB X-Tender, 115 VAC, 60 Hz:

    Channels — 2
    Distance (Maximum) — Low speed: 1000 ft. (304.8 m);
    High speed: 150 ft. (45.7 m)
    Connectors — Each Module: (1) RJ-45, (2) USB Type B
    Power — 115 VAC, 60 Hz, (autosensing 100–240 VAC version on request)
    Size — Each Module: 1.1“H x 2.9“W x 3.4“D (2.8 x 7.4 x 8.6 cm) (without flanges)
    Weight — Each Module: 1 lb. (0.5 kg)
    NOTE: Must be used in pairs.

    These products work with:
    • USB Version 1.1. Cables (USB01)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    Questions? Contact Tech Support.
    Also work with:
    • USB 2.0 (4-Port) Hub
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
