Datacom > Extenders and Line Drivers


click photo to enlarge

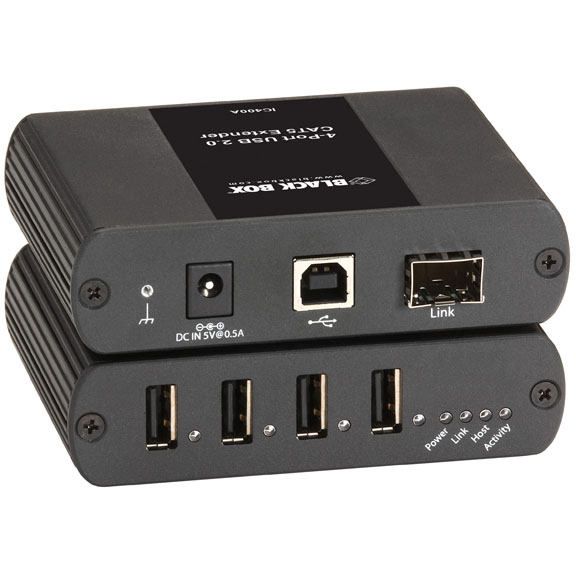

IC400A

Photo may show similar product

Other views

USB Ultimate Extender over UTP, 4 Port

Extends USB 2.0 up to 100 meters over UTP cable.

This product replaces the USB 2.0 CATx Extender (IC254A).

IC400A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Extends both USB 2.0 and USB 1.1 up to 100 meters (328 ft.) over standard CATx UTP cable.


  • Description

    USB Ultimate Extender over UTP, 4 Port


    Quick Facts

  • Extends both USB 2.0 and USB 1.1 up to 100 meters (328 ft.) over standard CATx UTP cable.

  • Further Details

  • Provides true plug-and-play capabilities, ready to operate right out of the box.
  • Works with Windows®, Mac®OS, and Linux® operating systems. No new driver installation is required.
  • It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more!

  • Get USB connectivity anywhere.
    Install your USB devices anywhere! Combine the USB Ultimate Extender over UTP, 4-Port, with additional USB hubs to power up to 14 USB devices or 3 USB hubs with 11 USB devices.

    It supports all major operating systems including Windows, Mac OS, and Linux. It's truly plug-and-play, ready to operate right out of the box. No new driver installation is required.

    The USB Ultimate Extender works with all USB device types: control, interrupt, bulk, and isochronous at up to 480 Mbps. It's ideal for a wide variety of USB devices, including printers, scanners, hard drives, audio devices, touch screens, and Web cams.

    An AC power adapter at the remote unit provides standard 500 mA to each USB port.

    Use it for any or all of the following applications:
  • Industrial control
  • KVM extension
  • Digital signage
  • Remote desktop USB connections
  • Security: Web camera, access control
  • Medical Device connectivity
  • USB Web device sharing: printing, scanning, storage

  • What's included
  • Local extender module
  • Remote extender module
  • USB Cable (2-meter)
  • Power adapter


  • Technical Specifications for USB Ultimate Extender over UTP, 4 Port:

    Connectivity 14 USB devices or 3 USB hubs with 11 USB devices
    Environmental Operating temperature range: 32 to 122° F (0 to 50° C);
    Operating humidity: 20 to 80%, noncondensing;
    Storage humidity: 10 to 90%, noncondensing
    Range 330 feet (100 meters) over CAT5e (or better) cable
    Standards FCC (Class B), IC (Class B), CE (Class B);
    ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air
    RoHS Yes
    Connectors Local unit: (1) USB type B, (1) RJ-45;
    Remote unit: (4) USB Type A, (1) RJ-45
    Power Local unit: not required for normal operation
    Available at remote unit: 5 VDC @ 3 amp provides 4 x 500 mA for devices
    Dimensions Local and remote units: 1"H x 3.9"W x 3"D (2.5 x 9.9 x 7.6 cm)
    Weight 2.2 lb. (1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for USB Ultimate Extender over UTP, 4 Port:

    Manuals

    • USB Ultimate Extender over CATX UTP (4-Port) Manual
      Manual for the IC400A
    • USB Ultimate Extender over CATX UTP (4-Port) Quick Start Guide
      Quick Start Guide (QSG) for the IC400A

    Product Data Sheets

    Black Box Explains


    Connect your USB Ultimate Extender over UTP, 4 Port with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamondâ„¢ warranty!
    Cost: $35.00

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamondâ„¢ warranty!
    Cost: $69.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $359.95

    Quantity Available: 162

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 2.031 lbs.
    HxWxD: 3 x 7.5 x 9.5 in.
