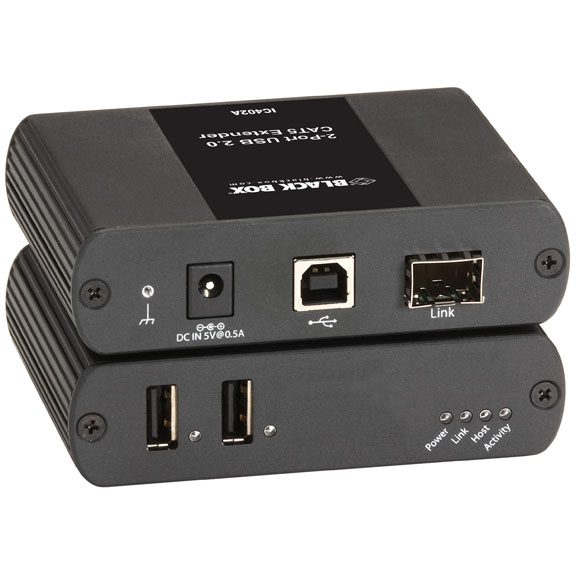

click photo to enlarge

IC402A

Photo may show similar product

Other views

USB Ultimate Extender over UTP, 2-Port, with Remote Power

Extends USB 2.0 up to 100 meters over UTP cable, while providing power to the remote hub.

IC402A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Extends both USB 2.0 and USB 1.1 up to 100 meters (328 ft.) over standard CATx UTP cable.
  • Delivers power to a remote hub over CAT5, simplifying installation and eliminating the need for AC power close to the remote unit.
  • Provides true plug-and-play capabilities, ready to operate right out of the box.
  • Works with Windows®, Mac® OS, and Linux® operating systems. No new driver installation is required.
  • It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more!

  • Description

    USB Ultimate Extender over UTP, 2-Port, with Remote Power


    Quick Facts

  • Extends both USB 2.0 and USB 1.1 up to 100 meters (328 ft.) over standard CATx UTP cable.
  • Delivers power to a remote hub over CAT5, simplifying installation and eliminating the need for AC power close to the remote unit.
  • Provides true plug-and-play capabilities, ready to operate right out of the box.
  • Works with Windows®, Mac® OS, and Linux® operating systems. No new driver installation is required.
  • It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more!

  • Further Details

    Get USB connectivity anywhere.
    Install your USB devices anywhere! Combine the USB Ultimate Extender over UTP, 2-Port, with Remote Power, with additional USB hubs to power up to 14 USB devices or 3 USB hubs with 11 USB devices.

    It supports all major operating systems including Windows, Mac OS, and Linux. It's truly plug-and-play, ready to operate right out of the box. No new driver installation is required.

    The system delivers power to the remote hub over CAT5 cable, simplifying installation and eliminating the need for AC power close to the remote unit. The remote unit provides standard 500mA to each USB port.

    The USB Ultimate Extender works with all USB device types: control, interrupt, bulk, and isochronous at up to 480 Mbps. It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, audio devices, touch screens, and Web cams.

    Use it for any or all of the following applications:
  • Industrial control
  • KVM extension
  • Digital signage
  • Remote desktop USB connections
  • Security:camera, access control
  • Medical device connectivity
  • USB Device Sharing: printing, scanning, storage

  • What's included
  • Local extender module
  • Remote extender module
  • USB Cable (2-meter)
  • Power adapter


  • Technical Specifications for USB Ultimate Extender over UTP, 2-Port, with Remote Power:

    Connectivity 14 USB devices or 3 USB hubs with 11 USB devices
    Environmental Operating temperature range: 32 to 120° F (0 to 50° C);
    Operating humidity: 20 to 80%, noncondensing;
    Storage humidity: 10 to 90%, noncondensing
    Range 330 feet (100 meters) over CAT5e (or better) cable
    Standards FCC (Class B), IC (Class B), CE (Class B);
    ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air
    RoHS Yes
    Connectors Local unit: (1) USB type B, (1) RJ-45;
    Remote unit: (2) USB Type A, (1) RJ-45
    Power Local Unit: 24 VDC @ 1 amp;
    Available to Remote Unit: 2 x 500mA
    Size Local and remote units: 1"H x 3.9"W x 3"D (2.5 x 9.9 x 7.6 cm)
    Weight 2.2 lbs (1.0 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for USB Ultimate Extender over UTP, 2-Port, with Remote Power:

    Manuals

    • USB Ultimate Extender over UTP (2-Port) with Remote Power Manual
      Manual for the IC402A

    Quick Start Guides

    • USB Ultimate Extender over UTP (2-Port) with Remote Power Quick Start Guide
      Quick Start Guide (QSG) for the IC402A
