Datacom > Extenders & Line Drivers

click photo to enlarge

IC404A

Photo may show similar product

Other views

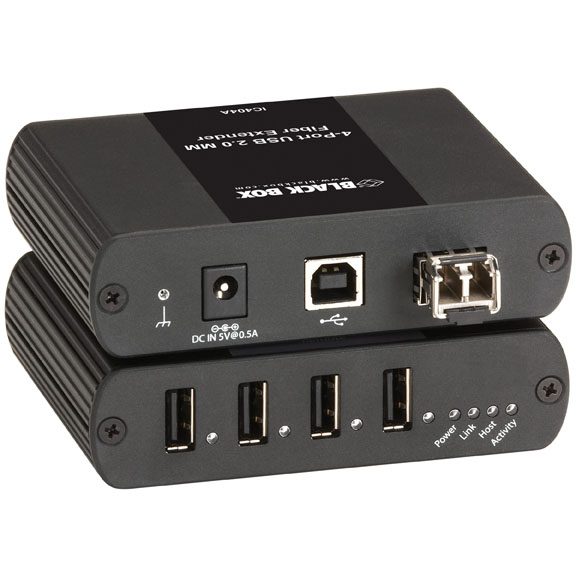

USB Ultimate Extender over Multimode Fiber, 4-Port

Extends USB 2.0 up to 500 meters over multimode fiber.

IC404A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Extends both USB 2.0 and USB 1.1 up to 500 meters (1064.4 ft.) over multimode fiber.
  • Provides true plug-and-play capabilities, ready to operate right out of the box.
  • Works with Windows®, Mac®OS, and Linux® operating systems. No new driver installation is required.
  • It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more!

  • Description

    USB Ultimate Extender over Multimode Fiber, 4-Port


    Quick Facts

  • Extends both USB 2.0 and USB 1.1 up to 500 meters (1064.4 ft.) over multimode fiber.
  • Provides true plug-and-play capabilities, ready to operate right out of the box.
  • Works with Windows®, Mac®OS, and Linux® operating systems. No new driver installation is required.
  • It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more!

  • Further Details

    Get USB connectivity anywhere.
    Install your USB devices anywhere! Combine the USB Ultimate Extender over Multimode Fiber, 4-Port, with additional USB hubs to power up to 14 USB devices or 3 USB hubs with 11 USB devices.

    It supports all major operating systems including Windows, Mac OS, and Linux. It's truly plug-and-play, ready to operate right out of the box. No new driver installation is required.

    The USB Ultimate Extender works with all USB device types: control, interrupt, bulk and isochronous at up to 480 Mbps. It’s ideal for a wide variety of USB devices, including printers, scanners, hard drives, audio devices, touch screens, and Web cams.

    An AC power adapter at the remote unit provides standard 500 mA to each USB port.

    Use it for any or all of the following applications:
  • Industrial control
  • KVM extension
  • Digital signage
  • Remote desktop USB connections
  • Security: Web camera, access control
  • Medical device connectivity
  • USB device sharing: printing, scanning, storage

  • What’s included
  • Local extender module
  • Remote extender module
  • USB Cable (2-meter)
  • Power adapter


  • Technical Specifications for USB Ultimate Extender over Multimode Fiber, 4-Port:

    Connectivity — 14 USB devices or 3 USB hubs with 11 USB devices
    Environmental — Operating temperature range: 32 to 122° F (0 to 50° C);
    Operating humidity: 20 to 80%, noncondensing;
    Storage humidity: 10 to 90%, noncondensing
    Range — 1640 feet (500 meters) over 50µ multimode fiber;
    902 feet (275 meters) over 62.5µ multimode fiber
    Standards — FCC (Class B), IC (Class B), CE (Class B);
    ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air
    RoHS — Yes
    Connectors — Local unit: (1) USB Type B, (1) pair of LC;
    Remote unit: (4) USB Type A, (1) pair of LC
    Power — Local unit: not required for normal operation
    Available at remote unit: 5 VDC @ 3 amp provides 4 x 500mA for devices
    Size — Local and remote units: 1"H x 3.9"W x 3"D (2.5 cm x 9.9 cm x 7.6 cm)
    Weight — 2 lbs. (0.9 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for USB Ultimate Extender over Multimode Fiber, 4-Port:

    Manuals

    • USB Ultimate Extender over Fiber Manual
      Manual for the IC404A and IC406A
    • USB Ultimate Extender over Multimode Fiber (4-Port) User Manual
      User Manual for the IC404A

    Black Box Explains


    Connect your USB Ultimate Extender over Multimode Fiber, 4-Port with:

    Accessory: PS261

    Spare Power Supply for USB Ultimate Extenders (IC400A, IC404A, IC406A)

    Spare Power Supply for USB Ultimate Extenders (IC400A, IC404A, IC406A)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $94.60

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $189.19

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $945.95

    Quantity

    Warranty

    Total

    Shipping Info

    Usually Ships in 3-5 days


    45-day return policy
