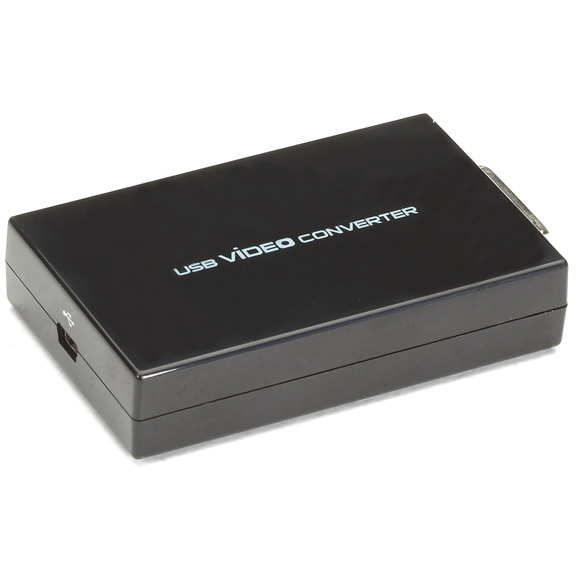

USB–DVI/VGA Adapter

The easy way to add multiple DVI displays to your PC.

AC1039A-R3

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • The easy way to add multiple DVI displays to your PC.
  • Plugs into a PC's USB 2.0 port.
  • Eliminates the need for a video card.
  • Ideal for expanding your viewing area with more room for extra views and windows.
  • Configure three ways: mirror image, extended desktop, or as a primary display.
  • You can even use two adapters to add two monitors, for a total of three.

  • Description

    USB–DVI/VGA Adapter


    Quick Facts

  • The easy way to add multiple DVI displays to your PC.
  • Plugs into a PC's USB 2.0 port.
  • Eliminates the need for a video card.
  • Ideal for expanding your viewing area with more room for extra views and windows.
  • Configure three ways: mirror image, extended desktop, or as a primary display.
  • You can even use two adapters to add two monitors, for a total of three.

  • Further Details

  • Hot-swappable.
  • Compatible with Windows® 2000, XP, Vista, and Windows 7 operating systems.
  • Maximum resolutions of 1920 x 1080; a range of lower resolutions is also available.
  • (1) USB Mini B female and (1) DVI-I 24-pin female connector.


  • Want to connect an extra monitor to your PC without the hassle of installing a second video card? Then check out the Black BOX® USB–DVI/VGA Adapter—all you need is your computer's USB port.

    With the USB–DVI/VGA Adapter, you can use the second monitor as an extended desktop, so instead of stacking windows, you can see more of your applications at the same time. Or, you can spread large files such as spreadsheets across two monitors for easier viewing.

    This adapter puts minimum demand on your system resources, so you don't compromise PC performance, and it's hot-pluggable, so you don't need to reboot. Just disconnect the second monitor when you don't want to use it and plug it back in when you do. You can even use two adapters together to add a third monitor.

    Here are just some of the applications for the USB–DVI/VGA Adapter:
  • Workstation—View large files and manage multiple applications more effectively.
  • Conventions and trade shows—Create multiple-screen presentations.
  • Graphic design—View whole images and files or separate projects from palettes and tools.
  • Editing—Edit on one screen while viewing source material on the other.
  • Finance—Organize data streams by monitor or view charts and live information at the same time.

  • What's included:
  • (1) USB–DVI/VGA adapter
  • (1) USB cable
  • (1) DVI to VGA adapter



  • Technical Specifications for USB–DVI/VGA Adapter:

    Color 16- and 32-bit
    Modes Mirrored desktop, extended desktop, primary display
    Operating Systems Windows® 2000, XP, Vista, and Windows 7
    Resolution All resolutions up to 1920 x 1080
    Video Modes All VESA modes to 1080p excluding interlaced and reduced blanking
    CE Approval Yes
    RoHS Yes
    Connectors (1) USB Mini B F, (1) DVI-I F, (1) DVI M to VGA HD15 F adapter
    Power Interfaced powered from USB Type A port (5V, 500mA)
    Size 0.7"H x 2.2"W x 3.4"D (1.8 x 5.4 x 8.5 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for USB–DVI/VGA Adapter:

    Quick Start Guides

    • USB%X96DVI/VGA Adapter Quick Start Guide
      Quick Start Guide for AC1039A-R3 (Version 1)
