Datacom > Converters

click photo to enlarge

SW211A

Photo may show similar product

Other views

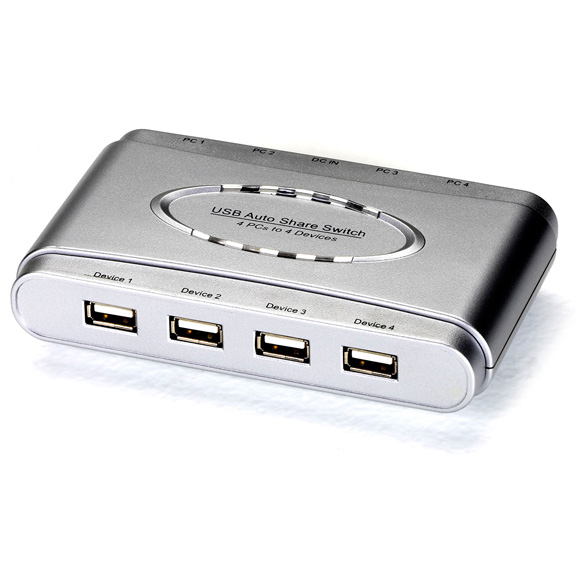

USB Auto Share Switch, 4 Users x 4 Peripherals

Easily enable four users to share four USB peripherals.

SW211A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Four users can switch easily between four connected USB peripherals.
  • Share USB peripherals, such as scanners, cameras, mice, and keyboards, as well as a printer.
  • USB 1.1 compliant.

  • Description

    USB Auto Share Switch, 4 Users x 4 Peripherals


    Quick Facts

  • Four users can switch easily between four connected USB peripherals.
  • Share USB peripherals, such as scanners, cameras, mice, and keyboards, as well as a printer.
  • USB 1.1 compliant.

  • Further Details

  • Enables any individual PC user to control all USB device connections.
  • Any PC can connect to any or all devices, as long as another PC isn’t already using the device(s).
  • Each PC “sees” the switch as an independent 4-port USB hub.
  • Assign a device to computers using the drag-and-drop menu of its graphical software.
  • Automatic printer detection and reconnection when sharing a printer.
  • Eliminates the need to swap cables between USB ports and peripherals manually.
  • Overcurrent detection and prevention to protect expensive devices.
  • LEDs indicate active ports at a glance.
  • Plug and play. Simple to use on a USB port-equipped PC or Mac®.
  • Supports self-power models. Also has external switching power supply.

  • What’s included:
  • USB Auto Share Switch, 4 Users x 4 Peripherals
  • (1) switching AC power adapter
  • (1) USB cable
  • (1) CD with software driver
  • (1) user manual


  • Technical Specifications for USB Auto Share Switch, 4 Users x 4 Peripherals:

    Port Selection — Software
    System Requirements — IBM® compatible Pentium® 233-MHz or faster PC running Windows® 98 SE, Windows Me, Windows 2000, or Windows XP®; Mac® 9.0 and up; 64 MB RAM or more
    Connectors — Computers (upstream): (4) USB Type B F;
    Devices (downstream): (4) USB Type A F with (1) port devoted to printer connections
    Operating Temperature — 41° to 104° F (5° to 40° C)
    Power — From the USB bus or external 100–240-VAC, 50–60-Hz adapter;
    Output: 5 VDC, 2.5 A

    This product works with:
  • USB Version 1.1 Cable (USB01)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
