IC147A-R3

Photo may show similar product

Other views

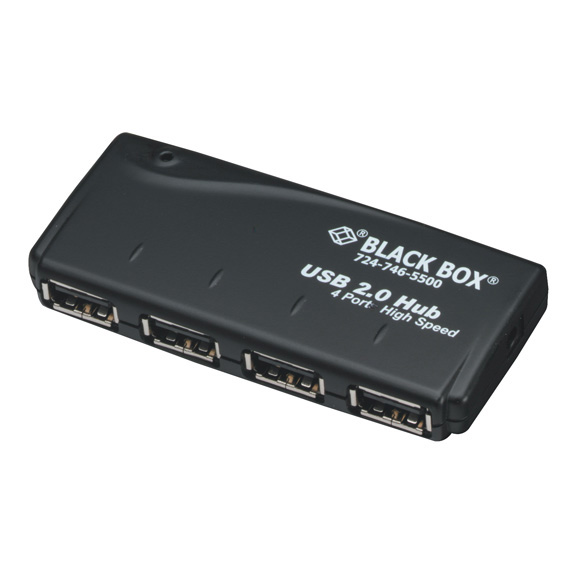

USB 2.0 Hub, 4-Port

The easy way to connect multiple peripherals to your PC externally.

IC147A-R3

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Fully compliant with USB 2.0.
  • Ideal for connecting scanners, digital cameras, removable drives, and more.

  • Description

    USB 2.0 Hub, 4-Port


    Quick Facts

  • Fully compliant with USB 2.0.
  • Ideal for connecting scanners, digital cameras, removable drives, and more.

  • Further Details

  • Backward-compatible with USB 1.1 devices.
  • Compatible with Windows® 98/Me/XP and Windows 2000. Also compatible with Mac® OS 8.6 or higher.
  • Independent downstream ports support data transfer rates of 1.5, 12, and 480 Mbps.
  • Includes (1) USB mini Type B male to USB Type A male cable.
  • Also available in a 7-port model.

  • Connect up to four peripheral devices, such as scanners, digital cameras, and removable drives, to one host computer with this 4-port USB 2.0 hub.

    Universal Serial Bus (USB) technology doesn't require any IRQs, so you can attach more peripheral devices to the system, thus eliminating IRQ conflicts. Because many older computers don't have USB connectors onboard and most newer computers come with only one or two USB ports, USB hubs are used to connect additional USB peripherals.

    The USB 2.0 Hub, 4-Port complies with the USB 2.0 standard and provides data transfer rates of up to 480 Mbps. It's faster, more efficient, and more capable than its predecessor, USB 1.1. Also, it's backward-compatible, so you don’t lose your prior investment in USB 1.1 peripherals.
    This product works with:
    • USB Version 2.0 Cables (USB05)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for USB 2.0 Hub, 4-Port :

    Distance (Maximum) 15 ft. (4.5 m)
    CE Approval Yes
    Connectors (4) USB Type A F, (1) USB mini Type B F
    Indicators (5) LEDs: (4) green for self-power for each port, (1) red for power supply
    Power USB interface and external power supply:
    Input: 120 VAC, 0.4 amps, 47–63 Hz;
    Output: 6 VDC, 3.5 amps
    Size 0.5"H x 1.4"W x 3.3"D (1.3 x 3.6 x 8.4 cm);
    This product works with:
    • USB Version 2.0 Cables (USB05)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
