Datacom > Extenders & Line Drivers

click photo to enlarge

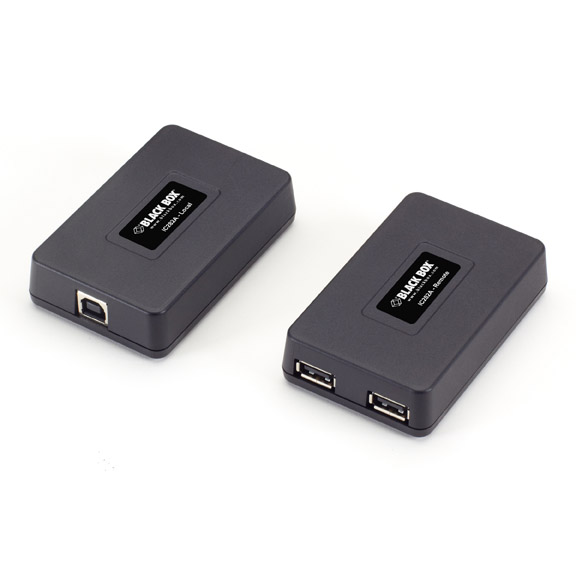

IC282A

Photo may show similar product

Other views

USB 1.1 and 2.0 CAT5 Extender, 2-Port

Extend USB connections beyond the desktop, as far as 130 feet over CAT5, to two USB devices.

IC282A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Reliably extend USB 1.0 or 2.0 signaling over CAT5 cable to remote USB devices.
  • Bus powered. No external AC adapter needed at either end.
  • Industrial rated for ESD immunity.


    • Description

    USB 1.1 and 2.0 CAT5 Extender, 2-Port


    Quick Facts

  • Reliably extend USB 1.0 or 2.0 signaling over CAT5 cable to remote USB devices.
  • Bus powered. No external AC adapter needed at either end.
  • Industrial rated for ESD immunity.

    • Further Details

  • Supports both Full-Speed (12-Mbps) and Low-Speed (1.5-Mbps) throughput.
  • Works with all major operating systems (Windows®, Mac OS X®, and Linux®).
  • Includes 6-foot (1.8-m) USB cable for transmitter-to-host computer connection.
  • Plug-and-play. No software drivers to load.

    • Use CAT5 cable to extend connections to USB peripherals such as keyboards, mice, interactive whiteboards, and other devices without the need for external power adapters.

    The extender’s transmitter receives power from the host computer, making it ideal for extensions in industrial control, sensor, or data acquisition applications where you are short on power outlets. The extender supplies up to 400 mA to USB devices and is industrial rated for ESD/EFT (electrostatic discharge/electrically fast transient) immunity.

    Also, the extender’s receiver has two downstream USB Type A ports for plugging in USB 1.1 or 2.0 devices. The extender supports 130-foot (40 m) extensions over non-networked CAT5 cabling, but for some low-speed HID devices (keyboards and mice, for instance), it can go as far as 278 feet (85 m).

    What’s more, it’s easy to set up with no need to add any software to your system or target devices. Simply attach the transmitter to your computer’s USB port, plug in the CAT5 cable, attach the remote USB peripheral to the receiver, and begin transmitting.

    What’s included:
    • Transmitter
    • Receiver
    • AC power adapter with power cord
    • (1) USB 2.0 Cable, 6-ft. (1.8-m)
    • Quick start guide


    Technical Specifications for USB 1.1 and 2.0 CAT5 Extender, 2-Port:


    Distance (Maximum)* — Full-Speed and Low-Speed: 130 ft. (40 m);
    Low-Speed: 278 ft. (85 m)
    USB Device Support — High-Speed devices (USB 2.0) at Full-Speed (USB 1.1) rates;
    Full-Speed devices (USB 2.0 and USB 1.1);
    Low-Speed devices (USB 2.0 and USB 1.1)
    CE Approval — Yes
    RoHS — Yes
    Connectors — Transmitter: (1) USB Type B F; (1) RJ-45 (CAT5 interconnect);
    Receiver: (2) USB Type A F, (1) RJ-45 (CAT5 interconnect)
    Power — Transmitter: From the host device’s USB interface;
    Receiver: From the transmitter;
    Available power: 400 mA shared between USB ports when transmitter is supplied with 800 mA of bus power
    Size — Each unit: 0.9"H x 2.2"W x 3.3"D (2.3 x 5.6 x 8.4 cm)

    * NOTE: Device and host dependent.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for USB 1.1 and 2.0 CAT5 Extender, 2-Port:

    Manuals

    • USB 1.1 and 2.0 CAT5 Extender (2-Port) User Manual
      User Manual for the IC282A (Version 1)
      httpftp

    Quick Start Guides

    • USB 1.1 and 2.0 CAT5 Extender (2-Port) Quick Start Guide (QSG)
      Quick Start Guide for the IC282A (Version 1)
      httpftp


    Connect your USB 1.1 and 2.0 CAT5 Extender, 2-Port with:

    Accessory: USB10-0002

    USB 2.0 Coiled Cable, Type A/B, Male/Male, 2-ft. (0.6-m)

    USB 2.0 Coiled Cable, Type A/B, Male/Male, 2-ft. (0.6-m)

    » more info

    Accessory: EYN717A

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths

    CAT5 Unshielded Solid, 100-MHz Bulk Cable, 24 AWG, 2-Pair, PVC, Gray, Custom Lengths

    » more info
