Premises Security > CCTV

click photo to enlarge

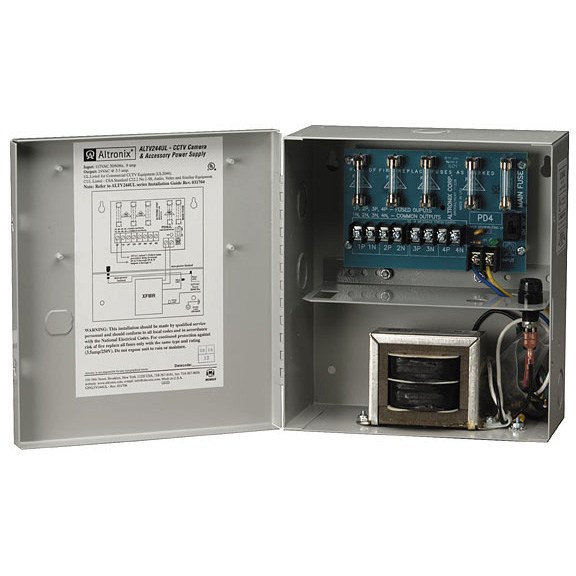

ALTV244UL

Photo may show similar product

Other views

UL® Listed CCTV Camera and Accessory Power Supply

What’s in this box? Dedicated power output for your 24-VAC security cameras.

ALTV244UL

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • UL® Listed for commercial CCTV equipment.
  • A central box with four or eight individually fused outputs for delivering reliable power to CCTV cameras and other video accessories.

  • Description

    UL® Listed CCTV Camera and Accessory Power Supply with (4) Individually Fused 24-VAC Outputs


    Quick Facts

  • UL® Listed for commercial CCTV equipment.
  • A central box with four or eight individually fused outputs for delivering reliable power to CCTV cameras and other video accessories.

  • Further Details

  • Easy to install and link to devices.
  • All outputs are surge protected.
  • Equal power distribution means your cameras stay synchronized.

  • Synchronizing your cameras: It’s important to any security monitoring application that requires precision when recording multiple feeds. And the key to it all is distributing power evenly.

    The UL® Listed CCTV Camera and Accessory Power Supply box maintains camera synchronization by outputting power evenly while providing a total supply current of 24 VAC at 3.5 amps (85 VA). It also centralizes your power distribution with a simpler cable topology that’s easier to manage.

    Fuses protect each power output. These fuses offer surge suppression to minimize the affect of adverse power conditions on devices wired to the outlets and help ensure maximum uptime for connected CCTV components.

    Two versions of the wallmount box are available (with either four or eight individually fused 24-VAC outputs).

    Installing the box is easy. Mount it where you want it and make the proper terminal connections on the internal board.

    The green AC power LED indicators tell you that the box is supplying power properly. To power down all connected devices simultaneously or to reset the internal circuit breaker, just flip the unit’s main ON/OFF switch.

    This solution is UL® Listed for Commercial CCTV Equipment—a designation that means you can be sure it meets stringent safety standards for its recommended use. The listing also may help your business conform to related ISO certification requirements.

    The actual power supply outlets contain terminal block connections. To wire the block to the cameras or other devices, order Bulk Control Cable, which is a 2-conductor cable with one conductor dedicated to carrying power to an end device.


    Technical Specifications for UL® Listed CCTV Camera and Accessory Power Supply:

    Approvals — UL® Listed (U.S. and Canada) for Commercial Closed Circuity Television Equipment (UL® 2044)
    Fuse Ratings — The main fuse, inline fuse, and all output fuses are rated at 3.5 A/250 VAC
    Output Current (Maximum per Output) — 3.5 A
    Power — Input: 115 VAC, 50/60 Hz, 0.85 A;
    Output: 24 VAC at 3.5 A (85 VA) total supply current
    Size — 8.5"H x 7.5"W x 3.5"D (21.6 x 19.1 x 8.9 cm)
    Warranty — 1 year
    These products work with:
    • Bulk Control Cable, 1-Pair, 2-Conductor Stranded, Unshielded (EVNSEC04–05, 08–09)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for UL® Listed CCTV Camera and Accessory Power Supply:


    Connect your UL® Listed CCTV Camera and Accessory Power Supply with:

    Accessory: R248UL

    Rackmount UL® Listed CCTV Camera and Accessory Power Supply with (8) Individually Fused 24-VAC Outputs

    Rackmount UL® Listed CCTV Camera and Accessory Power Supply with (8) Individually Fused 24-VAC Outputs
