Datacom > Converters

click photo to enlarge

USR5686G

Photo may show similar product

Other views

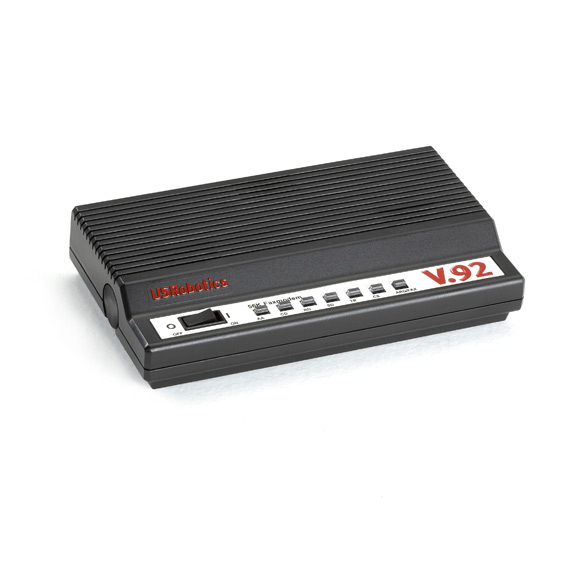

U.S. Robotics 56K V.92 Data Faxmodem, Standalone

Go for the fastest downloads over analog phone lines.

USR5686G


30 DAYS Warranty

Product Highlights

  • With V.92, you can get all the Internet access you want from any service provider offering V.92.
  • Download up to 40 percent faster than V.34+ (33.6-kbps) modems!
  • Includes CD with software drivers.
  • Enables you to screen and take phone calls without losing your Internet connection.

  • Description

    U.S. Robotics 56K V.92 Data Faxmodem, Standalone


    Quick Facts

  • With V.92, you can get all the Internet access you want from any service provider offering V.92.
  • Download up to 40 percent faster than V.34+ (33.6-kbps) modems!
  • Includes CD with software drivers.
  • Enables you to screen and take phone calls without losing your Internet connection.

  • Further Details

    The U.S. Robotics® 56K V.92 Data Faxmodem, Standalone, delivers the fastest possible downloads over analog phone lines. Faster Internet access brings you the rich, detailed graphics and motion built into today’s most advanced Web sites; quality sound; and real-time, intense game action.

    This modem uses 50% less energy than older modems when in use, and up to 75% less when idle. It helps you make your office greener and contributes to reducing electricty costs.

    Also, software upgradability enables you to download the latest features and enhancements into the modem’s memory for regular updating.

    The Modem on Hold feature enables you to take incoming phone calls without losing your Internet connection. Internet Call Notification (ICN) enables you to screen incoming calls. (These features require you to have Caller ID and Call Waiting services from your phone company.)

    A PCI card version of this modem is also available.

    Includes an installation CD-ROM featuring fax and Internet software.


    Technical Specifications for U.S. Robotics 56K V.92 Data Faxmodem, Standalone:

    Operating Systems — Windows® 7, Server 2008, Windows Vista®, Windows XP/NT/2000/Me, Linux®, and DOS
    Compression — V.42 bis and MNP® 5
    Error Correction — V.42 and MNP 2–4
    Fax Standards — Classes 1 and 2 software, V.17 Group III
    Line Type — Dialup
    Modem Standards — ITU: V.92, V.90, V.34, V.32 bis, V.32, V.22 bis, V.22, V.23, V.21
    Operation — Asynchronous
    Speed (Maximum) — V.92: Upload and download: 48 kbps;
    V.90: Upload: 33.6 kbps; Download: 56 kbps;
    Fax: 14.4 kbps
    VideoConferencing: V.80
    Interface — RS-232 (DB25 F)
    Power — 9 VAC 1A
    Size — 1.5"H x 6.5"W x 3.8"D (3.8 x 16.5 x 9.7 cm)
    NOTE: Although this faxmodem is capable of 56-kbps downloads, FCC regulations limit download speeds to 53 kbps.

    This product works with:
    • Standard PC/AT Modem Cable (BC03000-0006-MF)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for U.S. Robotics 56K V.92 Data Faxmodem, Standalone:


    Connect your U.S. Robotics 56K V.92 Data Faxmodem, Standalone with:

    Accessory: BC03000-0006-MF

    Standard AT Modem Cable, DB9 Female/DB25 Male, 9-Conductor, 28 AWG, 6-ft. (1.8-m)

    Standard AT Modem Cable, DB9 Female/DB25 Male, 9-Conductor, 28 AWG, 6-ft. (1.8-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A 30 DAYS warranty is included.
