Premises Security > Access Control

click photo to enlarge

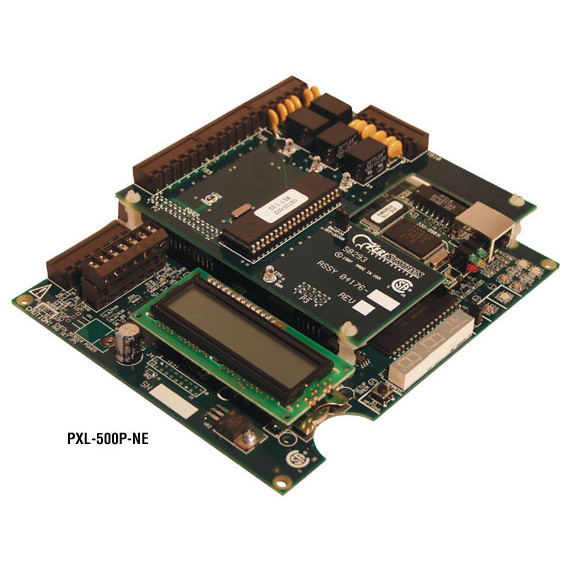

PXL-500P

Photo may show similar product

Other views

Tiger II Controller Platforms, with Enclosure

Advanced door control for up to 65,000 proximity cardholders.

PXL-500P


Two year Warranty

Product Highlights

  • Expandable a door at a time for a total capacity of 256 doors per site and 65,000 users total.
  • Cascade up to 128 controllers via an RS-485 link with a maximum distance of 4000 feet (1219.2 m) between controllers in a loop.

  • Description

    Tiger II Controller Platforms, with Enclosure


    Quick Facts

  • Expandable a door at a time for a total capacity of 256 doors per site and 65,000 users total.
  • Cascade up to 128 controllers via an RS-485 link with a maximum distance of 4000 feet (1219.2 m) between controllers in a loop.

  • Further Details

  • Locate controller up to 500 feet (152.4 m) from the reader.
  • PXL-510 versions include an extra serial port for adding alarm control and reporting capabilities.
  • Easy to manage with free Doors Access Control Software. For questions about the software, contact our FREE Tech Support.
  • For extra security, order enclosure models, which are lockable.
  • Models available for Wiegand compatible readers.
  • TCP/IP port for remote control and an RS-232 port for local management.
  • Make connections easily via quick-connect screwdown wiring blocks.
  • Uses an onboard lithium battery and a RISC-based processor for system memory.
  • Connect multiple sites via the the optional LAN Interface (LAN-520).

    For sophisticated access control for up to 256 doors at a single site and thousands of doors spread over a number of sites, order this advanced controller platform. The Tiger II Controller Platform includes controller boards and powerful yet easy-to-use Doors™ software for managing access control for all entrances in the system.

    Want to give cardholders the ability to disarm an alarm system without the need to punch in a code at an alarm panel? With the PXL-510P and PXL-510W versions of Tiger II, you can. By using the Doors Software, you can set a reader to automatically recognize authorized proximity cardholders and deactivate an alarm as they enter. You don’t have to run to a keypad to prevent a false alarm!

    The Tiger II Controller Platform itself contains all the necessary input/output functionality necessary to manage a single door—whether you need lock-relay, door-sense, or request-to-exit capabilities—and can be connected to two readers as well as provide alarm output.

    To expand your access control, each controller board has an RS-485 port for linking to other Tiger II boards. In all, you can connect up to 128 controllers in a loop configuration.

    For expanding the system across an existing network, order the optional Tiger II LAN Port Option (available separately). It plugs into the controller’s RS-232 serial port and converts serial data to IP data for transmission over Ethernet. That way, you can link to thousands of controllers. You can also use the RS-232 port to connect a PC that communicates with the first Tiger II Controller in the network.

    Also available are 12-VDC power supplies, a 12-VDC battery backup, a plug-in expansion board for adding more inputs and outputs, and an LCD module that provides helpful diagnostic information from the Tiger II board during installation (all ordered separately). You can also use the Tiger II Controllers with our Entraguard systems to combine access control with telephone entry capabilities. Also, be sure to order your proximity card readers and cards.

  • Technical Specifications for Tiger II Controller Platforms, with Enclosure:

    Warranty — 1 year


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Tiger II Controller Platforms, with Enclosure:

    Product Data Sheets


    Connect your Tiger II Controller Platforms, with Enclosure with:

    Accessory: KPS-8

    Tiger II Controller 12-VDC Battery Backup

    Tiger II Controller 12-VDC Battery Backup

    Accessory: KPS-4

    Tiger II Controller Power Supplies, 12-VDC/2 A

    Tiger II Controller Power Supply, 12-VDC/2 A

    Accessory: SB-593

    Tiger II Controller Expansion Board

    Tiger II Controller Expansion Board

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.
