Industrial > Testers

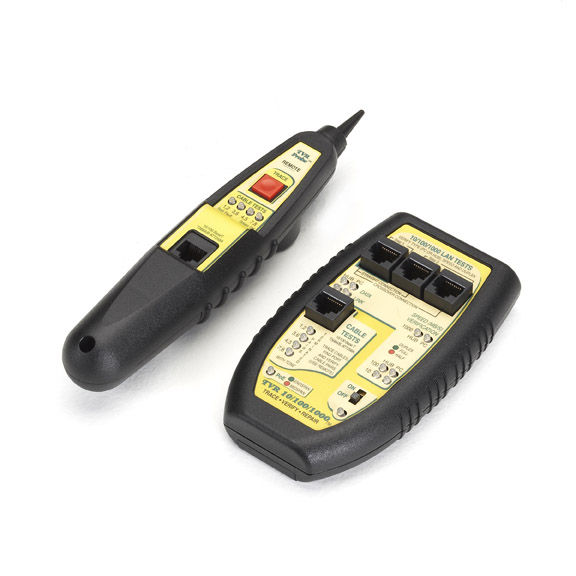

click photo to enlarge

TS029A-R5

Photo may show similar product

Other views

TVR 10/100/1000 Tester

Get BIG 10BASE-T, 100BASE-T, and 1000BASE-T handheld testing with a small price tag!

TS029A-R5

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Performs verification for 10/100/1000BASE-T hubs and PCs.
  • Locates cables and ports.
  • Verifies terminated pairs in switches or PCs, wired pairs, and pair reversals.
  • Provides switch/PC identification.
  • Detects Power over Ethernet.

  • Description

    TVR 10/100/1000 Tester


    Quick Facts

  • Performs verification for 10/100/1000BASE-T hubs and PCs.
  • Locates cables and ports.
  • Verifies terminated pairs in switches or PCs, wired pairs, and pair reversals.
  • Provides switch/PC identification.
  • Detects Power over Ethernet.

  • Further Details

    The TVR 10/100/1000 Tester provides everything you need to verify and repair 10-, 100-, and 1000-Mbps copper Ethernet. The main unit that performs most tests such as LAN device type, LAN speed, duplex, and PoE. An additional probe enables you to locate cables or switch ports by detecting a tone generated by the handheld tester.

    The tester enables you to locate faulty switches, PCs, or cable connections that may be interfering with the performance of your 10/100/1000BASE-T network. You can even go inline between two devices to determine the final negotiated speed and duplex of the link. The TVR 10/100/1000 is designed for use by installers and repair people who are documenting legacy LANs, installing and repairing LANs, or expanding existing LANs.

    The TVR 10/100/1000 Tester is a multifunction tester:
  • Detects whether a device is a hub, switch, or PC.
  • Verifies the speed and duplex of a link, enabling you to spot network bottlenecks.
  • Includes a tone probe and tone generator for tracing cable and port locations.
  • Shows how cable pairs are wired and identifies straight-pinned and crossover configurations.
  • Determines the number of cable pairs required by a connected device.
  • Indicates the presence of Power over Ethernet and whether the power is endspan or midspan.


    What's Included:
  • Main tester unit
  • Remote probe unit
  • (2) RJ-45 to RJ-45 jumper cables
  • (2) 9-V batteries
  • Protective felt carrying case
  • User manual

  • Technical Specifications for TVR 10/100/1000 Tester:

    CE Approval — Yes
    Connectors — (4) RJ-45 jacks on tester
    Indicators — Tester: (15) LEDs;
    Remote: (4) LEDs
    Power — (2) 9-V alkaline batteries (included)
    Size — Tester: 5.5"H x 3.3"W x 1"D (14 x 8.4 x 2.5 cm);
    Remote: 7"H x 1"W x 0.8"D (17.8 x 2.5 x 2 cm)
    Weight — 0.5 lb. (0.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for TVR 10/100/1000 Tester:

    Product Data Sheets


    Connect your TVR 10/100/1000 Tester with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $20.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $39.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    TVR 10/100/1000 Tester TS029A-R5 $199.95

    SOHO Tester TS590A $110.95

    LanTest CAT5e Tester/Analyzer, LanTest CAT5e Tester/Analyzer, 1 Remote TS870A $184.95

    Net Tone Plus TS400A $199.95

    Wi-Net Detector TS950A $249.95



    Add to Cart

    Price: $199.95
