Datacom > Modems & CSUs

click photo to enlarge

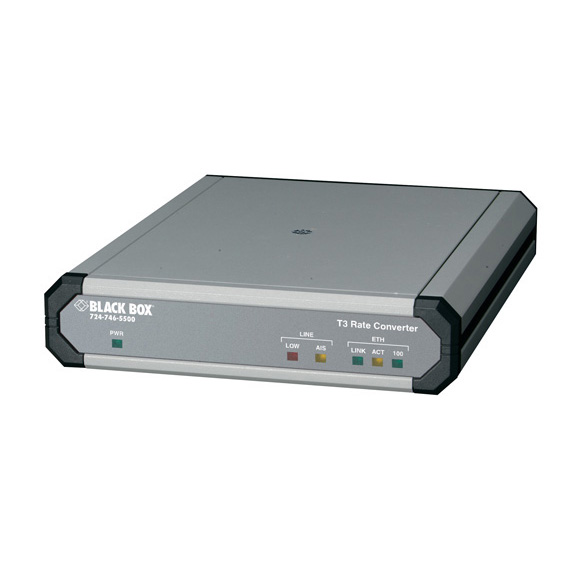

MT1103A-DC

Photo may show similar product

Other views

T3 Rate Converters, DC

Take interface conversion to extreme speeds.

MT1103A-DC


One year Warranty

Product Highlights

  • AC- and DC-powered models available.
  • Includes a built-in Ethernet bridge.

  • Description

    T3 Rate Converter, 10BASE-T/100BASE-T, DC


    Quick Facts

  • AC- and DC-powered models available.
  • Includes a built-in Ethernet bridge.

  • Further Details

    Take what’s fast and make it faster.
    If you want to take interface conversion to extreme speeds, this Rate Converter can connect your 10-Mbps Ethernet or 100-Mbps Fast Ethernet equipment to a single-channel 44.746-Mbps T3 service!

    A built-in Ethernet bridge with VLAN support enables virtual LAN connections. The Rate Converter performs frame filtering and forwarding at the rate of 150,000 frames per second, and the bridge causes no LAN delays.

    The T3 Rate Converter provides full control over multicast and broadcast messages. Autonegotiation enables a plug-and-play Ethernet connection without any additional configuration.

    Front- and back-panel LEDs indicate Alarm Indication Signal (AIS) and Loss of Signal (LOS) line conditions and provide information and status of the Ethernet/Fast Ethernet link. Clocking either can be received from the T3 line or done internally by the converter’s oscillator.


    Technical Specifications for T3 Rate Converters, DC:

    Clocking — Received, internal
    Line Impedance — Unbalanced: 75 ohms
    Connectors — (2) mini BNC coax F, (1) RJ-45
    Power — AC version: 100 to 240 VAC, 47 to 63 Hz;
    DC version: 20 to 70 VDC
    Size — 1.7"H x 7.6"W x 9.6"D (4.3 x 19.3 x 24.4 cm)
    NOTE: Ethernet over T1/E1 versions also available. For more information, contact our FREE Tech Support.

    NOTE: Must be used in pairs.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your T3 Rate Converters, DC with:
