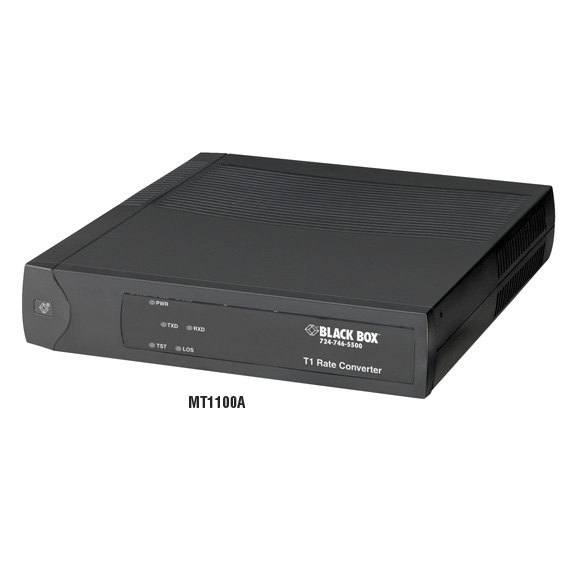

MT1100A

Photo may show similar product

Other views

T1 Rate Converters, AC

Take advantage of unframed T1 speed in a single channel.

MT1100A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Support unframed operation, enabling you to take advantage the 1.544-Mbps speed of T1.


  • Description

    T1 Rate Converters, V.35, AC


    Quick Facts

  • Support unframed operation, enabling you to take advantage the 1.544-Mbps speed of T1.

  • Further Details

  • Data transmission is synchronous and full duplex.
  • AC- and DC-powered models plus Rackmount Cards available.
  • Enable you to convert from V.35 or RS-530 to T1.
  • Feature two techniques of line coding each and three methods of clocking.


  • Two ways to T1 speed.
    Our T1 Rate Converters support unframed operation, enabling you to take advantage of T1’s 1.544-Mbps speed in a single channel. Data transmission is synchronous and full duplex.

    Two techniques of line coding can be used for T1 transmission: B8ZS or AMI. Line impedance is rated at 100 ohms across the T1 channel.

    Three timing methods can be used. Clocking can be received from the T1 line, managed externally from the network device connected on the other end of the V.35 or RS-530 link, or performed internally from the converter's oscillator.

    For diagnostics, local analog loopbacks can be activated from the T1 or DTE interfaces. Three front-panel LEDs show when data is transmitted to the link, when data is received from the link, and when no data is received from the link. A fourth LED indicates active loopback. A fifth LED shows when the unit is powered up.

    Three models each are available for T1 to V.35 conversion and T1 to RS-530 conversion. Choose from AC- or DC-powered standalone units or Rackmount Cards. The Rackmount Cards fit in our RackNest 2/14.



    Technical Specifications for T1 Rate Converters, AC:

    Clocking Received, internal, external
    Line Impedance Unbalanced: 100 ohms
    Connectors (1) RJ-48C and either (1) M/34 F or (1) DB25 F
    Power AC and Rackmount Card versions: 100 to 240 VAC, 47 to 63 Hz;
    DC version: -48 VDC
    Size 1.5"H x 7.4"W x 6.2"D (3.8 x 18.8 x 15.7 cm)
    NOTE: Ethernet over T1/E1 versions also available. For more information, contact our FREE Tech Support.

    NOTE: Must be used in pairs.

    The rackmount card versions work with:
    • RackNest 2/14 (RM110A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
