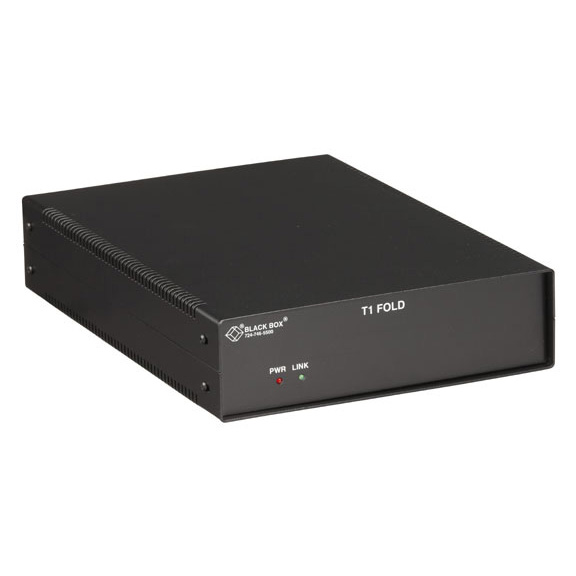

MT612A-ST

Photo may show similar product

Other views

T1 Fiber Optic Line Driver, Standalone, 850-nm Multimode

Link a T1 line at its demarcation point to multimode fiber optic cable for extra distance, high speed, and security.

MT612A-ST

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Convert T1 signals to fiber optic pulses.
  • Operates over multimode fiber optic cable.
  • Sends data up to 1.2 miles (2 km).
  • Uses an LED light source.

  • Description

    T1 Fiber Optic Line Driver, Standalone, 850-nm Multimode


    Quick Facts

  • Convert T1 signals to fiber optic pulses.
  • Operates over multimode fiber optic cable.
  • Sends data up to 1.2 miles (2 km).
  • Uses an LED light source.

  • Further Details

  • Uses an LED light source to send data up to 2 kilometers (1.2 mi.).
  • Provides high speed with security.
  • Supports AMI, B8ZS, and HDB3 line codes.

  • The phone company brings a T1 line to your building and terminates it. That's called the demarcation point. For a price, they'll extend the line from there to your T1 equipment. Or you can do it yourself with a T1 Fiber Optic Line Driver. Get the extra distance you need and immunity to electrical noise and surges with fiber cable.

    These drivers convert T1's electrical signals to fiber optic light pulses and maintain the speed, clarity, and data integrity of your T1 line. Framing transparency and selectable options enable transmission with AMI, HDB3, or B8ZS signals.

    The T1 Fiber Optic Line Driver is the economical T1 solution for 850-nm multimode fiber cable.



    Technical Specifications for T1 Fiber Optic Line Driver, Standalone, 850-nm Multimode:

    Compliance FCC Class A, Subpart B of Part 15; CSA; UL®
    Distance 1.2 mi. (2 km) maximum
    Fiber Type Multimode
    Humidity 15 to 90%, noncondensing
    MTBF Approximately 100,000 hours
    MTTR 20 minutes
    Operating Wavelength 850 nm
    Optic Launch Power (nominal) -10 dBm into 100-µ fiber; -14 dBm into 62.5-µm fiber
    Receiver Sensitivity (nominal) -28 dBm
    Speed 1.544 Mbps for T1
    Temperature Operating: +32 to +122° F (0 to +50° C);
    Storage: -4 to +158° F (-20 to +70° C)
    Interface T1 100-ohm twisted pair, balanced, on DB15 connector
    Connectors (1) DB15 F, (2) BNC F, (2) ST®
    Indicators (2) LEDs: (1) Power, (1) Link
    Power 115 VAC, 60 Hz, 5 W (230-VAC, 50-Hz versions on request)
    Dimensions 1.5"H x 6.5"W x 8.5"D (3.8 x 16.5 x 21.6 cm)
    Weight 5.5 lb. (2.5 kg)

    NOTE: Must be used in pairs.

    This product works with:
  • Ceramic Multimode Fiber Optic Patch Cable, ST–ST (EFN110)
  • T1 Cable, Straight-Pinned, RJ-48C/RJ-48C (ETNMRS01)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
