Datacom > Multiplexors

click photo to enlarge

MT1062-13-R2

Photo may show similar product

Other views

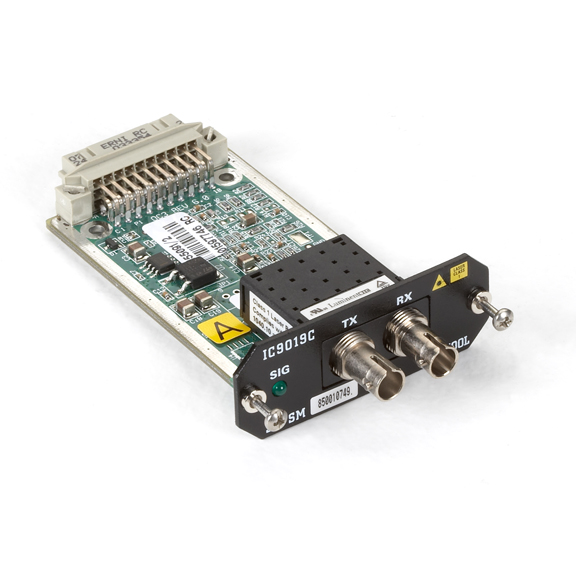

T1 Fiber Mux XL FIber Module, 1300-nm

Select one module for your fiber link—or choose two modules for redundancy.

MT1062-13-R2


No warranty available

Product Highlights

  • Add one or two fiber modules to your T1 Fiber Mux XL.
  • The 1310-nm Fiber Module (MT1062-13-R2) extends the range to 40 kilometers (24.9 mi.).
  • Enhance transmission security.
  • Provide immunity against electrical interference.
  • Front-panel LEDs indicate loss-of-signal frame and AIS on the fiber link.

  • Description

    T1 Fiber Mux XL FIber Module, 1300-nm


    Quick Facts

  • Add one or two fiber modules to your T1 Fiber Mux XL.
  • The 1310-nm Fiber Module (MT1062-13-R2) extends the range to 40 kilometers (24.9 mi.).
  • Enhance transmission security.
  • Provide immunity against electrical interference.
  • Front-panel LEDs indicate loss-of-signal frame and AIS on the fiber link.

  • Further Details


    This product works with:
  • T1 Fiber Mux XL (MT1060A-R2, MT1060A-DC-R2)
  • T1 4-Channel Module (MT1063-4T1)
  • Fast Ethernet Module (MT1065-FETH)
    Questions? Contact our FREE Tech Support.


  • Technical Specifications for T1 Fiber Mux XL FIber Module, 1300-nm:

    Distance (Maximum) 24.9 mi. (40 km)
    Fiber Type 9-/125-µm single-mode (1310 nm)
    Operating Environment Temperature: 32 to 113° F (0 to 45° C);
    Humidity: 0 to 90% noncondensing
    Power Coupled into Fiber 12 dBm
    Receiver Sensitivity -31 dBm
    Speed (Maximum) T1: 1.544 Mbps
    Connectors (1) pair of ST®
    Size 0.8"H x 2.3"W x 3.8"D (2 x 5.8 x 9.7 cm)
    Weight 0.06 lb. (0.03 kg)

    This product works with:
  • T1 Fiber Mux XL (MT1060A-R2, MT1060A-DC-R2)
  • T1 4-Channel Module (MT1063-4T1)
  • Fast Ethernet Module (MT1065-FETH)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for T1 Fiber Mux XL FIber Module, 1300-nm:

    Product Data Sheets

    Black Box Explains


    Connect your T1 Fiber Mux XL FIber Module, 1300-nm with:
