Datacom > Multiplexors

click photo to enlarge

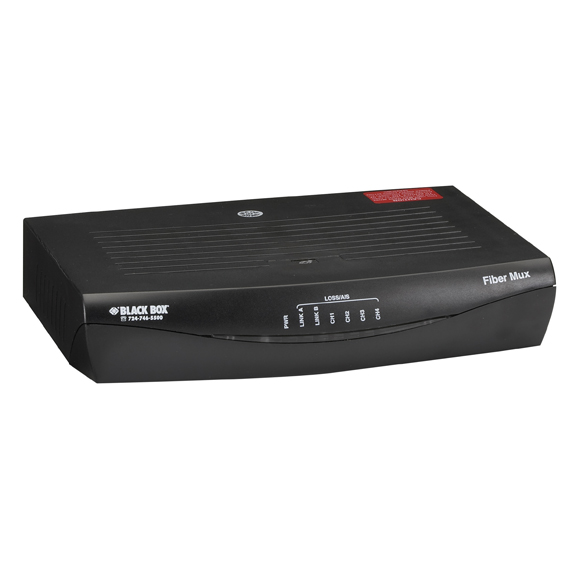

MT1000A-13-R4

Photo may show similar product

Other views

T1 Fiber Mux, Single-Mode, 1310-nm

Multiplex four T1 channels plus 10/100 Ethernet traffic over secure fiber optic cable.

MT1000A-13-R4

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Transmits as far as 47 kilometers (29.2 mi.).
  • Each channel has its own set of indicators for link status.
  • Manage and configure via its RS-232 interface or Ethernet port.

  • Description

    T1 Fiber Mux, Single-Mode, 1310-nm


    Quick Facts

  • Transmits as far as 47 kilometers (29.2 mi.).
  • Each channel has its own set of indicators for link status.
  • Manage and configure via its RS-232 interface or Ethernet port.

  • Further Details

  • Fiber provides security and immunity against EMI/RFI and ground loops.
  • Multiplex four T1 lines onto one duplex fiber optic line.
  • Comprehensive diagnostics and testing.
  • Also available for multimode fiber.

  • The Black Box® T1 Fiber Mux gives you an inexpensive way to combine four T1 channels for extension over a campus or enterprise network as far as 47 kilometers (29.2 mi.) over single-mode cable.

    Use the mux to transparently extend Ethernet, voice, data, and video services over an interference-free, highly secure fiber optic link. Because the mux transfers each T1 signal independently, you can set each channel to a different clock source.

    The mux also offers comprehensive test and diagnostic features, including local and remote loopbacks on the uplink interface as well as each T1 tributary link. You also get AIS alarm generation and recognition, and dry contact relays for major and minor alarms.


    This product works with:
    • Single-Mode, 9.0-Micron Duplex Fiber Optic Cable (EFN310-STST)
    • T1 Cable, Straight-Pinned (ETNMSR01)
    Questions? Contact our FREE Tech Support.

    NOTE: Must be used in pairs.

    NOTE: An optional kit for mounting a single mux or two muxes (side by side) in a standard rack is also available. To order, contact our FREE Tech Support.

    NOTE: For rackmounting options, call Tech Support.


    Technical Specifications for T1 Fiber Mux, Single-Mode, 1310-nm:


    Distance (Maximum) — 29.2 mi. (47 km)
    Fiber Type — 9-/125-µm single-mode
    Line Code — B8ZS
    Line Impedance — 100 ohms
    Operating Environment — Temperature: 32 to 122° F (0 to 50° C);
    Humidity: Up to 90% noncondensing
    Optical Budget — 16 dB
    Power Coupled into Fiber — -18 dBm
    Receiver Dynamic Range — 24 dB
    Receiver Input Power (Maximum) — -10 dBm
    Receiver Sensitivity — -34 dBm
    Speed (Maximum) — Line: 1.544 Mbps;
    Control port: 38.4 kbps
    Transmitter Type — Laser
    Connectors — Alarm: (1) DB9 F;
    Control ports: (1) DB9 F, async RS-232 (DTE); (1) RJ-45 (10BASE-T);
    Fiber: (1) pair of ST®;
    T1 channels: (4) RJ-48C
    Power — Redundant power supply: 100 to 240 VAC, 50 to 60 Hz, 24 W, or -40 to -70 VDC
    Size — 1.75"H (1U) x 17"W x 8.2"D (4.4 x 43.2 x 20.8 cm)
    Weight — 4.4 lb. (2 kg)
    This product works with:
    • Single-Mode, 9.0-Micron Duplex Fiber Optic Cable (EFN310-STST)
    • T1 Cable, Straight-Pinned (ETNMSR01)
    Questions? Contact our FREE Tech Support.

    NOTE: Must be used in pairs.

    NOTE: An optional kit for mounting a single mux or two muxes (side by side) in a standard rack is also available. To order, contact our FREE Tech Support.

    NOTE: For rackmounting options, call Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for T1 Fiber Mux, Single-Mode, 1310-nm:

    Manuals

    • T1 Fiber Mux, Multimode, 850-nm
      Installation and User Guide (12/8/2013)

    Product Data Sheets

    Black Box Explains


    Connect your T1 Fiber Mux, Single-Mode, 1310-nm with:

    Accessory: EFN310-001M-STST

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, ST–ST, PVC, 1-m (3.2-ft.)

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, ST–ST, PVC, 1-m (3.2-ft.)

    Accessory: ETNMSR01-0005

    T1 Cable, RJ-48C/RJ-48C, 5-ft. (1.5-m)

    T1 Cable, RJ-48C/RJ-48C, 5-ft. (1.5-m)

    Accessory: RM1001

    T1/E1 Fiber Mux Rackmount Kit

    T1/E1 Fiber Mux Rackmount Kit

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $90.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $179.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price! That's getting three years for the price of two.

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    T1 Fiber Mux, Single-Mode, 1310-nm MT1000A-13-R4 $899.95

    T1 Fiber Mux, Multimode, 850-nm MT1000A-85-R4 $889.95
