Datacom > Multiplexors

click photo to enlarge

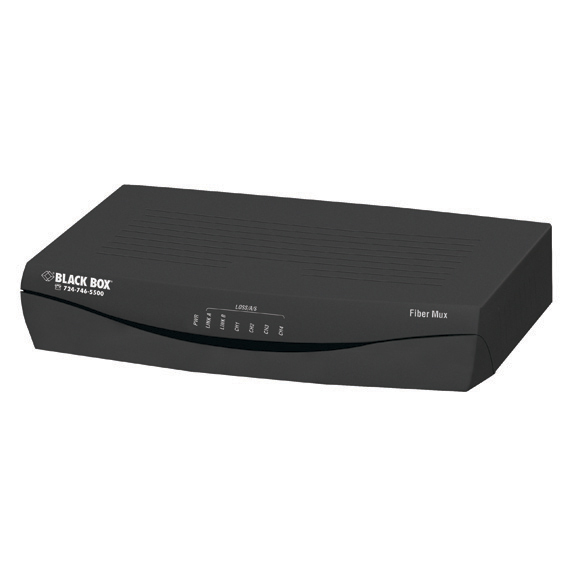

MT1000A-85-R4

Photo may show similar product

Other views

  • MT1000A-85-R4
  • MT1000A-85-R4

T1 Fiber Mux, Multimode, 850-nm

Multiplex four or more T1 channels over secure fiber optic cable.

MT1000A-85-R4

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Multiplex four T1 lines onto one duplex fiber optic line.
  • Secure fiber optic communications.


    • Description

    T1 Fiber Mux, Multimode, 850-nm


    Quick Facts

  • Multiplex four T1 lines onto one duplex fiber optic line.
  • Secure fiber optic communications.

    • Further Details

  • Manage through an RS-232 or Ethernet connection.
  • Comprehensive diagnostics and testing.
  • Also available for single-mode fiber.


    • Combine four T1 channels over a single fiber optic link with a pair of T1 Fiber Muxes. The multimode T1 mux offers simple and low-cost connectivity at up to 6.9 miles (11.1 km).

    With fiber optics, your T1 communications also receive the benefits of security, immunity against EMI and RFI, and protection against the harmful effects of ground loops.

    This 850-nm version uses 62.5-/125-µm multimode fiber optic cable.

    Each of the four T1 ports has its own set of indicators that show link status. If you have fewer than four lines running into a mux, you can disable alarm indications normally generated by an unused port.

    Comprehensive diagnostics and testing is included—there’s an automatic self-test on power-up to local and remote loopbacks. Manage the mux by connecting an ASCII terminal to its RS-232 port or by connecting it to an Ethernet network via its 10BASE-T port.

    For a modular, customizable solution, see our T1 or E1 Fiber Mux XL (MT1060A-R2, etc.) models.

    NOTE: For rackmounting options, call Tech Support.

    This product works with:
  • Premium Ceramic, Multimode, 62.5-Micron Fiber Optic Patch Cable (EFN110-STST)
  • T1 Cable, Straight-Pinned (ETNMSR01)
    • Questions? Contact our FREE Tech Support.

    NOTE: For rackmounting options, call Tech Support.


    Technical Specifications for T1 Fiber Mux, Multimode, 850-nm:

    Distance (Maximum) — 6.9 mi. (11.1 km)
    Fiber Type — 62.5-/125-µm multimode
    Line Code — B8ZS
    Line Impedance — 100 ohms
    Operating Environment — Temperature: 32 to 122° F (0 to 50° C);
    Humidity: Up to 90% noncondensing
    Optical Budget — 14 dB
    Power Coupled into Fiber — -18 dBm
    Receiver Dynamic Range — 22 dB
    Receiver Input Power (Maximum) — -10 dBm
    Receiver Sensitivity — -32 dBm
    Speed (Maximum) — Line: 1.544 Mbps;
    Control port: 38.4 kbps
    Transmitter Type — LED
    Connectors — Alarm: (1) DB9 F;
    Control ports: (1) DB9 F, async RS-232 (DTE); (1) RJ-45 (10BASE-T);
    Fiber: (1) pair of ST®;
    T1 channels: (4) RJ-48C
    Power — 100–240 VAC, 50–60 Hz, 24 W redundant power supply
    Size — 1.75"H (1U) x 17"W x 8.2"D (4.4 x 43.2 x 20.8 cm)
    Weight — 4.4 lb. (2 kg)
    This product works with:
  • Premium Ceramic, Multimode, 62.5-Micron Fiber Optic Patch Cable (EFN110-STST)
  • T1 Cable, Straight-Pinned (ETNMSR01)
    • Questions? Contact our FREE Tech Support.

    NOTE: For rackmounting options, call Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for T1 Fiber Mux, Multimode, 850-nm:

    Manuals

    • T1 Fiber Mux, Multimode, 850-nm
      Installation and User Guide (12/8/2012)
      httpftp

    Product Data Sheets

    Black Box Explains


    Connect your T1 Fiber Mux, Multimode, 850-nm with:

    Accessory: EFN110-001M-STST

    ST–ST, Duplex, Riser, 1-m (3.2-ft.)

    Premium Ceramic, Multimode, 62-5-Micron Fiber Optic Patch Cables, ST–ST, Duplex, Riser, 1-m (3.2-ft.)

    » more info

    Accessory: ETNMSR01-0005

    T1 Cable, RJ-48C/RJ-48C, 5-ft. (1.5-m)

    T1 Cable, RJ-48C/RJ-48C, 5-ft. (1.5-m)

    » more info

    Accessory: EFN5009

    ST–ST, PVC, Custom Lengths

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, ST–ST, PVC, Custom Lengths

    » more info

    Accessory: RM1001

    T1/E1 Fiber Mux Rackmount Kit

    T1/E1 Fiber Mux Rackmount Kit

    » more info

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $89.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $177.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    T1 Fiber Mux, Multimode, 850-nm MT1000A-85-R4 $889.95

    T1 Fiber Mux, Single-Mode, 1310-nm MT1000A-13-R4 $899.95
