Datacom > Modems and CSUs

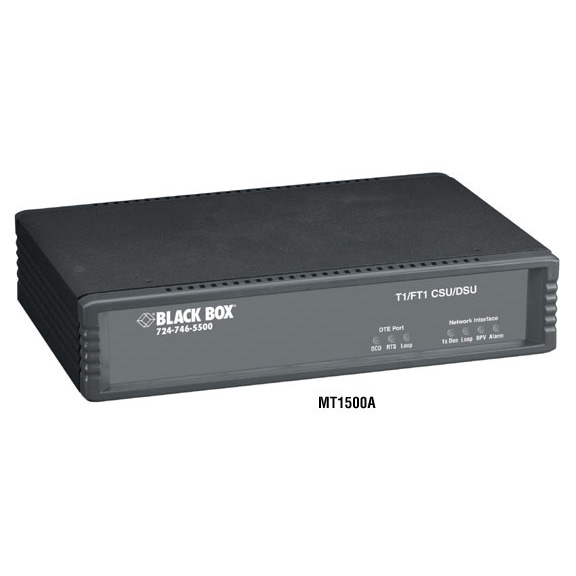

click photo to enlarge

MT1500A

Photo may show similar product

Other views

T1/FT1 CSU/DSU, V.35

Process high-speed T1 data—and even share bandwidth—with one of these CSU/DSUs.

MT1500A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • High reliability.
  • Comply with full and fractional T1, and they support Frame Relay services.

  • Description

    T1/FT1 CSU/DSU, V.35


    Quick Facts

  • High reliability.
  • Comply with full and fractional T1, and they support Frame Relay services.

  • Further Details

  • Has a V.35 female connector for the data port.
  • Also has a DB9 (DCE) console port, which enables a connection for local and remote maintenance.
  • Includes (1) 6-foot (1.8-m) RJ-48C cable.


  • Technical Specifications for T1/FT1 CSU/DSU, V.35:

    Clocking Network interface or internal oscillator
    Data Rate 64 kbps to 1.544 Mbps
    Line Encoding AMI/B8ZS and framing D4 or ESF
    Line Type T1
    MTBF 72.053 hours
    Operation Full-duplex
    Protocol Synchronous
    Interface V.35 F
    Connectors (1) M/34 F, (1) RJ-48C, (1) DB9 F (DCE), (1) barrel plug
    Size 2"H x 8.5"W x 5.5"D (5 x 21.5 x 14 cm)
    Weight 3 lb. (1.4 kg)
    NOTE: For rackmount and DC versions, contact our FREE Tech Support.

    This product works with:
  • V.35 Interface Cable, Male/Female (EYN450T-MF)
  • DB9 Extension Cable (with EMI/RFI Hoods) (EDN12H)
  • RS-530 Data Cable, Male/Female (EVNT530-MF, EVN530-MF)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for T1/FT1 CSU/DSU, V.35:

    Product Data Sheets

    Application Diagrams


    Connect your T1/FT1 CSU/DSU, V.35 with:

    Accessory: EDN12H-0025-MF

    DB9 Extension Cable with EMI/RFI Hoods, Beige, Male/Female, 25-ft. (7.6-m)

    DB9 Extension Cable with EMI/RFI Hoods, Beige, Male/Female, 25-ft. (7.6-m)

    Accessory: EVNT530-0010-MM

    RS-530 Data Cable, 25-Pin (12 1/2 Pairs), Pinning 1–25, Male/Male, 10-ft. (3.0-m)

    RS-530 Data Cable, 25-Pin (12 1/2 Pairs), Pinning 1–25, Male/Male, 10-ft. (3.0-m)

    Accessory: MT1510A-35

    Managed T1/FT1 CSU/DSUs, V.35

    Managed T1/FT1 CSU/DSUs, V.35
