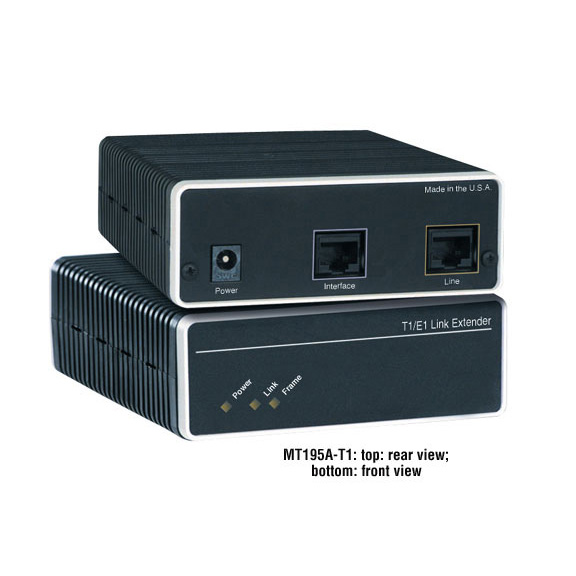

MT195A-T1

Photo may show similar product

Other views

T1 Extender for Copper, 2-Pack

This T1 extender sends your data up to 3.5 miles (5.6 km).

MT195A-T1

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Extend T1 lines to 3.5 miles (5.6 km) over a single twisted pair.
  • Ideal for T1 backhauls from a remote site, relocation, extension across a campus, and last-mile TDM delivery.

  • Description

    T1 Extender for Copper, 2-Pack


    Quick Facts

  • Extend T1 lines to 3.5 miles (5.6 km) over a single twisted pair.
  • Ideal for T1 backhauls from a remote site, relocation, extension across a campus, and last-mile TDM delivery.

  • Further Details

  • Plug-and-play.
  • Put one unit on each side of the dry copper pair, connect your T1 devices, and go.
  • Use only two polarity-insensitive pins so you can connect either wire to either pin.
  • Operate in Clear Channel mode to easily transport voice and data circuits (F-bit included.)
  • Check status via the front-panel LEDs.
  • Rackmount panels are also available.

  • Requiring zero configuration, this plug-and-play T1 extender communicates over voice-grade twisted-pair cabling, enabling you to get more distance with fewer copper pairs.

    Extend your T1 circuits beyond their typical reach and get more from your copper cabling. BLACK BOX® T1 Extenders for Copper extend T1s as far as 3.5 miles (5.6 km) and require just a single pair of wires to operate.

    Save by making the most of your copper.
    With these extenders, you can increase connections from the demarc to equipment in your building, and save money by linking remote PBXs over existing dry copper. If you're a service provider, you can use the extenders to reach a larger subscriber base with less copper and at longer distances—without the need for repeaters!

    Plug and play with no user settings required.
    Plus, they're easy to set up and use, delivering TDM circuit extension with no configuration. Just take them out of the box, place them on opposite sides of the dry copper, and plug in your T1 or E1 line. The circuit is now ready for communications. Because the two active pins on the extenders' RJ-45 connector are polarity sensitive, you don't even have to worry about which wire is connected to the line interface.

    Easy to troubleshoot.
    Intuitive LEDs alert you to any possible line or circuit problems. For instance, a solid green Link LED indicates a good end-to-end link, and a solid green Frame LED indicates valid framing on the link.

    Save space and rackmount multiple units.
    You can also stack and organize your extenders and other equipment in the optional 19" Universal Rackmount Panel (ME330-2, ME330-10; sold seperately). Each slot in the panel operates independently, and the rear side has slots for device power supplies.

    This product works with:
  • Universal Rackmount Panels for T1 and E1 Extenders for Copper (ME330-2, etc.)
  • T1 Cable (ETNMSR01, etc.)
  • CAT5 Unshielded 100-MHz Solid Bulk Cable (EYN717A, etc.)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for T1 Extender for Copper, 2-Pack:

    Clocking — CO unit: Network clock;
    CPE unit: Receive recover
    Distance — 3.5 mi. (5.6 km)
    Line Coding — 16-constellation TC-PAM
    Speed (Maximum) — 1.544 Mbps
    CE Approval — Yes
    Connectors — (1) RJ-45 using Pins 4 & 5, (1) RJ-48C
    Indicators — Power, Link, Frame
    Power — External supply: 90–220 VAC, 50–60 Hz
    Size — 4.7"H x 1.5"W x 5"D (11.9 x 3.8 x 12.7 cm)

    This product works with:
  • Universal Rackmount Panels for T1 and E1 Extenders for Copper (ME330-2, etc.)
  • T1 Cable (ETNMSR01, etc.)
  • CAT5 Unshielded 100-MHz Solid Bulk Cable (EYN717A, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
