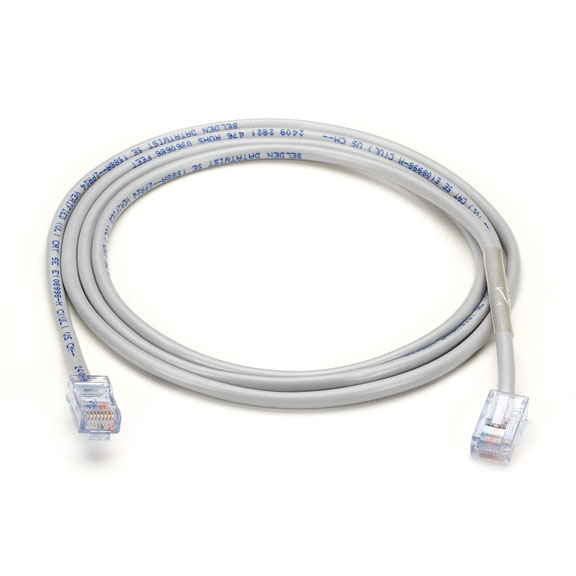

T1 Cable - RJ-48C to RJ-48C, Crossed-Pinning, 5-ft. (1.5-m)

The right cable for high-speed T1 connections.

ETNMR01-0005

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Connects your T1 CSU/DSU.
  • PVC construction.
  • Guaranteed for life!


  • Further Details

    Cross-Pinning, RJ-48C—RJ-48C:
    1—4 Orange/White
    2—5 White/Orange
    3—3 NC
    4—1 Blue/White
    5—2 White/Blue
    6—6 NC
    7—7 NC
    8—8 NC

    NOTE: For custom lengths and plenum jackets, contact our FREE Tech Support.

    Approvals NEC/(UL): CM, UL444;
    CEC/(UL): CM;
    EUCE Mark;
    RoHS;
    NEC/(UL): CM, UL444;
    NEMA: WC-63.1, CAT5e, UL-Verified;
    UL Flame Test: UL 1685 4L Loading;
    CSA Flame Test: FT1;
    UL: E108998M
    Cable Type CAT5e unbonded pair, unshielded
    ConductorsSolid copper
    Connectors(2) RJ-45C Male
    Delay 45 ns/100 m
    Diameter 0.183" (4.6 mm)
    Material Jacket: Gray, PVC;
    Insultation: Polyoletin
    Mutual Capacitance 15 pF/ft.
    Number of Conductors 2-pair (blue/white blue and orange/white orange)
    Resistance 9.38 ohms/100-m @ 20C
    Voltage 300 V RMS, maximum
    Wire Gauge 24 AWG

    NOTE: For custom lengths and plenum jackets, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Black Box Explains


    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The T1 Cable - RJ-48C to RJ-48C, Crossed-Pinning, 5-ft. (1.5-m) comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    T1 Cable - RJ-48C to RJ-48C, Crossed-Pinning, 10-ft. (3.0-m) ETNMR01-0010 $21.95

    T1 Cable - RJ-48C to RJ-48C, Crossed-Pinning, 25-ft. (7.6-m) ETNMR01-0025 $32.95

    T1 Cable, DB15 Male/RJ-48C, Crossed-Pinning, 5-ft. (1.5-m) ETNMR03-0005 $20.95

    T1 Cable, RJ-48C/RJ-48C, 5-ft. (1.5-m) ETNMSR01-0005 $17.95

    T1 Cable, RJ-48C/RJ-48C, 10-ft. (3.0-m) ETNMSR01-0010 $21.95

    T1 Cable, RJ-48C/RJ-48C, 25-ft. (7.6-m) ETNMSR01-0025 $32.95

    T1 Cable, 10-ft. (3.0-m) ETNMSR02-0010 $24.95

    T1 Cable, DB15 Male/RJ-48C, Straight-Pinning, 5-ft. (1.5-m) ETNMSR03-0005 $20.95

    T1 Cable, DB15 Male/RJ-48C, Straight-Pinning, 10-ft. (3.0-m) ETNMSR03-0010 $23.95

    T1 Cable, DB15 Male/RJ-48C, Straight-Pinning, 25-ft. (7.6-m) ETNMSR03-0025 $31.95
