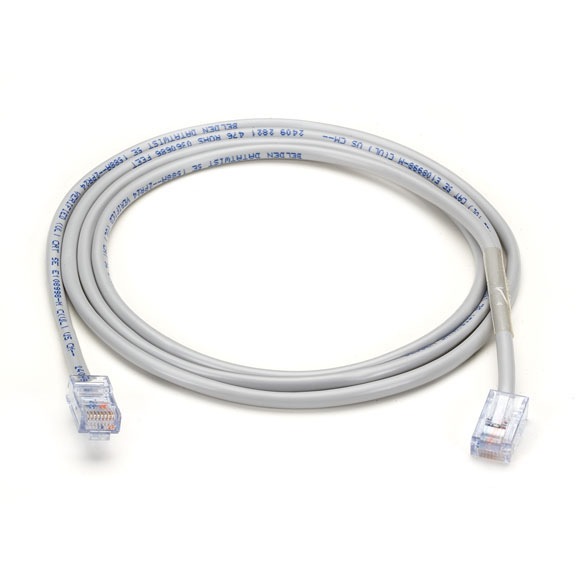

T1 Cable - RJ-48C to RJ-48C, Crossed-Pinning, 25-ft. (7.6-m)

The right cable for high-speed T1 connections.

ETNMR01-0025

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Connects your T1 CSU/DSU.
  • PVC construction.
  • Guaranteed for life!


  • Description

    T1 Cable - RJ-48C to RJ-48C, Crossed-Pinning, 25-ft. (7.6-m)


    Quick Facts

  • Connects your T1 CSU/DSU.
  • PVC construction.
  • Guaranteed for life!

  • Further Details

    Cross-Pinning, RJ-48C—RJ-48C:
    1—4 Orange/White
    2—5 White/Orange
    3—3 NC
    4—1 Blue/White
    5—2 White/Blue
    6—6 NC
    7—7 NC
    8—8 NC

    NOTE: For custom lengths and plenum jackets, contact our FREE Tech Support.


    Technical Specifications for T1 Cable - RJ-48C to RJ-48C, Crossed-Pinning, 25-ft. (7.6-m):

    Approvals NEC/(UL): CM, UL444;
    CEC/(UL): CM;
    EUCE Mark;
    RoHS;
    NEC/(UL): CM, UL444;
    NEMA: WC-63.1, CAT5e, UL-Verified;
    UL Flame Test: UL 1685 4L Loading;
    CSA Flame Test: FT1;
    UL: E108998M
    Cable Type CAT5e unbonded pair, unshielded
    ConductorsSolid copper
    Connectors(2) RJ-45C Male
    Delay 45 ns/100 m
    Diameter 0.183" (4.6 mm)
    Material Jacket: Gray, PVC;
    Insultation: Polyoletin
    Mutual Capacitance 15 pF/ft.
    Number of Conductors 2-pair (blue/white blue and orange/white orange)
    Resistance 9.38 ohms/100-m @ 20C
    Voltage 300 V RMS, maximum
    Wire Gauge 24 AWG

    NOTE: For custom lengths and plenum jackets, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
