Datacom > Modems and CSUs


click photo to enlarge

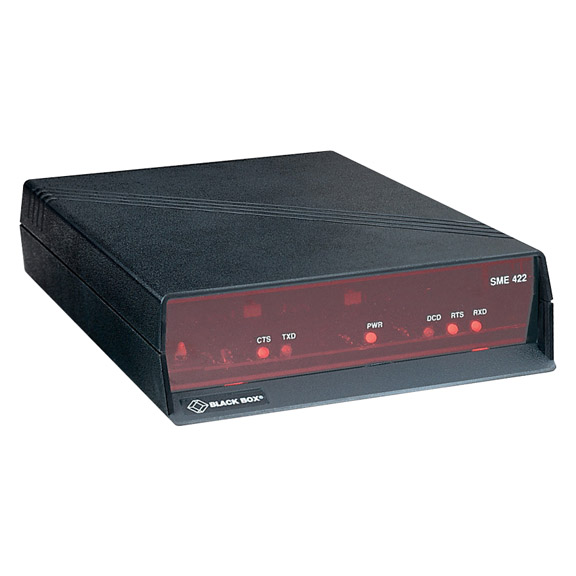

ME101A-R2

Photo may show similar product

Other views

Synchronous Modem Eliminator—RS-422/RS-449, DB37 Female Standalone

Transmit data as fast as 1.344 Mbps or up to 4000 feet at 64 kbps.

ME101A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Perfect for synchronous devices with an RS-422/RS-449 interface.
  • Distance up to 4000 feet (1219.2 m) at 64 kbps.
  • Speeds up to 1.344 Mbps at shorter distances.


  • Description

    Synchronous Modem Eliminator—RS-422/RS-449, DB37 Female Standalone


    Quick Facts

  • Perfect for synchronous devices with an RS-422/RS-449 interface.
  • Distance up to 4000 feet (1219.2 m) at 64 kbps.
  • Speeds up to 1.344 Mbps at shorter distances.

  • Further Details

  • Monitor data at a glance with front-panel LEDs.
  • Half- or full-duplex operation.

    With the Synchronous Modem Eliminator-RS-422/RS-449, you can establish communications between two synchronous devices (terminals, CPUs, etc.) at greater distances—without having to buy a modem or line driver.

    Configuration is easy. Just set the SME's internal straps (jumpers) and switches. Two options are configured with DIP switches: clock source and data rate. The SME can either provide internal clocking or use an external source, and it can be set to use a variety of data rates up to 1.344 Mbps. And, in addition to the DIP switches, the SME features other straps for customizing its interface leads.

    Once you configure the SME, installation is simple. Simply run cable from the devices to its rear-panel connectors, then plug it in.

  • Technical Specifications for Synchronous Modem Eliminator—RS-422/RS-449, DB37 Female Standalone:

    Operation Half- or full-duplex
    Protocol Synchronous
    CE Approval Yes
    Connectors (2) DB37 F
    Indicators (6) LEDs: TX, RX, DCD, RTS, CTS, and Power
    Power 115 VAC ±10%, 60 Hz
    Size 2.1"H x 8.8"W x 11.5"D (5.3 x 22.4 x 29.2 cm)
    Weight 2 lb. (0.9 kg)
    This product works with:
  • DB37 Interface Cable, Male/Male (EDN37T-MM, EDN37J-MM)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Synchronous Modem Eliminator—RS-422/RS-449, DB37 Female Standalone:


    Connect your Synchronous Modem Eliminator—RS-422/RS-449, DB37 Female Standalone with:

    Accessory: EDN37T-0010-MM

    DB37 Interface Cable, Male/Male, 10-ft. (3.0-m)

    DB37 Interface Cable, Male/Male, 10-ft. (3.0-m)
