Datacom > Extenders & Line Drivers

click photo to enlarge

ME729A-FSP

Photo may show similar product

Other views

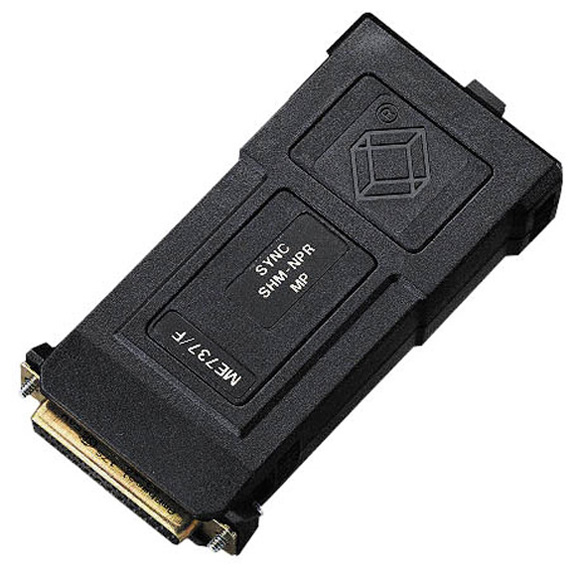

Sync Short-Haul Modem, Nonpowered, Multipoint (Sync SHM-NPR MP), DB25 Female

The choice for multipoint sync applications.

ME729A-FSP


One year Warranty

Product Highlights

  • Versatile—use in point-to-point or multipoint applications.
  • Switch-selectable clocking.
  • Optional built-in surge protection.

  • Description

    Sync SHM-NPR MP/5-Screw Terminal Block with Surge Protection, Female


    Quick Facts

  • Versatile—use in point-to-point or multipoint applications.
  • Switch-selectable clocking.
  • Optional built-in surge protection.

  • Further Details

  • Carrier mode is selectable.
  • DC transformer isolation eliminates the threat of ground loops.
  • An optional 600-watt surge-protection sentry guards your equipment from harmful electrical surges.

  • Technical Specifications for Sync Short-Haul Modem, Nonpowered, Multipoint (Sync SHM-NPR MP), DB25 Female:

    Distance (Maximum) — 8.5 mi. (13.6 km)
    Operation — 4-wire half- or full-duplex
    Protocol — Synchronous
    Speed — 19.2 kbps at 3.5 mi. (5.6 km)
    CE Approval — Yes
    Interface — RS-232 (DCE)
    Connectors — ME737A-M; (1) DB25 M, (1) 5-screw terminal block;
    ME737A-F, ME729A-FSP: (1) DB25 F, (1) 5-screw terminal block;
    ME734A-FSP: (1) DB25 F, (1) RJ-11;
    ME735A-FSP: (1) DB25 F, (1) RJ-45
    Power — Pins 4 or 20, 6 VDC
    These products work with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair, 1100-ft. (335.3-m), (EYN851A, etc.)
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
