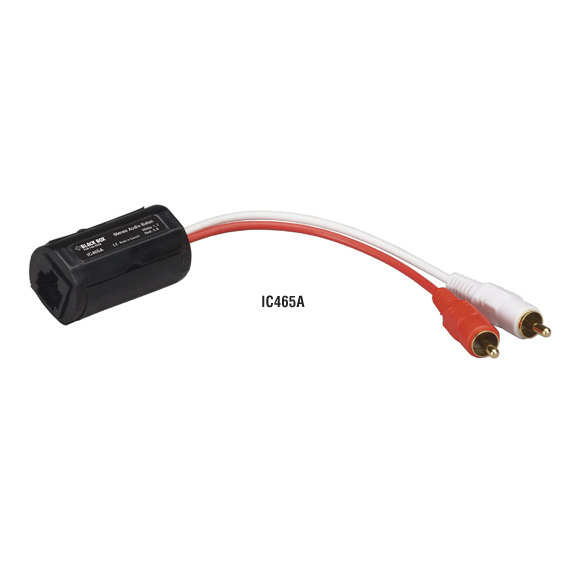

IC465A

Photo may show similar product

Other views

Stereo Audio Balun

Extend your midrange analog audio over inexpensive twisted-pair cable.

IC465A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Links stereo audio devices up to 5000 feet (1.5 m) apart using inexpensive UTP cable instead of coax cable.
  • Guaranteed for life!


  • Description

    Stereo Audio Balun, Analog


    Quick Facts

  • Links stereo audio devices up to 5000 feet (1.5 m) apart using inexpensive UTP cable instead of coax cable.
  • Guaranteed for life!

  • Further Details

  • Lightweight and compact—fits next to audio equipment.
  • Works with midrange audio frequency systems.
  • Extend the distance between input and output devices up to 5000 feet (1.5 km).

    Use inexpensive UTP cable instead of bulky coax to link an analog audio source to an integrated audio-video receiver or audio Hi-Fi system. These tiny baluns are ideal for multimedia configurations—use them in boardrooms, classrooms, auditoriums, home installations, and intercom systems.

    Link DVDs, VCRs, camcorders, audio mixers, audio matrix switchers, audio splitters, audio distribution amplifiers, boosters, satellite receivers, MPEG players, laptops, stereo audio amplifiers, audio switchers, integrated TV monitors, and other midrange audio equipment to an audio output device using a pair of Stereo Audio Baluns.

    The baluns operate in a point-to-point configuration at a distance of up to 5000 feet (1.5 km). They're compatible with other BLACK BOX® baluns, such as the Audio Balun, Analog (IC460A) and the CATV Balun (IC448A-R2).

  • Technical Specifications for Stereo Audio Balun:

    Bandwidth 60 Hz to 20 kHz at up to 1000 ft. (305 m); 100 Hz to 20 kHz at up to 5000 feet (1.5 km)
    Cable Required 24 AWG or lower solid copper unshielded twisted-pair (UTP) cable;
    Impedance: 100 ohms at 1 MHz;
    Maximum capacitance: 20 pf/ft.;
    Attenuation: 6.6 dB/1000 ft. (305 m) at 1 MHz
    Common Mode Rejection Greater than 60 dB at 1 kHz
    Distance (Maximum) 5000 ft. (1.5 m)
    Enclosure ABS fire-retardant plastic
    Impedance Audio source: Less than 600 ohms;
    Audio receiver: 10 kohms or greater
    Insertion Loss Per balun pair: Less than 1 dB
    Transmission Transparent to the user
    CE Approval Yes
    Connectors Audio: (2) RCA connectors on a 6" (15.2-cm) Y cable;
    UTP: (1) RJ-45
    Size 1.9" x 1" diameter plus (1) 6" (15.2-cm) audio Y cable
    Weight 0.1 lb. (< 0.1 kg)
    NOTE: Must be used in pairs.

    This product works with:
  • Audio Balun, Analog (IC460A)
  • CATV Balun (IC448A-R2)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
