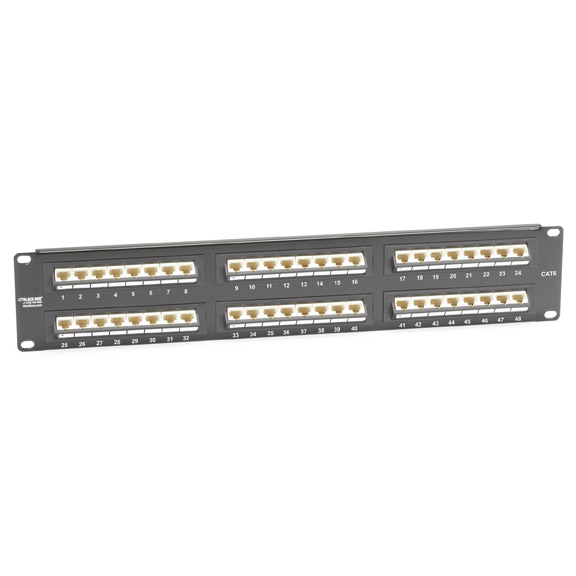

JPM648-45ANG-UU

Photo may show similar product

Other views

SpaceGAIN CAT6 45 Degree Angled-Port Patch Panels, 48-Port, Up-Up

Go up instead of out. Save up to 4" of cabling space by angling cables at 45°.

JPM648-45ANG-UU

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Close quarters? This patch panel features 45° angled connector modules to save space.
  • Save two, four, or more inches in front of every panel.
  • Choose from panels with ports that angle down and/or up.
  • Guaranteed for life!

  • Description

    SpaceGAIN CAT6 45 Degree Angled-Port Patch Panels, 48-Port, Up-Up


    Quick Facts

  • Close quarters? This patch panel features 45° angled connector modules to save space.
  • Save two, four, or more inches in front of every panel.
  • Choose from panels with ports that angle down and/or up.
  • Guaranteed for life!

  • Further Details

  • Ideal for retrofitting data cabinets.
  • Features angled RJ-45 connectors on one side and straight Krone/110 dual IDC connectors on the other.
  • Saves time and money by eliminating horizontal cable managers in front of the panel.
  • Great for strain relief and maintaining bend radius.
  • Meets or exceeds CAT6 requirements.
  • Rolled-metal construction provides strength for repeated punches.
  • Choose from CAT5e and CAT6 24- or 48-port models.

  • Save space and time in the data center with this 45° Angled-Port Patch Panel. The connectors tilt upward at a 45° angle making patching easier. Because the cables flow upward smoothly and don't protrude, you can save two, four, or more inches in front of every panel. You'll especially appreciate those extra inches when retrofitting cabinets with newer, deeper equipment. If you've run into situations where cabinet doors won't close or need to be removed to accommodate cable, you'll never go back to straight panels.

    Plus, because there is a nice upward cable flow, you can eliminate horizontal cable managers, saving a bundle of time and money. You also get the bonus of not having to worry about bend radius and strain relief.



    Technical Specifications for SpaceGAIN CAT6 45 Degree Angled-Port Patch Panels, 48-Port, Up-Up:

    Connectors (48) RJ-45 to (48) Krone/IDC 110
    Wiring T568A or T568B, 22 to 26 AWG, solid or stranded
    RoHS Yes
    Size 3.45"H (2U) x 19"W x 1.1"D (8.8 x 48.3 x 2.8 cm)
    Weight (0.9 kg)
    This product works with:
  • GigaBase® 350 CAT5e Patch Cable (UTP) (EVNSL80 series)
  • GigaBase 350 CAT5e Solid Bulk Cable Cable (UTP) (EYN850A-PB-1000 series)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for SpaceGAIN CAT6 45 Degree Angled-Port Patch Panels, 48-Port, Up-Up:

    Manuals

    • SpaceGAIN CAT6 45 Degree Angled-Port Patch Panels Manual
      Manual for the JPM624-45ANG-U and JPM624-45ANG-UU

    Pdf Drawings

    • SpaceGAIN CAT6 45 Degree Angled-Port Patch Panels (48-Port, Up-Up) PDF Drawing
      PDF Drawing for the JPM648-45ANG-UU
