EVNSL216-0001-90DS

Photo may show similar product

Other views

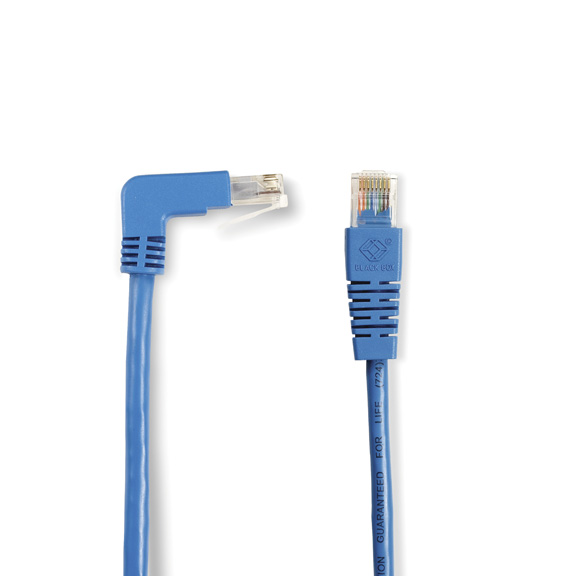

SpaceGAIN CAT6 250-MHz Angled Patch Cable (UTP), 90° Down–180° Straight, Blue, 1-ft. (0.3-m)

Tight fit? This cable has the right angle to save space.

EVNSL216-0001-90DS

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Features one 90° down connector and one 180° straight connector.
  • Saves lots of cabling space in packed enclosures.
  • Guaranteed for life!


  • Further Details

  • Makes neater desktop equipment connections.
  • For the perfect fit, choose from a whole family of cables with almost every combination of right angles: up, down, left, or right.
  • Cables extend straight up, down, or sideways.
  • Tab faces up, down, left, or right, depending on the cable.
  • The up and down cables are perfect for streamlining patch panel and switch connections.
  • Use the left- and right-angle cables for tight connections behind desks and next to walls.
  • Meets or exceeds CAT6 specifications.
  • Avoids excessive bends and reduces stress on the cable.
  • 250-MHz cable features four 24 AWG unshielded twisted wires, RJ-45 connectors, molded boots, and a PVC jacket.
  • Connectors feature gold-plated contacts.


  • NOTE: This cable works with all standard jacks, wallplates, and other RJ-45 hardware, including:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaTrue CAT6 Patch Panels
  • GigaTrue CAT6 Jacks
  • GigaTrue2 CAT6 Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
    Questions? Contact our FREE Tech Support.

  • Approvals RoHS
    Attenuation 29.9 dB/100 m at 100 MHz minimum; 49.5 dB/100 m at 250 MHz minimum
    Capacitance Unbalance (Pair to Ground) 330 pF/100 m maximum
    Conductor 26 AWG, stranded, bare copper
    Frequency Up to 250 MHz
    Impedance 100 ± 15 ohms at 250 MHz
    Insulation Foam-skin PE, 0.01" (0.27 mm)
    NEXT 44.3 dB/100 m at 100 MHz minimum; 38.3 dB/100 m at 250 MHz minimum
    PS-NEXT 42.3 dB/100 m at 100 MHz minimum; 36.3 dB/100 m at 250 MHz minimum
    Outer Diameter (Nominal) 0.23" (0.58 cm)
    Jacket PVC (CM)
    Shield Aluminum/Mylar® tape, tinned copper braid
    Standards UL ® E196163-Y; IEC 60332-1-2; ISO/IEC 11801 ed 2; EN 50288-2 2; TIA/EIA-568-B.2 CAT6

    NOTE: This cable works with all standard jacks, wallplates, and other RJ-45 hardware, including:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaTrue CAT6 Patch Panels
  • GigaTrue CAT6 Jacks
  • GigaTrue2 CAT6 Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

  • Accessory: JPM818A

    CAT6 Feed-Through Patch Panel, Unshielded, 24-Port

    CAT6 Feed-Through Patch Panel, Unshielded, 24-Port

    Accessory: JPM183A-R2

    Wallmount CAT6 Patch Panel with Universal Wiring, 12-Port

    Wallmount CAT6 Patch Panel with Universal Wiring, 12-Port

    Accessory: WP456

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    Accessory: WPT454

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The SpaceGAIN CAT6 250-MHz Angled Patch Cable (UTP), 90° Down–180° Straight, Blue, 1-ft. (0.3-m) comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    SpaceGAIN CAT6 250-MHz Angled Patch Cable (UTP), 90° Down–90° Down, Blue, 1-ft. (0.3-m) EVNSL216-0001-90DD $6.45

    SpaceGAIN CAT6 250-MHz Angled Patch Cable (UTP), 90° Down–90° Up, Blue, 1-ft. (0.3-m) EVNSL216-0001-90DU $6.45

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $6.45

    Quantity Available: 395

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.093 lbs.
    HxWxD: 0.5 x 4 x 4 in.
