Cables > Copper Patch Cables


click photo to enlarge

EVNSL24ES-0006-90DS

Photo may show similar product

Other views

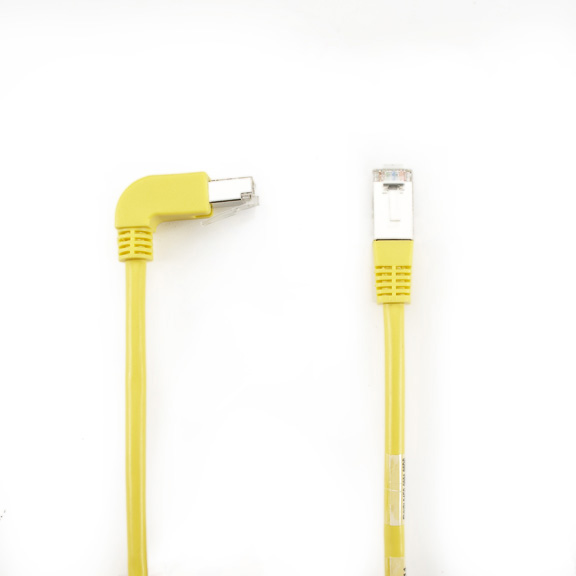

SpaceGAIN CAT5e Shielded, Stranded, 100-MHz Angled Patch Cable (F/UTP), 90° Down–Straight, Yellow, 6-ft. [1.8-m]

Tight fit? This cable has the right angle to save space.

EVNSL24ES-0006-90DS

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Close quarters? SpaceGAIN cables have the right angle to save space.
  • Shielded for noisy data center and desktop connections.
  • Guaranteed for life!


  • Description

    SpaceGAIN CAT5e Shielded, Stranded, 100-MHz Angled Patch Cable (F/UTP), 90° Down–Straight, Yellow, 6-ft. [1.8-m]


    Quick Facts

  • Close quarters? SpaceGAIN cables have the right angle to save space.
  • Shielded for noisy data center and desktop connections.
  • Guaranteed for life!

  • Further Details

  • For the perfect fit, choose from a whole family of cables with almost every combination of right angles: down/down, down/straight, and down/up.
  • Tab faces up or down depending on the cable.
  • The up and down cables are perfect for streamlining patch panel and switch connections.
  • Reduce cabling congestion in crowded cabinets.
  • Make neater desktop equipment connections.
  • Eliminate cable managers.
  • Ideal for use in data, audio, and video applications and for horizontal network connections up to 1000BASE-T.
  • Meets or exceeds CAT5e specifications.
  • 100-MHz cable features four 26 AWG unshielded twisted wires, RJ-45 connectors, shielded connector, and a PVC jacket.
  • Cable construction: Shielding: Mylar® tape, tinned-copper drain wire; aluminum/Mylar tape.
  • Unshielded cables are available in up, down, left and right connector combinations.
  • Available in other colors.


  • Technical Specifications for SpaceGAIN CAT5e Shielded, Stranded, 100-MHz Angled Patch Cable (F/UTP), 90° Down–Straight, Yellow, 6-ft. [1.8-m]:

    Attenuation 33.0 dB/100 m at 100 MHz
    Capacitance Unbalance (Pair to Ground) 330 pF/100 m maximum
    Conductor 26 AWG, stranded, bare copper
    Frequency Up to 100 MHz
    Impedance 100 ± 15 ohms at 100 MHz
    Insulation HDPE, 0.008" (0.22 mm)
    NEXT 35.0 dB/100 m at 100 MHz
    PS-NEXT 32.0 dB/100 m at 100 MHz
    Outer Diameter (Nominal) 0.22" (0.56 cm)
    RoHS Yes
    Jacket PVC (CM)
    Shield Mylar® tape, aluminum/Mylar tape
    Standards UL ® ; IEC 60332-1-2; ISO/IEC 11801 ed 2; EN 50288-2 2; TIA/EIA-568-B.2 CAT5e

    NOTE: This cable works with the following products. Questions? Contact our FREE Tech Support.

  • High-Density Shielded Patch Panel
  • CAT5e Shielded Jack
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
