Jacks, Panels, & Hardware > Copper Patch Panels


click photo to enlarge

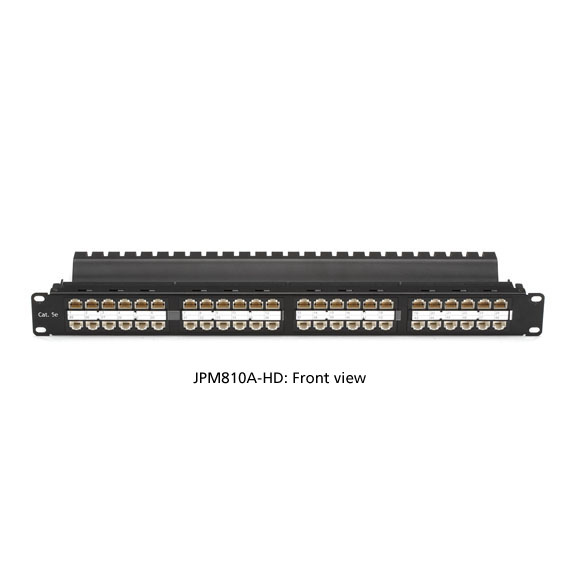

JPM810A-HD

Photo may show similar product

Other views

SpaceGAIN CAT5e High-Density Feed-Through Patch Panel, Unshielded, 48-Port, 1U

High density, fast patching—48 ports in only 1U.

JPM810A-HD

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Get 48 ports in only 1U of space.
  • Provides patching without punching down the wires to the ports.
  • Use this sturdy panel for high-density applications in relay racks or communications cabinets.
  • Guaranteed for life!


  • Further Details

  • Features 48 CAT5e RJ-45 to RJ-45 feed-through ports.
  • Meets Category 5e performance requirements.
  • Cable management bar helps support cables attached to the rear of the panel.

  • What's included:
  • CAT5e High-Density Feed-Through Patch Panel
  • (4) 10-32 cuphead screws
  • (4) 12-24 cuphead screws
  • (8) cable ties
  • (8) station ID labels
  • Questions? Contact our FREE Tech Support.

    This product works with:
    • GigaBase® CAT5e 350-MHz Patch Cable (EVNSL80 series, EVNSL51 series EVCRB80 series)
    Questions? Contact our FREE Tech Support.


    Connectors (48) RJ-45 in front and (48) RJ-45 in rear
    Standards TIA/EIA-568-B.2 CAT5e
    Size 1.75"H (1U) x 19"W x 6"D (4.4 x 48.3 x 15.3 cm)
    Weight 2.4 lb. (1.1 kg)
    This product works with:
    • GigaBase® CAT5e 350-MHz Patch Cable (EVNSL80 series, EVNSL51 series, EVCRB80 series)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Pdf Drawings

    • SpaceGAIN CAT5e High-Density Feed-Through Patch Panel (Unshielded, 48-Port, 1U) Drawing
      PDF Drawing for the JPM810A-HD.

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Videos


    Accessory: EVNSL80-0001

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, 1-ft. (0.3-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, 1-ft. (0.3-m)

    Accessory: EVNSL51-0001

    GigaBase 350 CAT5e Patch Cable, Basic Connectors, Blue, 1-ft. (0.3-m)

    GigaBase 350 CAT5e Patch Cable, Basic Connectors, Blue, 1-ft. (0.3-m)

    Accessory: EVCRB80-0001

    GigaBase 350 CAT5e Patch Cable (UTP), Snagless Boots, Crossover, 1-ft. (0.3-m), Gray

    GigaBase 350 CAT5e Patch Cable (UTP), Snagless Boots, Crossover, 1-ft. (0.3-m), Gray

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The SpaceGAIN CAT5e High-Density Feed-Through Patch Panel, Unshielded, 48-Port, 1U comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    CAT5e Feed-Through Patch Panel, Unshielded, 24-Port JPM808A-R2 $232.25

    CAT5e Feed-Through Patch Panel, Unshielded, 48-Port JPM810A-R2 $393.85

    CAT6 Feed-Through Patch Panel, Unshielded, 48-Port JPM820A $434.25

    SpaceGAIN CAT5e High-Density Feed-Through Patch Panel, Shielded, 48-Port, 1U JPM806A-HD $489.80

    SpaceGAIN CAT6 High-Density Feed-Through Patch Panel, Unshielded, 48-Port, 1U JPM820A-HD $442.35

    SpaceGAIN CAT6 High-Density Feed-Through Patch Panel, Shielded, 48-Port, 1U JPM816A-HD $525.15

    SpaceGAIN CAT5e 45 Degree Angled-Port Patch Panel, 48 Up Ports JPM5E48-45ANG-UU $181.75

    SpaceGAIN CAT5e 45 Degree Angled-Port Patch Panel, 48 Down/Up Ports JPM5E48-45ANG-DU $181.75

    SpaceGAIN CAT5e 45° Angled-Port Patch Panel, 24 Down Ports JPM5E24-45ANG $111.05

    SpaceGAIN CAT5e 45° Angled-Port Patch Panel, 48 Down Ports JPM5E48-45ANG $181.75



    Add to Cart

    Price: $400.95

    Quantity Available: 78

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 3.156 lbs.
    HxWxD: 2 x 7.5 x 21 in.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
