Jacks, Panels, & Hardware > Copper Patch Panels


click photo to enlarge

JPM5E48-ANG

Photo may show similar product

Other views

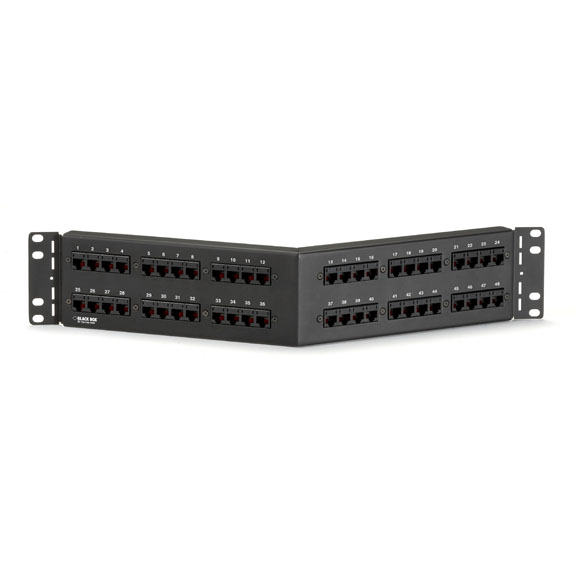

SpaceGAIN CAT5e Angled Patch Panel, 48-Port

Eliminate horizontal cable managers and save time—and money!

JPM5E48-ANG

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Angled design eliminates the need for horizontal cable managers.
  • Route cables directly into the ports.
  • Free up valuable rack space.
  • Guaranteed for life!


  • Description

    SpaceGAIN CAT5e Angled Patch Panel, 48-Port


    Quick Facts

  • Angled design eliminates the need for horizontal cable managers.
  • Route cables directly into the ports.
  • Free up valuable rack space.
  • Guaranteed for life!

  • Further Details

  • Ideal for high-density applications.
  • Forward angle is 128° to provide better cable organization.
  • Enables cables to flow from vertical cable management channels in an organized fashion.
  • Meets or exceeds all CAT6 standards.
  • Center balanced design provides performance to 100 MHz.
  • Third-party qualified for:
    CAT5e component performance (EIA/TIA-568-C.2);
    CAT5e channel performance (ISO 11801 Class D);
    PoE and PoE+ operation (IEEE 802.3at).
  • 100% factory tested.
  • Rolled-edge, 16-gauge steel construction provides superior strength to eliminate flexing during termination.
  • Supports T568A and T568B for universal wiring.
  • Meets the EIA/TIA-310-D rackmount standard.
  • Includes (4) 10-32 and (4) 12-24 screws.
  • Choose from CAT6 and CAT5e panels with 24 or 48 ports.

  • This patch panel works with:
    • GigaBase® CAT5e 350-MHz Solid Bulk Cable
    Questions? Contact our FREE Tech Support.


    Technical Specifications for SpaceGAIN CAT5e Angled Patch Panel, 48-Port:

    Connectors Front: (24) RJ-45;
    Rear: (24) 110 punchdown contacts
    Construction 16-gauge cold, rolled steel
    Nose Contact Material Beryllium copper with precious metal plating and nickel underplating
    Wiring Universal (T568A and T568B)
    Size 3.5"H (1U) x 19"W x 5"D (8.9 x 48.3 x 12.7 cm)
    Weight 2.5 lb. (1.1 kg)
    This patch panel works with:
    • GigaBase® CAT5e 350-MHz Solid Bulk Cable
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
