Cables > CAT5e

click photo to enlarge

EVNSL23E-0001-90DS

Photo may show similar product

Other views

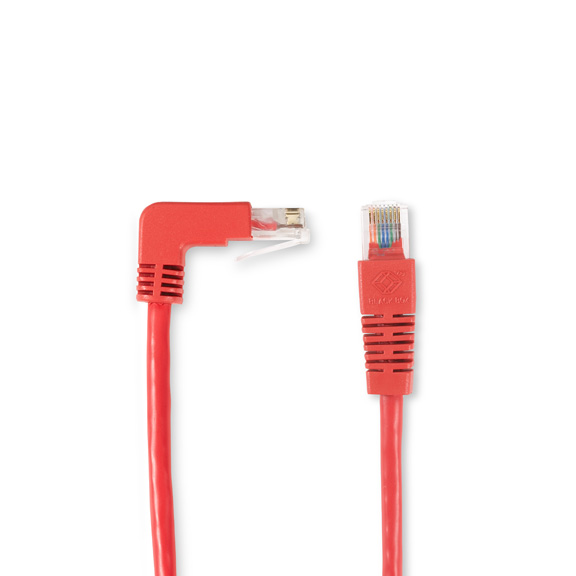

SpaceGAIN CAT5e 100-MHz Angled Patch Cable (UTP), 90° Down–180° Straight, Red, 1-ft. (0.3-m)

Tight fit? This cable has the right angle to save space.

EVNSL23E-0001-90DS


Lifetime Warranty

Product Highlights

  • Close quarters? This cable has the right angle to save space.
  • Features one 90° down connector and one 180° straight connector.
  • Saves lots of cabling space in packed enclosures.
  • Makes neater desktop equipment connections.
  • Guaranteed for life!

  • Description

    SpaceGAIN CAT5e 100-MHz Angled Patch Cable (UTP), 90° Down–180° Straight, Red, 1-ft. (0.3-m)


    Quick Facts

  • Close quarters? This cable has the right angle to save space.
  • Features one 90° down connector and one 180° straight connector.
  • Saves lots of cabling space in packed enclosures.
  • Makes neater desktop equipment connections.
  • Guaranteed for life!

  • Further Details

  • For the perfect fit, choose from a whole family of cables with almost every combination of right angles: up, down, left, or right.
  • Cables extend straight up, down, or sideways.
  • Tab faces up, down, left, or right, depending on the cable.
  • The up and down cables are perfect for streamlining patch panel and switch connections.
  • Use the left- and right-angle cables for tight connections behind desks and next to walls.
  • Meets or exceeds CAT5e specifications.
  • Avoids excessive bends and reduces stress on the cable.
  • 100-MHz cable features four 24 AWG unshielded twisted wires, RJ-45 connectors, molded boots, and a PVC jacket.
  • Connectors feature gold-plated contacts.
  • NOTE: This cable works with all standard jacks, wallplates, and other RJ-45 hardware. Questions? Contact our FREE Tech Support.

  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
    Questions? Contact our FREE Tech Support.


  • Technical Specifications for SpaceGAIN CAT5e 100-MHz Angled Patch Cable (UTP), 90° Down–180° Straight, Red, 1-ft. (0.3-m):

    Attenuation — 26.4 dB/100 m (328.1 ft.) @ 100 MHz
    Cable Type — 4-pair UTP
    Conductor Gauge — 24 AWG, stranded
    Delay Skew — 45 ns/100 m
    ELFEXT — 26.4 dB/100 m (328.1 ft.) @ 100 MHz
    Frequency — Up to 100 MHz
    Impedance — 100 ± 15 ohms
    Mutual Capacitance — 15 pF/ft.
    NEXT — 35.3 dB/100 m (328.1 ft.) @ 100 MHz
    Propagation Delay — 538 dB/100 m (328.1 ft.) @ 100 MHz
    PS-ELFEXT — 20.8 dB/100 m (328.1 ft.) @ 100 MHz
    PS-NEXT — 32.3 dB/100 m (328.1 ft.) @ 100 MHz
    Resistance — 45 ohms/1000 ft.
    Return Loss — 19.0 dB/100 m (328.1 ft.) @ 100 MHz
    Structural Return Loss — 16.0 dB/100 m (328.1 ft.) @ 100 MHz
    NOTE: This cable works with all standard jacks, wallplates, and other RJ-45 hardware. Questions? Contact our FREE Tech Support.

  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
