Infrastructure Hardware > Patch Panels

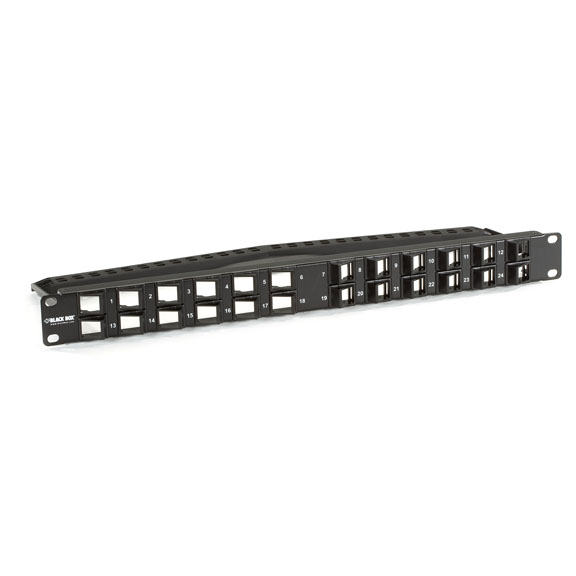

click photo to enlarge

JPMT1024-ANG

Photo may show similar product

Other views

SpaceGAIN 45° Angled-Port Side-Exit Multimedia Patch Panel, 24-Port

Crowded cabinets? Save space with this angled multimedia patch panel.

JPMT1024-ANG


Lifetime Warranty

Product Highlights

  • Close quarters? This patch panel features 45° angled connector modules to save space.
  • Ports angle to the side, reducing stress and eliminating the need for horizontal cable management.
  • Set up multiple applications—UTP, STP, fiber, and S-Video in one high-density multimedia panel.
  • Guaranteed for life!

  • Description

    SpaceGAIN 45° Angled-Port Side-Exit Multimedia Patch Panel, 24-Port


    Quick Facts

  • Close quarters? This patch panel features 45° angled connector modules to save space.
  • Ports angle to the side, reducing stress and eliminating the need for horizontal cable management.
  • Set up multiple applications—UTP, STP, fiber, and S-Video in one high-density multimedia panel.
  • Guaranteed for life!

  • Further Details

  • Save time and money by eliminating cable managers.
  • Great for strain relief and maintaining bend radius.
  • The rear of the panel has a removable cable support bar.
  • High-density design for optimum use of rack space.
  • 16-gauge rolled steel construction to stand up to repeated punches.
  • Ideal for retrofitting data cabinets.

  • Save space and time in the data center with this 45° Angled-Port Side-Exit Multimedia Panel. The connectors tilt to the side at a 45° angle making patching easier. Because the cables smoothly flow to the side and don't protrude, you can save some space in front of every panel.

    The angled-port patch panel has the flexibility, modularity, and connection density you need. It supports many media types, including jacks and adapters for copper UTP and STP, S-Video, and fiber for a true multimedia application.

    Because the ports angle to the side, you can eliminate horizontal cable managers, saving a bundle of time and money in labor and parts. The panels feature industry-standard keystone openings, which enable flush fitting of jacks and snap fittings. We do recommend inserting the ports before mounting.


    What’s included:
  • (1) multimedia patch panel
  • (4) 12–24 screws
  • (4) 10–32 screws
  • (1) rear cable bar
  • (24) cable ties
  • (2) side brackets
  • User’s manual

  • This product works with:
  • GigaStation2 Snap Fittings
  • Giga2 Style CAT3 Jacks
  • GigaBase2 CAT5e Jacks
  • GigaTrue2 CAT6 Jacks
  • USOC RJ-11 Jacks

  • Questions? Call our FREE Tech Support.


    Technical Specifications for SpaceGAIN 45° Angled-Port Side-Exit Multimedia Patch Panel, 24-Port:

    Size — Without optional rear cable support bar: 1.75"H x 19"W x 0.6"D (4.4 x 48.2 x 1.5 cm);
    With optional rear cable support bar: 1.75"H x 19"W x 5"D (4.4 x 48.2 x 12.7 cm)
    RoHS — Yes

    This product works with:
  • GigaStation2 Snap Fittings
  • Giga2 Style CAT3 Jacks
  • GigaBase2 CAT5e Jacks
  • GigaTrue2 CAT6 Jacks
  • USOC RJ-11 Jacks

  • Questions? Call our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for SpaceGAIN 45° Angled-Port Side-Exit Multimedia Patch Panel, 24-Port:

    Manuals

    • SpaceGAIN 45%XB0 Angled-Port Side-Exit Multimedia Patch Panel
      (Version 1)

    Pdf Drawings

    • SpaceGAIN 45%XB0 Angled-Port Side-Exit Multimedia Patch Panel (24-Port) PDF Drawing
      PDF Drawing for the JPMT1024-ANG

    Visio Stencils

    • Visio Stencil
      Stencil Drawings


    Connect your SpaceGAIN 45° Angled-Port Side-Exit Multimedia Patch Panel, 24-Port with:

    Accessory: FMT357-R3

    GigaStation2 Snap Fitting, LC, White

    GigaStation2 Snap Fitting, LC, White

    Accessory: FMT630-R2-25PAK

    GigaTrue2 CAT6 Jack, Universal Wiring, 25-Pack, Blue

    GigaTrue2 CAT6 Jacks, Universal Wiring, 25-Pack, Blue

    Accessory: FMT927-R2

    GigaBase2 CAT5e Jack, Universal Wiring, Red, Single-Pack

    GigaBase2 CAT5e Jack, Universal Wiring, Red, Single-Pack

    Accessory: FMT240

    USOC RJ-11 Jacks, Single-Pack

    USOC RJ-11 Jacks, Ivory, Single-Pack

    Accessory: FMT368-R2

    CAT3 Jack, Green, Single-Pack

    CAT3 Jack, Green, Single-Pack
