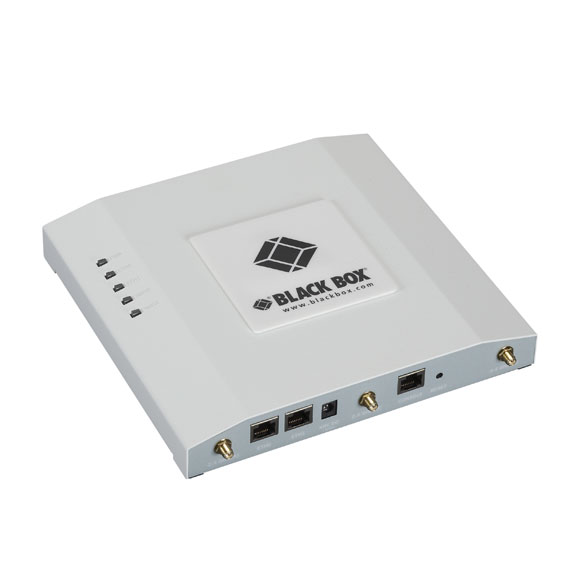

SmartPath Enterprise Wireless Access Point, Hardened (without Antennas), International

Finally—the speed, range, security, and flexibility to replace wired networks at an enterprise level.


Sold As is with no warranty.

Product Highlights

  • Fast, seamless throughput that rivals that of wired networks.
  • Optimized for real-time traffic, supports video and VoIP communications!
  • Advanced controller-less architecture improves performance, saves money.

  • Further Details

  • Incorporates legacy 802.11b/g wireless devices with no degradation in 802.11n performance.
  • Access points work together to improve throughput and redundancy.
  • Once plugged in, automatically joins the network and contacts the system's SmartPath Enterprise Management System (purchase separately).
  • Hardened design. Use in harsh indoor industrial areas, or in a sheltered outdoor location (separately sold outdoor kit required).
  • Features dual-core processor and uses two radios to provide an aggregate link speed of 300 Mbps.
  • Works with separately sold antenna kit and outdoor kit containing antennas, a NEMA rated housing, hardware, and a lightning arrestor.
  • Performs as part of a self-aware, self-healing mesh network with an easy-to-manage, distributed architecture.
  • Scalable from three access points all the way up to a wireless network of many access points.
  • Supports Gigabit Ethernet connections on dual 10-/100-/1000-Mbps RJ-45 ports.
  • Secure architecture with WLAN access enforced by per-user policies and SLAs.
  • Uses advanced WIDS and wireless VPN communications for secure, seamless roaming.
  • Smart PoE (802.3af/at) powered device for reduced power infrastructure needs.
  • Resilient. No bottlenecks, no single points of failure in the SmartPath network.
  • Depends on cooperative control protocols—expensive controllers not required.
  • Enables secure, fast Layer 2/Layer 3 roaming (L2/L3).

  • NOTE: This product is end of sale. Spares are available for previously deployed Smartpath systems.

    The Black Box SmartPath Enterprise Wireless System combines the stability, security, speed of a wired network with the versatility and adaptability of a wireless network.

    The system combines a distributed WLAN architecture and best-in-class management without large upfront or operating expenses. It uses less hardware and less cabling than similar solutions and can be implemented easily and expanded to meet the needs of your growing enterprise.

    Unlike ordinary wireless, in which access points function as accessories to the wired network, SmartPath is designed as an equal partner to the wired network, making it a practical, smart way to provide wireless at the enterprise level. Multiple SmartPath Enterprise Wireless Access Points work together to provide seamless, efficient throughput to end devices.

    The SmartPath Enterprise Wireless System is ideal for:
    • Distributed enterprise applications
    • Healthcare
    • Manufacturing
    • Retail
    • Education
    • Or anywhere you need secure, high-performance, easy-to-manage WLAN connectivity.

    The SmartPath Enterprise Wireless Access Point, Hardened (without Antennas) is a dual-processor unit uses two integrated radios to provide an aggregate link speed of 300 Mbps. It includes a wallmount bracket but can be ordered with an optional bracket (LWN600A-BKT) for mounting above ceiling tile in a drop ceiling, too.

    Order the antennas separately. If you order the SmartPath 602HA Antenna Kit (LWN600A-ANTK), you get six (three dual-radio) antennas that attach to the six RP-SMA connectors on the sides of the access point unit. These antennas suit hardened/high-temperature indoor applications.

    We also include antennas in our SmartPath 602HA Outdoor Kit (LWN600A-OUT), but instead of six antennas, this kit has four dual-band antennas that plug into the N-Type connectors on one side of the LWN602HA. To protect the access point from the elements, the LWN600A-OUT kit includes a NEMA-rated enclosure for mounting on a pole or flat surface, a pole bracket, other mounting hardware, and a lightning protection device.

    (Don't need a hardened version? See our indoor version, the LWN602AE. This standard, single-core processor access point has two integrated radios and two antennas per a radio for aggregate link speeds up to 300 Mbps.)

    Why it's better than ordinary access point technology.
    Early wired networks were built around unmanaged hubs, which indiscriminately sent packets to all connected nodes. Now, networks are built around smart switches, which actively sort packets based on MAC address (Layer 2) or IP address (Layer 3), then send the packets only to where they're needed—either to an attached node or to another switch or router for forwarding.

    Today's average wireless access point functions much like a legacy network hub, acting only as an interface to the wired network, without making any decisions about where to send packets.

    Contrast this with the SmartPath Enterprise Wireless Access Point, which works more like a high-end switch, sorting packets and sending them to where they're needed—broadcasting wirelessly to a nearby laptop, passing on to another access point in a wireless mesh arrangement, or through the wired network to another endpoint.

    The SmartPath system can even track a user moving from one access point to another, providing the most efficient throughput.

    The SmartPath Wireless Access Point contains the features you'd expect from an enterprise-grade wireless product, including Layer 2 switching, VPN tunnels, and QoS support. Plus, it has robust security and policy enforcement, including firewall and NAC functionality, as well as built-in RADIUS server and LDAP/Active Directory integration.

    Advanced circuitry and algorithms allocate air time efficiently, enabling older 802.11a/b/g devices to share the network without slowing down 802.11n connectivity.

    The SmartPath system also eliminates the need for expensive controllers in your enterprise. Removing controllers from the network eliminates the bandwidth bottlenecks, latency, and jitter that result from backhauling traffic through a controller. This, in turn, enables you to create an ideal platform for demanding applications, such as voice over wireless LAN (VoWLAN) deployments.

    It's easy to set up, power, and manage.
    SmartPath Enterprise Wireless System Access Points work as PoE devices, so you can power them through Ethernet or plug them into a nearby wall outlet (with the optional U.K. or European power kit). The outdoor version shown here is a Smart PoE type of access point (supporting both 802.3at and 802.3af PoE standards).

    Once plugged in, each access point automatically joins the network and contacts the (separately sold) SmartPath Enterprise Management System (EMS), which is available as a cloud-based service or a standalone appliance. This EMS platform enables you to manage the entire wireless system from a single, user-friendly GUI console.

    Use the EMS GUI for monitoring, upgrades, troubleshooting, and more. You also use it to configure Active Directory for per-user policy enforcement. Supporting multiple SSIDs, the system enables you to set up wireless network access by user. Keep data secure by giving guests access to the Internet while allowing only employees to connect to your entire enterprise network.

    What's more, the EMS provides centralized control without being actively involved in passing traffic or making forwarding decisions. The combination of autonomous access points with centrally based management provides maximum administrative control without creating the traffic bottlenecks seen in some controller-based wireless solutions.

    The cloud-based EMS service is hosted within secure Tier IV SAS 70 Type II data centers, with scheduled backups and disaster recovery capabilities. The on-line management makes it easy to start small and add to your wireless network as you grow.

    For larger wireless networks, you may find it more cost effective to purchase the EMS Appliance. It supports up to 2000 access points and is typically mounted in the data center. Unlike the cloud-based service, which requires you to purchase a 1- or 3-year license for each access point, the appliance's access point licenses are perpetual.

    Authentication 802.1X for WEP, WPA, WPA2; private preshared keys (PSK), unique PSK for each user within (1) SSID; RADIUS, LDAP support; authentication to Active Directory™ with local credentials caching; multiple RADIUS server support (per AP, per SSID); MAC-based RADIUS authentication; (100) associated clients per radio
    Security Trusted Platform Module (TPM); WPA™ and WPA2™, 802.11i, WEP, 802.1X, PSK; VLANs, QoS, mobility policies, and security policies for each network user entrant; AES-CCMP, TKIP, RC4 (WEP only) encryption; time-of-day and day-of-week access control and SSID enabling; on-board stateful-inspection firewall policy enforcement with session state sync with neighbors; ALG support for SIP, DNS, TFTP, FTP; destination-based MAC firewall support; tunneled guest networks; cluster-wide client isolation; WPA-TKIP vulnerability protection
    Link Rates (Aggregate) 300 Mbps
    Packets per Second Up to 28K pps
    CE Approval Yes
    RoHS Yes
    Environmental Operating temperature: -4 to +130° F (-20 to +55° C);
    Operating humidity: Up to 95% noncondensing
    Connectors (2) RJ-45 (10-/100-/1000-Mbps); (6) antenna connectors for mounting antennas (separately available)
    Power From 802.3af/at Smart PoE; or optionally 100-240 VAC, 50-60 Hz, autosensing, from the U.K. or European power kit
    Size 1.25"H x 8.5"W x 8"D (3.2 x 21.5 x 20.3 cm)
    Weight 3 lb. (1.4 kg)

    NOTE: This product is end of sale. Spares are available for previously deployed Smartpath systems.

    For indoor applications, also order an antenna kit for each of your access points:
  • SmartPath 602HA Antenna Kit (LWN600A-ANTK)
    For outdoor applications, you'll need an outdoor kit (includes antennas, a NEMA rated enclosure, mounting hardware, a lightning arrestor, and a power supply):
  • SmartPath 602HA Outdoor Kit (LWN600A-OUT)
    The access point comes with a wallmount bracket. However, to mount the LWN602HAE above a ceiling tile in a drop ceiling, order:
  • SmartPath 602HA Mounting Bracket (LWN600A-BKT)
    This product also works with:
  • SmartPath Enterprise Management System (EMS), Cloud-Based, 1-Year License per Access Point (LWN600CM-1)
  • SmartPath Enterprise Management System (EMS), Cloud-Based, 3-Year License per Access Point (LWN600CM-3)
  • SmartPath Enterprise Management System (EMS), Appliance (for Up to 2000 Access Points) (LWN600MA)
  • SmartPath Enterprise Management System (EMS) Appliance License (Perpetual per Access Point) (LWN600MLA-1)
  • SmartPath Enterprise Wireless 30-W Power Kit with Cord (LWN600PS-UK or LWN600PS-EU)
  • Smart Path Enterprise Wireless Access Point, Indoor (with Integrated Antennas) (LWN602AE)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

  • Manuals

    • SmartPath Enterprise Wireless Access Point, Indoor Manual
      Manual for LWN602A, LWN600VMA, LWN602AE, LWN600CM-1, LWN602HA, LWN600CM-3 and LWN602HAE (Version 3)

    Quick Start Guides

    • SmartPath Enterprise Wireless Access Point Quick Start Guide
      Quick Start Guide for the LWN602HA and LWN602HAE. (Version 2)
