Networking > Wireless

click photo to enlarge

LWN600A-OUT

Photo may show similar product

Other views

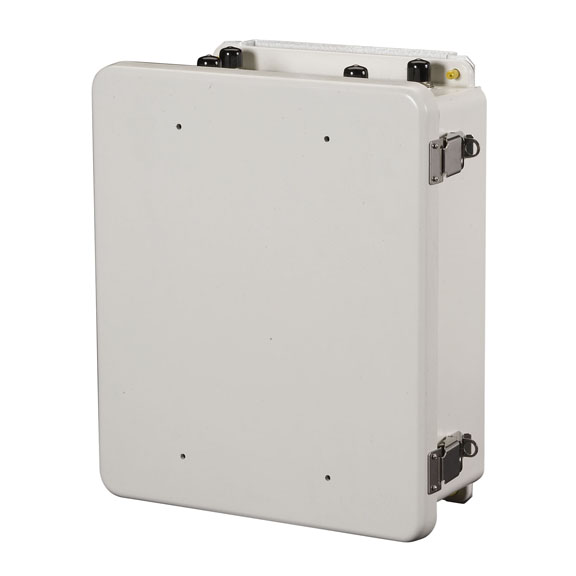

SmartPath 602HA Outdoor Kit

What you need to mount your SmartPath LWN602HA/AE access point outdoors.

LWN600A-OUT

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Includes everything you need to mount the access point in a sheltered outdoor setting.
  • Kit’s NEMA 4X and 6P rated enclosure assembly can be mounted to a pole or on a flat surface.
  • Comes with dual-band omnidirectional antennas for 2.4-/5-GHz communications.

  • Description

    SmartPath 602HA Outdoor Kit


    Quick Facts

  • Includes everything you need to mount the access point in a sheltered outdoor setting.
  • Kit’s NEMA 4X and 6P rated enclosure assembly can be mounted to a pole or on a flat surface.
  • Comes with dual-band omnidirectional antennas for 2.4-/5-GHz communications.

  • Further Details

  • Enables you to mount the LWN602HA or LWN602HAE within the enclosure on a variety of structures.
  • For optimum radio transmission, enclosure features an adjustable vertical orientation.
  • Included pole bracket fits a pipe with a 1" to 3.5" (2.5 cm to 8.9 cm) diameter.
  • Ships with a device that protects the LWN602HA or LWN602HAE from electrical surges on the Ethernet line.
  • Temperature tolerance of -13 to +140º F (-25 to +60º C).
  • For security, enclosure has two padlockable latches.

    What’s included:
    • (1) NEMA rated outdoor accessory assembly, which includes:
    – (1) outdoor enclosure
    – (1) pole bracket
    – (1) mounting plate
    – (2) clamps
    – (1) 1-ft. (0.3-m) unshielded CAT5 Ethernet cable
    –  Hardware including RP-SMA terminators, screws, nuts, washers, and lock washers
    • (4) dual-band antennas (which plug into the N-Type connectors on the LWN602HA or LWN602HAE)
    • (1) Ethernet lightning protection device (passive PoE injector)
    • (1) AC power supply

    NOTE: The AC power supply included in this kit is the same as the power supply included in the SmartPath 30-W Power Kit with Cord.

    WARNING: To install the access point and outdoor kit safely, you must be a qualified installation professional, licensed or certified in accordance with local regulations.


  • Technical Specifications for SmartPath 602HA Outdoor Kit:

    CE Approval — Yes
    RoHS — Yes
    Operating Temperature — -13 to +140º F (-25 to +60º C)
    Wind Survivability — >165 mph (266 kph)
    Enclosure Size — Without antennas installed on LWN602HA/LWN602HAE: 14.25"H x 11.5"W x 5.9"D (36.2 x 29.2 x 15 cm);
    With brackets installed: 14.25"H x 11.5"W x 8.25"D (36.2 x 29.2 x 21 cm)
    Enclosure Weight — Without LWN602HA/LWN602HAE installed: 12 lb (5.4 kg);
    With LWN602HA/LWN602HAE installed: 15 lb (6.8 kg)
    This product works with:
  • SmartPath Enterprise Wireless Access Point, Hardened (without Antennas) (LWN602HA or LWN602HAE)
    Questions? Contact our FREE Tech Support.

    NOTE: You will also need (1) shielded CAT5 cable rated for outdoor use and no longer than 140 feet (42.6 m). This cable provides the enclosure-mounted access point with a network connection and PoE power. To order, contact Black Box Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for SmartPath 602HA Outdoor Kit:


    Connect your SmartPath 602HA Outdoor Kit with:

    Accessory: LWN602HA

    SmartPath Enterprise Wireless Access Point, Hardened (without Antennas), U.S.

    SmartPath Enterprise Wireless Access Point, Hardened (without Antennas), U.S.

    Accessory: LWN602HAE

    SmartPath Enterprise Wireless Access Point, Hardened (without Antennas), International

    SmartPath Enterprise Wireless Access Point, Hardened (without Antennas), International
