Datacom > Converters

click photo to enlarge

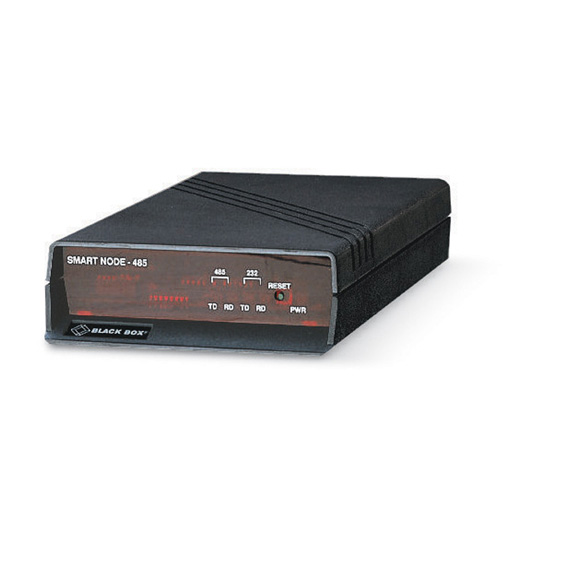

IC150A

Photo may show similar product

Other views

SmartNode 485, Standalone

All the benefits of multidrop RS-485 with RS-232 devices.

IC150A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Build your own RS-485 industrial LAN with your RS-232 equipment.
  • The 8 KB buffer means no data loss.

  • Description

    SmartNode 485, Standalone


    Quick Facts

  • Build your own RS-485 industrial LAN with your RS-232 equipment.
  • The 8 KB buffer means no data loss.

  • Further Details

    The SmartNode 485 enables you to address an RS-232 printer, terminal, scales, lathe, reader, or other device as an intelligent RS-485 peripheral for use in industrial serial applications.

    The SmartNode 485 responds to address polls, holds information until send time, and even converts data rates and word structures.

    Each port can be set for different speeds and word structures. Two-wire RS-485 support is included with the product.

    Standalone and card versions are available. For the card version, you’ll need a 12-Card Rack (see “Related Products” in the previous screen to order).

    In applications where you require external conversion, add our optional RS-232RS-485/422 Converter Plus (IC108A or IC109A-R3). And if you’re at your distance limit, specify RS-485 Repeaters (IC155A or IC158A).

    This product works with:
  • 12-Card Rack for SmartNode 485 Card (RM010-SN)
  • RS-232 <–> RS485/422 Converter Plus (IC108A, IC109A-R3)
  • RS-485 Repeaters (IC155A, IC158A)
  • Fiber Optic Multipoint Line Driver (ME540A-ST)
  • 9-Pin (DB9 Male) to Modem Cable (DB25 Male) (EHM024-0010)
  • 9-Pin (DB9 Male) to AT® Cable (DB9 Female) (EHM025-0010)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for SmartNode 485, Standalone:

    Leads Supported — RS-232: DTR, DSR, CD, TD, RD, RTS, CTS, GND;
    RS-485: T+, T-, R+, R-
    Operation — RS-232: Half- or full-duplex;
    RS-485: 4-wire half- or full-duplex, 2-wire half-duplex
    Protocol — Async only
    Speed — 45.5 bps to 38.4 kbps
    CE Approval — Yes
    Interface — RS-232 DTE, RS-485
    Connectors — (1) DB9 F, (1) 4-position terminal block
    Power — 115 VAC, 60 Hz (230-VAC, 50-Hz version on request)
    Size — 1.8"H x 5.5"W x 8.5"D (4.6 x 14 x 21.6 cm)
    Weight — 2 lb. (0.9 kg)
    This product works with:
  • 12-Card Rack for SmartNode 485 Card (RM010-SN)
  • RS-232 <–> RS485/422 Converter Plus (IC108A, IC109A-R3)
  • RS-485 Repeaters (IC155A, IC158A)
  • Fiber Optic Multipoint Line Driver (ME540A-ST)
  • 9-Pin (DB9 Male) to Modem Cable (DB25 Male) (EHM024-0010)
  • 9-Pin (DB9 Male) to AT® Cable (DB9 Female) (EHM025-0010)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
