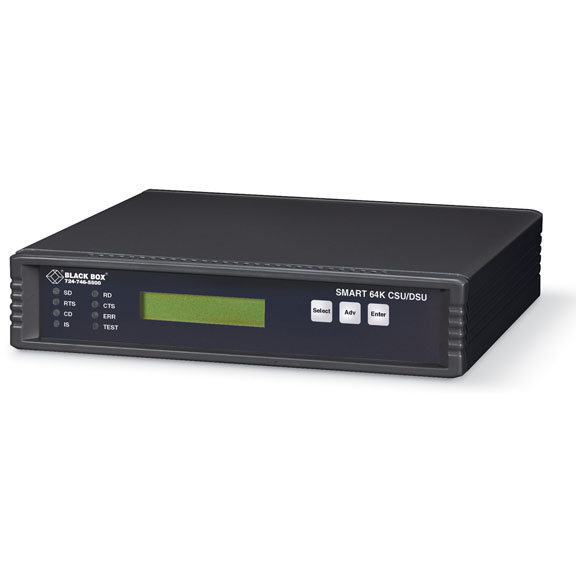

MT190A-D48

Photo may show similar product

Other views

Smart 64K CSU/DSUs, 24–48-VDC

Get in the loop for quick and complete line analysis.

MT190A-D48

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Need comprehensive, comprehensible line analysis? Get a Smart 64K CSU/DSU.
  • Built-in test-pattern generator quickly tests network faults with BERT functionality.


  • Description

    Smart 64K CSU/DSU, 24–48-VDC


    Quick Facts

  • Need comprehensive, comprehensible line analysis? Get a Smart 64K CSU/DSU.
  • Built-in test-pattern generator quickly tests network faults with BERT functionality.

  • Further Details

  • Easy-to-read, front-panel LCD provides "plain English" readouts of line conditions.
  • DDS and sync DTE data rates up to 64 kbps! Async DTE data rates to 57.6 kbps!
  • VDC models can operate at up to 158° F (70° C).
  • Models available for 120 VAC, 24–48 VDC, and 130 HVDC!
  • Error LEDs indicate line impairments.
  • Test and report problems to your service provider in minutes!

    Need comprehensive, comprehensible line analysis? Get a Smart 64K CSU/DSU.

    Error LEDs display line errors as they occur. Then a Digital Signal Processor diagnoses the problems and displays the results on the front-panel LCD, giving you clear, easy-to-understand answers about line attenuation, background noise, impulse noise, bipolar violations, looped conditions, and DDS operating mode. Network optimization, management information, data quality, and seal-current reversal keep your service provider responsive. And a built-in telco line tester enables you to test and report line impairments accurately in just minutes.

    These CSU/DSUs transmit full-packet data over standard DDS lines at async rates up to 57.6 kbps or sync rates up to 64 kbps. Plus, you get real-time statistics on the data port, DDS line, and Frame Relay—and management information on Frame Relay packets as a percentage of utilization.

    You get outstanding performance—even on DDS circuits that may be out of spec!

    Two models are available. The MT190A includes a 120-VAC, 60-Hz external power supply. For applications requiring DC power or tolerance to high temperatures, choose our MT190A-D48. Our 24–48-VDC model is ideal for telcos. Both units can operate in temperatures up to 158° F (70º C).

    When it comes to line analysis, you have to get smart—with our Smart 64K CSU/DSUs.

  • Technical Specifications for Smart 64K CSU/DSUs, 24–48-VDC:

    DDS Data Rate 2400, 4800, and 9600 bps; 19.2, 56, and 64 kbps
    Diagnostics Operational line testing: In spec/out of spec;
    Parametric testing (± -0.5 dBm): Line attenuation, background noise, impulse noise
    DTE Data Rate Async: 1200, 2400, 4800, and 9600 bps; 19.2, 38.4, 56, and 57.6 kbps;
    Sync: 300, 600, 1200, 2400, and 4800 bps; 14.4, 19.2, 28.8, 38.4, 56, and 64 kbps
    Line Type DDS
    Loopback Digital loop, local loop, remote loop, CSU, DSU
    Protocol Sync or async
    Connectors Line: (1) 4-wire RJ-48S;
    Data ports: (1) DB25 F (DCE), (1) M/34 F (DCE)
    Power MT190A: 120-VAC, 60-Hz, 30-W external transformer;
    MT190A-D48: 24–48-VDC external transformer
    Size 1.8"H x 8.6"W x 8.4"D (4.6 x 21.8 x 21.3 cm)
    Weight 2.6 lb. (1.2 kg)

    This product works with:
    • RS-232 Cable, 25-Conductor, Male/Male (ECM25C)
    • V.35 Interface Cable, Male/Male (EYN450-MM)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
