Datacom > Modems & CSUs

click photo to enlarge

Other views

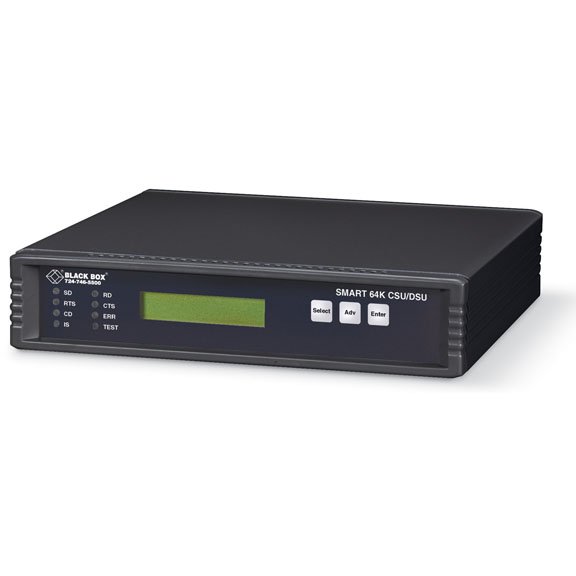

Smart 64K CSU/DSU, 120-VAC

Get in the loop for quick and complete line analysis.

MT190A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

Built-in test-pattern generator quickly tests network faults with BERT functionality.

Description

Smart 64K CSU/DSU, 120-VAC

Quick Facts

Built-in test-pattern generator quickly tests network faults with BERT functionality.

Further Details

Easy-to-read, front-panel LCD provides “plain English” readouts of line conditions.

DDS and sync DTE data rates up to 64 kbps! Async DTE data rates to 57.6 kbps!

VDC models can operate at up to 158° F (70° C).

Models available for 120 VAC, 24–48 VDC, and 130 HVDC!

Error LEDs indicate line impairments.

Test and report problems to your service provider in minutes!

Need comprehensive, comprehensible line analysis? Get a Smart 64K CSU/DSU.

Error LEDs display line errors as they occur. Then a Digital Signal Processor diagnoses the problems and displays the results on the front-panel LCD, giving you clear, easy-to-understand answers about line attenuation, background noise, impulse noise, bipolar violations, looped conditions, and DDS operating mode. Network optimization, management information, data quality, and seal-current reversal keep your service provider responsive. And a built-in telco line tester enables you to test and report line impairments accurately in just minutes.

These CSU/DSUs transmit full-packet data over standard DDS lines at async rates up to 57.6 kbps or sync rates up to 64 kbps. Plus, you get real-time statistics on the data port, DDS line, and Frame Relay—and management information on Frame Relay packets as a percentage of utilization.

You get outstanding performance—even on DDS circuits that may be out of spec!

Two models are available. The MT190A includes a 120-VAC, 60-Hz external power supply. For applications requiring DC power or tolerance to high temperatures, choose our MT190A-D48. Our 24–48-VDC model is ideal for telcos. Both units can operate in temperatures up to 158° F (70º C).

When it comes to line analysis, you have to get smart—with our Smart 64K CSU/DSUs.

These products work with:
• RS-232 Cable, 25-Conductor, Male/Male (ECM25C)
• V.35 Interface Cable, Male/Male (EYN450-MM)
Questions? Contact our FREE Tech Support.

Technical Specifications for Smart 64K CSU/DSU, 120-VAC:

DDS Data Rate — 2400, 4800, and 9600 bps; 19.2, 56, and 64 kbps
Diagnostics — Operational line testing: In spec/out of spec;
Parametric testing (± -0.5 dBm): Line attenuation, background noise, impulse noise
DTE Data Rate — Async: 1200, 2400, 4800, and 9600 bps; 19.2, 38.4, 56, and 57.6 kbps;
Sync: 300, 600, 1200, 2400, and 4800 bps; 14.4, 19.2, 28.8, 38.4, 56, and 64 kbps
Line Type — DDS
Loopback — Digital loop, local loop, remote loop, CSU, DSU
Protocol — Sync or async
Connectors — Line: (1) 4-wire RJ-48S;
Data ports: (1) DB25 F (DCE), (1) M/34 F (DCE)
Power — MT190A: 120-VAC, 60-Hz, 30-W external transformer;
MT190A-D48: 24–48-VDC external transformer
Size — 1.8"H x 8.6"W x 8.4"D (4.6 x 21.8 x 21.3 cm)
Weight — 2.6 lb. (1.2 kg)

These products work with:
• RS-232 Cable, 25-Conductor, Male/Male (ECM25C)
• V.35 Interface Cable, Male/Male (EYN450-MM)
Questions? Contact our FREE Tech Support.

NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
