Datacom > Extenders & Line Drivers

click photo to enlarge

IC244A-R2

Photo may show similar product

Other views

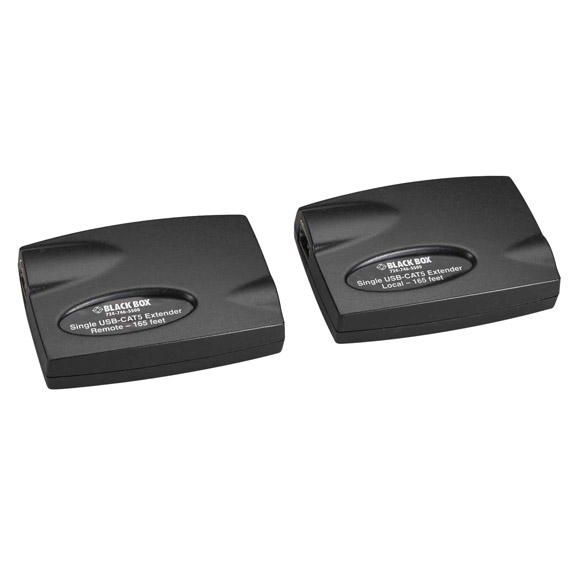

Single USB to CAT5 Extender, 50 m

Extend your USB range by 50 meters and supply power to one remote USB device.

IC244A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Transmits power and data to one remote USB device over the same CAT5 cable.
  • Extends your USB range up to 50 meters (164 feet) over CAT5 cable.

  • Description

    Single USB to CAT5 Extender, 50 m


    Quick Facts

  • Transmits power and data to one remote USB device over the same CAT5 cable.
  • Extends your USB range up to 50 meters (164 feet) over CAT5 cable.

  • Further Details

  • Delivers enough power to the remote unit to support most USB devices.
  • Supports 12- and 1.5-Mbps USB devices.
  • Connects up to three hubs in series.
  • Contains an internal USB hub.
  • Includes (1) local unit and (1) remote unit.


  • Technical Specifications for Single USB to CAT5 Extender, 50 m:

    Operating Temperature — 39 to 104° F (4 to 40° C)
    Standards — USB 1.1
    CE Approval — Yes
    Connectors — Local: (1) USB Type B, (1) RJ-45;
    Remote: (1) USB Type A, (1) RJ-45
    Power — From the USB bus; maximum 300-mA power to remote unit when local unit is supplied with 500 mA; maximum 600-mA power to remote unit when local unit is supplied with 1000 mA
    Size — Local and remote units: 1.2"H x 4"W x 2.8"D (3 x 10.2 x 7.1 cm) each
    Weight — Local and remote units: 0.2 lb. (0.1 kg) each
    NOTE: Each additional hub connected in series to the IC244A-R2 reduces the USB to CAT5 Extenders’ maximum range by 10 meters (32.8 feet).

    This product works with:
  • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
