EFN094-005M

Photo may show similar product

Other views

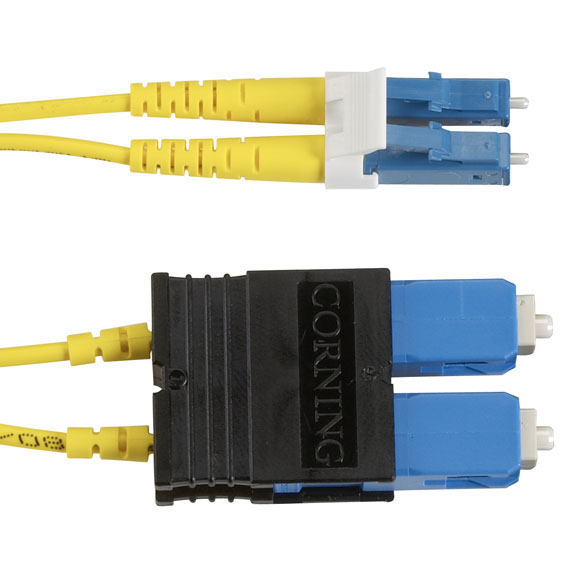

Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–SC, PVC, 5-m (16.4-ft.)

Find your LC single-mode fiber optic cables at Black Box!

EFN094-005M

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Duplex polarity.
  • Small footprint compared to other fiber optic terminations.
  • Guaranteed for life!


  • Description

    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–SC, PVC, 5-m (16.4-ft.)


    Quick Facts

  • Duplex polarity.
  • Small footprint compared to other fiber optic terminations.
  • Guaranteed for life!

  • Further Details

  • These special connectors are almost half the size of standard SC and ST® fiber optic terminations.
  • The two buffered fibers are individually wrapped with aramid yarn and overjacketed in a figure-8 design.


  • Technical Specifications for Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–SC, PVC, 5-m (16.4-ft.):

    Core Diameter 8.5 µm
    Cladding Diameter 125 µm
    Ferrule Ceramic
    Housing Composite
    Insertion Loss 0.2 dB typical
    Return Loss ≥55 typical
    Wavelength 1310 nm, 1550 nm


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–SC, PVC, 5-m (16.4-ft.) with:

    Accessory: EFN5009-001M

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cables, ST–ST, PVC, 1-m (3.2-ft.)

    Single-Mode, 8.3-Micron Duplex Fiber Optic Cables, ST–ST, PVC, 1-m (3.2-ft.)

    Double Diamond Warranty

    Extended LIFETIME Warranty Available


    Protect your purchase with an additional LIFETIME Double Diamond™ warranty!
    Cost: $0.00

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–SC, PVC, 5-m (16.4-ft.) comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–LC, PVC, 2-m (6.5-ft.) EFN092-002M $84.95

    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–LC, PVC, 5-m (16.4-ft.) EFN092-005M $90.95

    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–ST®, PVC, 2-m (6.5-ft.) EFN093-002M $107.95

    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–ST®, PVC, 3-m (9.8-ft.) EFN093-003M $112.95

    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–ST®, PVC, 5-m (16.4-ft.) EFN093-005M $117.95

    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–ST®, PVC, 10-m (32.8-ft) EFN093-010M $132.95

    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–SC, PVC, 1-m (3.2-ft.) EFN094-001M $109.95

    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–SC, PVC, 2-m (6.5-ft.) EFN094-002M $112.95

    Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC–SC, PVC, 10-m (32.8-ft) EFN094-010M $139.95
