Cables > Fiber - Single-Mode

click photo to enlarge

EXP012A-0500

Photo may show similar product

Other views

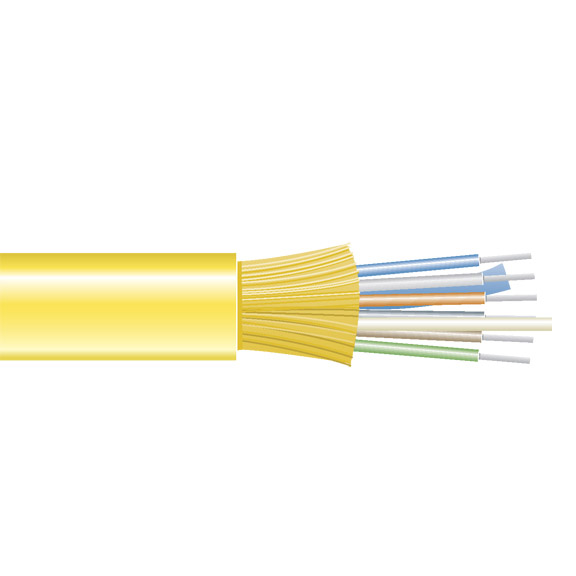

Single-Mode, 8.5-Micron, Distribution-Style Fiber Optic Bulk Cable, Plenum, 12-Fiber, 500-ft. (152.4-m) Reel

The single-mode solution for long-distance data transmissions.

EXP012A-0500


Lifetime Warranty

Product Highlights

  • The ideal cable for routing through riser shafts, air plenums, and wiring closets.
  • For indoor use only.
  • Provides increased transmission distance.
  • Cable is 8.5-/125-µm single-mode.

  • Description

    Single-Mode, 8.5-Micron, Distribution-Style FO Bulk Cable, Plenum, 12-Fiber, 500-ft. (152.4-m) Reel


    Quick Facts

  • The ideal cable for routing through riser shafts, air plenums, and wiring closets.
  • For indoor use only.
  • Provides increased transmission distance.
  • Cable is 8.5-/125-µm single-mode.

  • Further Details

  • Tight-buffered, single jacket construction consists of: outer jacket, binder, subunit jacket (subunit consists of 12 fibers), subunit aramid, strength member, and a ripcord.
  • Cable features an easily-strippable 900-µm coating for easier handling.
  • Can be used with different types of light sources.
  • Fan cables out to send fibers to different locations.


  • Technical Specifications for Single-Mode, 8.5-Micron, Distribution-Style Fiber Optic Bulk Cable, Plenum, 12-Fiber, 500-ft. (152.4-m) Reel:

    Attenuation (Maximum) — 0.70/0.70 dB/km at 1310/1550 nm
    Bend Radius — 4.6" (11.7 cm) installation, 3.5" (8.9 cm) operating
    Cladding Diameter — 125 µm
    Core Diameter — 8.5 µm
    Fiber Type — Single-mode, 8.5/125 µm
    Outside Diameter — 0.230" (5.84 mm)
    Pulling Strength — 1800 Newtons/405 lb.
    Standards — UL® 910, CSA FT6;
    IEEE 802.3 for 1000BASE-SX/LX, 100BASE-FX, 10BASE-FL, ATM 155, ATM 622, ATM 1.2/2.4 Gbps, TIA 492AAAC 10-Gigabit Ethernet, Fibre Channel FC-PH, IEEE 802.5, FDDI, ICEA 83-596, EIA/TIA-568-B
    Temperature — Operating: -4 to +176º F (-20 to +80º C);
    Storage: -40 to +176º F (-40 to +80º C);
    Installation: +32 to +122º F (0 to +50º C)
    Tension (Installed) — 600 Newtons/135 lb.
    Vertical Rise — 4909 ft. (1496 m)
    Weight — 33 kg/km


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Single-Mode, 8.5-Micron, Distribution-Style Fiber Optic Bulk Cable, Plenum, 12-Fiber, 500-ft. (152.4-m) Reel:


    Connect your Single-Mode, 8.5-Micron, Distribution-Style Fiber Optic Bulk Cable, Plenum, 12-Fiber, 500-ft. (152.4-m) Reel with:

    Accessory: EFN5009

    ST–ST, PVC, Custom Lengths

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, ST–ST, PVC, Custom Lengths

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.
